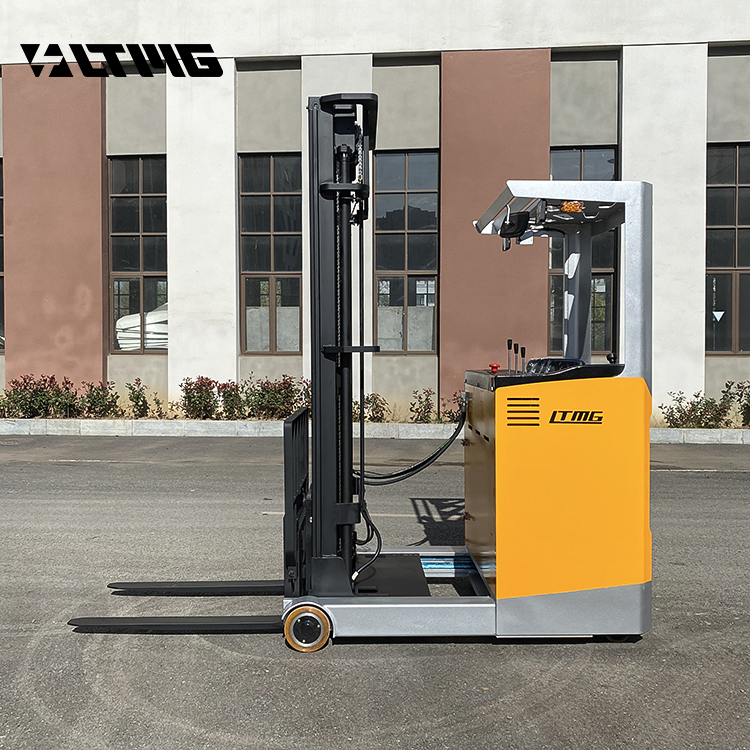

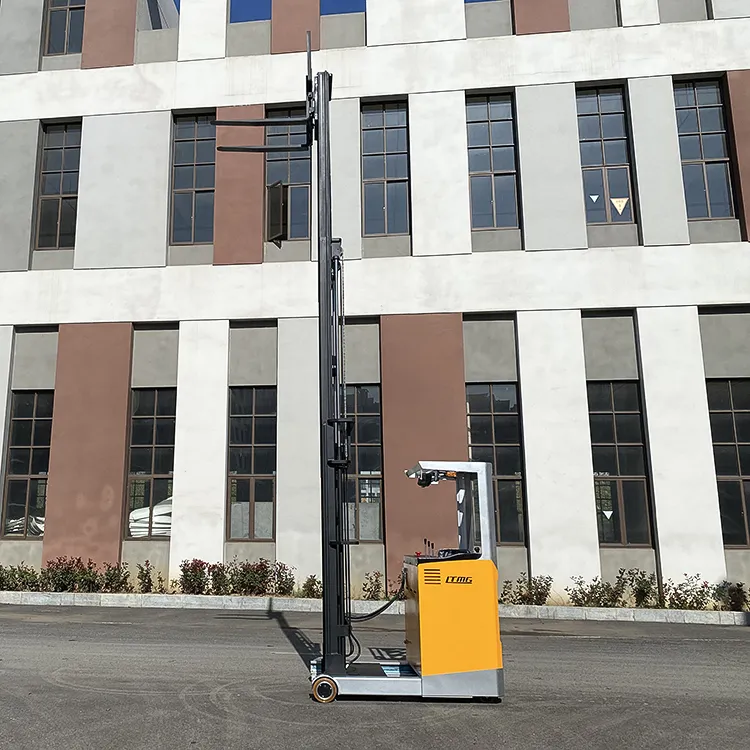

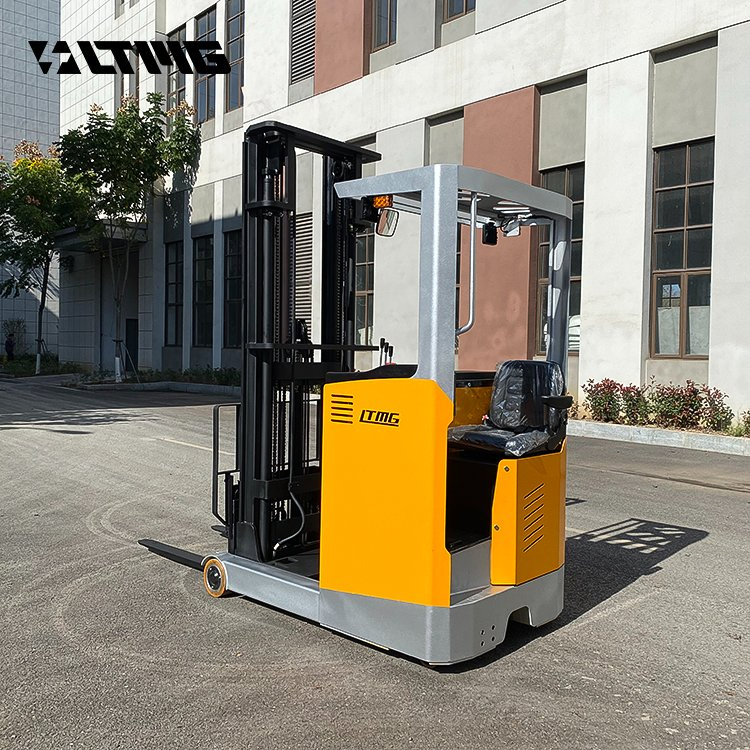

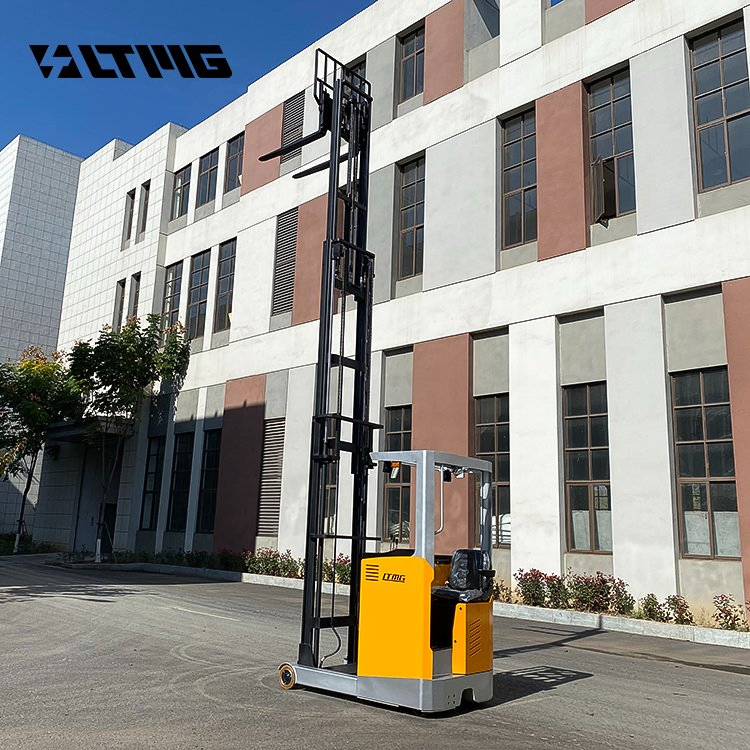

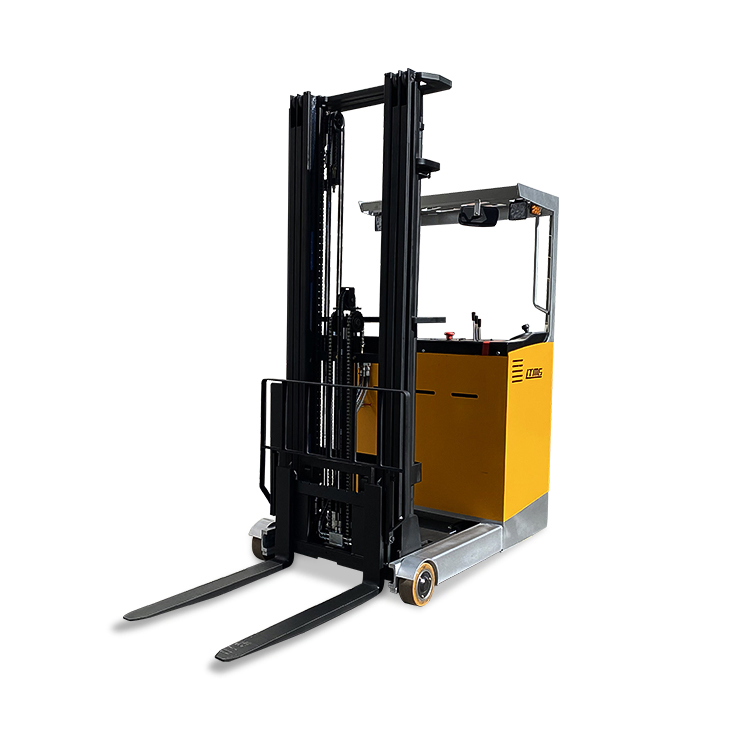

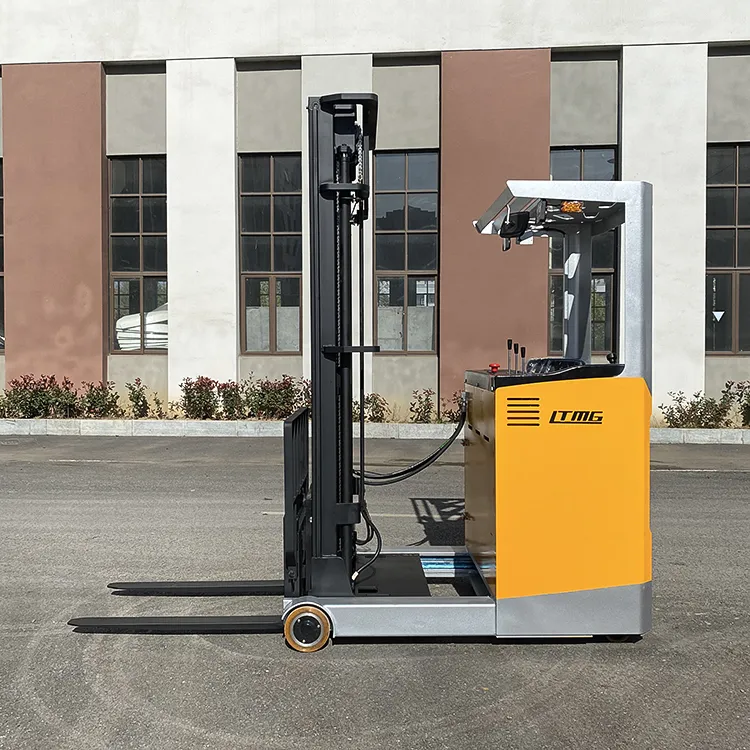

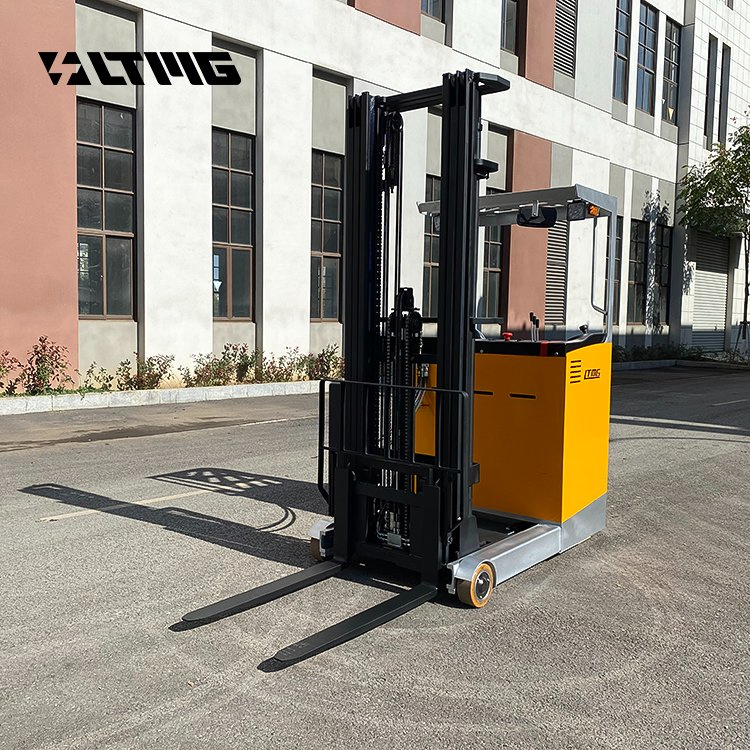

Seated Type 1500Kg (1.5 Ton) Forklift Truck with Lead Acid Battery
| FRB15 Electric Reach Forklift Specs | |
|---|---|
| Rated Capacity (KG) | 1500 |
| Max. Lifting Height (MM) | 4000 |
| Min. Turning Radius (MM) | 1625 |
| Min. Stacking Aisle (1000*1000 Pallet) | 2622 mm |
| Max Travel Speed (laden/unladen) | 7.5 / 8.5 km/h |
| Lifting Speed (laden/unladen) | 117 / 243 mm/s |
| Fork Dimensions (L/W/T) | 1070 * 100 * 35 mm |
| Overall Dimension (L*W*H) | 2266 * 1098 * 2580 mm |
| Max. Gradeability | 10% |
| Wheel Type | Polyurethane Solid Tyre |
| Driving Motor | 5.5 KW (AC) |
| Lifting Motor | 6.3 KW |
Professional after-sale service is available worldwide. All products are supplied with a quality warranty period of one year or 2000 working hours (whichever occurs first).
