Basic Information
Product NameVacuum Lifter Robot
Loading Capacity300kg-800kg
Lifting Height3500mm-4500mm
Power SourceDC 24V Battery
Cup Quantity4-8 PCS
Rotation360 Degree Manual/Auto
MaterialHigh-Strength Steel
UsageGlass and Board Lifting
Product Description

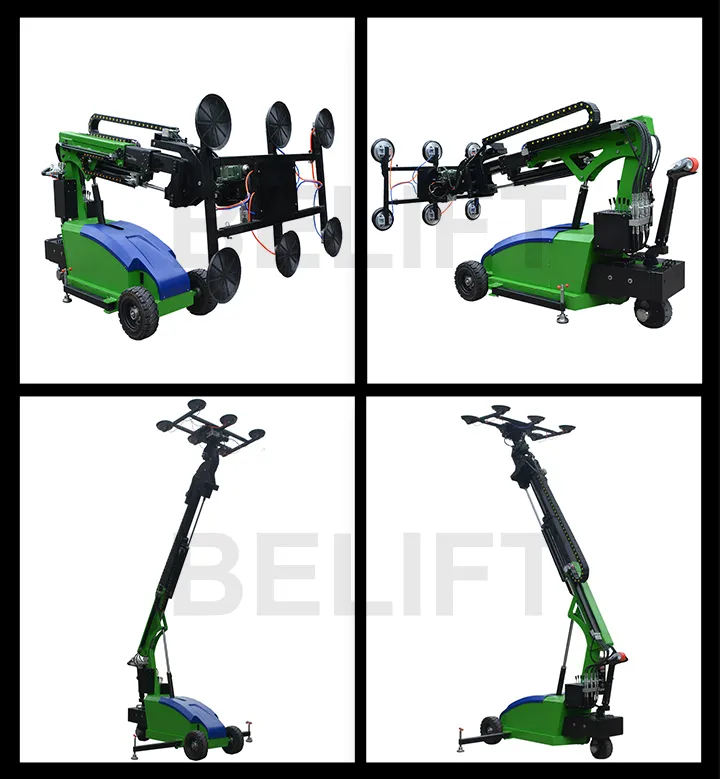

Electric Glazing Robot LD Series is a fast, safe, and convenient automatic equipment designed for modern industrial lifting needs. Utilizing the principle of vacuum adsorption with a high-performance vacuum pump, it generates a secure hold at the suction cup end. This allows the machine to firmly grasp various workpieces such as glass, iron plates, and marble granite slabs.

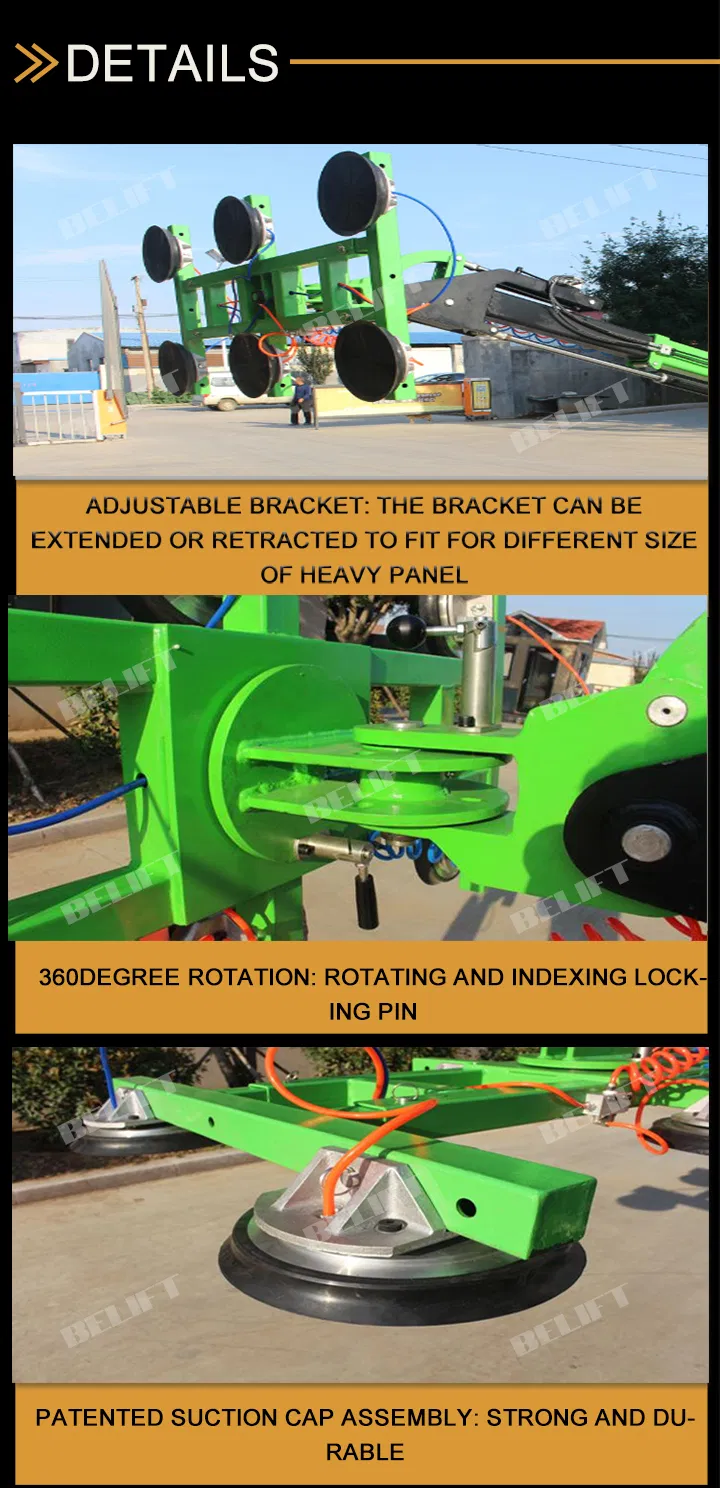

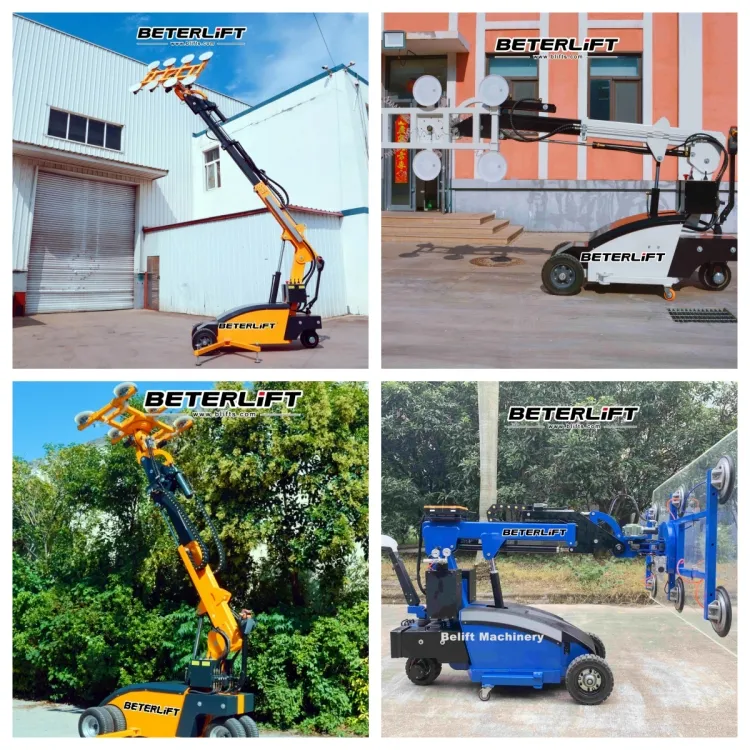

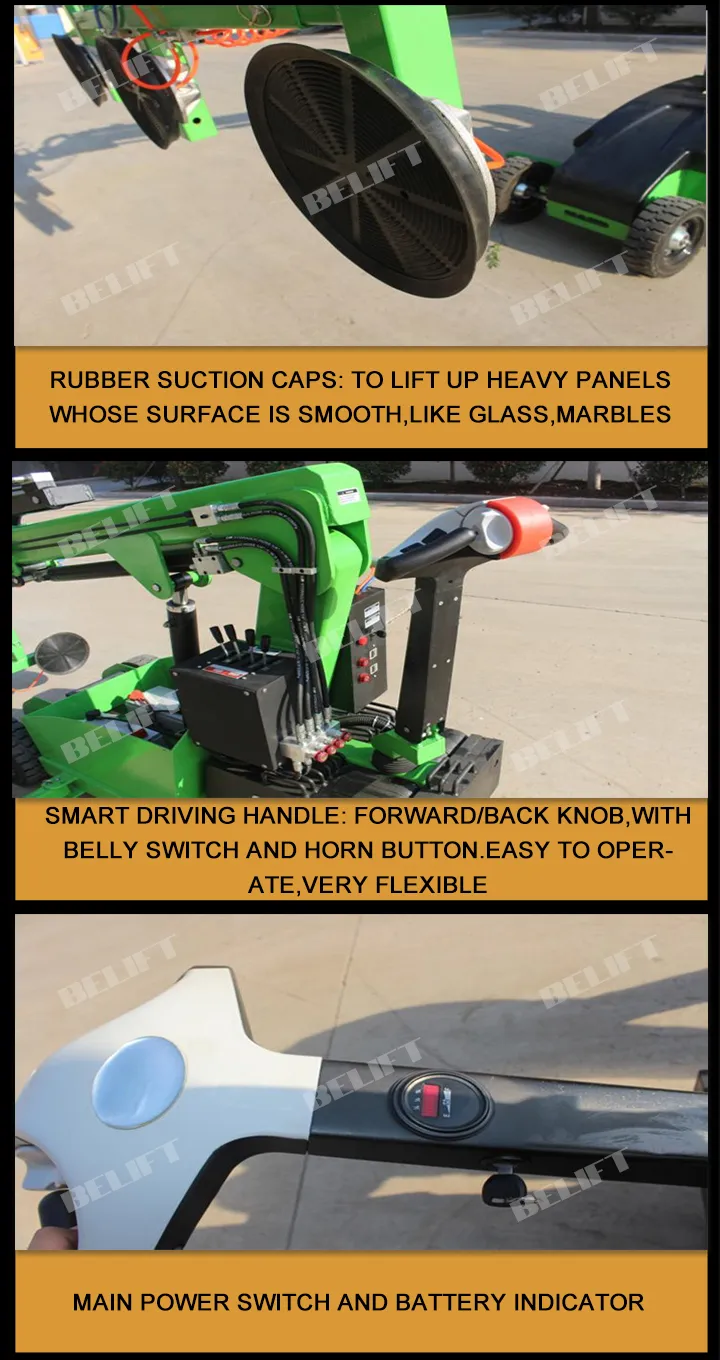

The machine features a rotatable mechanical arm that transports the workpiece precisely to designated positions. It is ideal for the installation and transportation of glass, wood, cement, and metal panels. The adjustable bracket frame can be extended to adapt to different panel sizes, and sponge suction cups can be substituted to accommodate various surface materials.
Key Features & Advantages

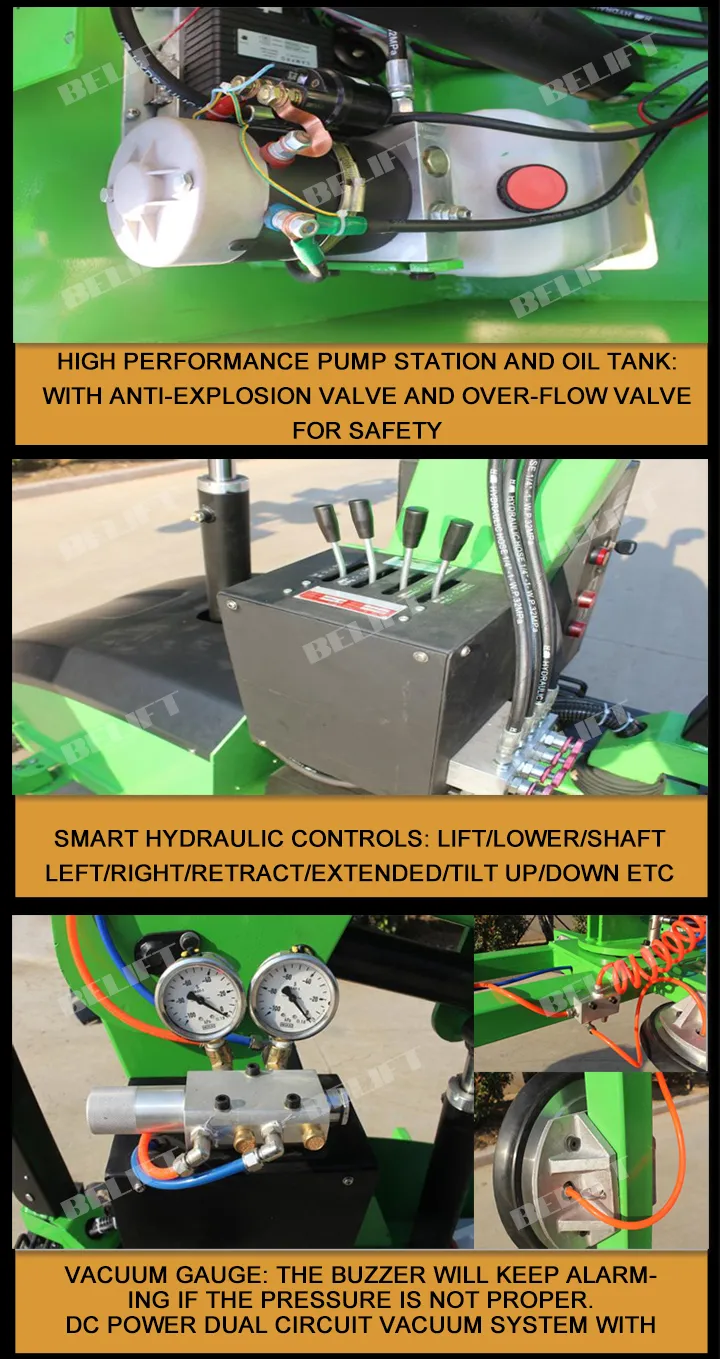

- Integrated control system for quick vertical/horizontal positioning.
- DC24V reliable actuators for efficient lifting, extension, and tipping.
- Self-propelling design with multiple circuit vacuum suction safety.
- Pad frame automatic vertical up/down movement by 180 degrees.
- Lateral side shift of 100mm for precision alignment.
- Optional 360-degree automatic rotation and left/right turning.
Product Parameters
| Model Type |
BGL-LD-300 |
BGL-LD-400 |
BGL-LD-500 |
BGL-LD-600 |
BGL-LD-800 |
| Load Capacity (Retract) |
300kg |
400kg |
500kg |
600kg |
800kg |
| Lifting Height |
3500mm |
3500mm |
3700mm |
3700mm |
4500mm |
| Suction Cups |
4 pcs |
6 pcs |
6 pcs |
6 pcs |
8 pcs |
| Cup Diameter |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
Ø300mm |
| Battery |
2x12V/100AH |
2x12V/100AH |
2x12V/120AH |
2x12V/120AH |
2x12V/120AH |
| Drive Motor |
24V/600W |
24V/600W |
24V/900W |
24V/1200W |
24V/1200W |
After Sales Service
Our commitment to quality extends beyond the purchase:
- ◈ Spare parts provided freely within the quality warranty period.
- ◈ Comprehensive user manuals and operation guides provided.
- ◈ Lifetime technical support for all machinery models.
- ◈ 24-hour online and telephone consultation services.
Frequently Asked Questions
How can I purchase replacement parts if they break down?
The equipment utilizes common hardware parts. You can easily find them at local hardware markets or forklift parts stores. We also supply original components directly.
How can the equipment be repaired?
The machine is designed for high reliability with a low failure rate. If issues occur, we provide video tutorials and detailed instruction manuals to guide your technicians through the repair process.
What is the quality guarantee period?
We offer a one-year quality guarantee. If any component fails due to manufacturing defects within this period, we will send replacement parts free of charge.
What power system does the robot use?

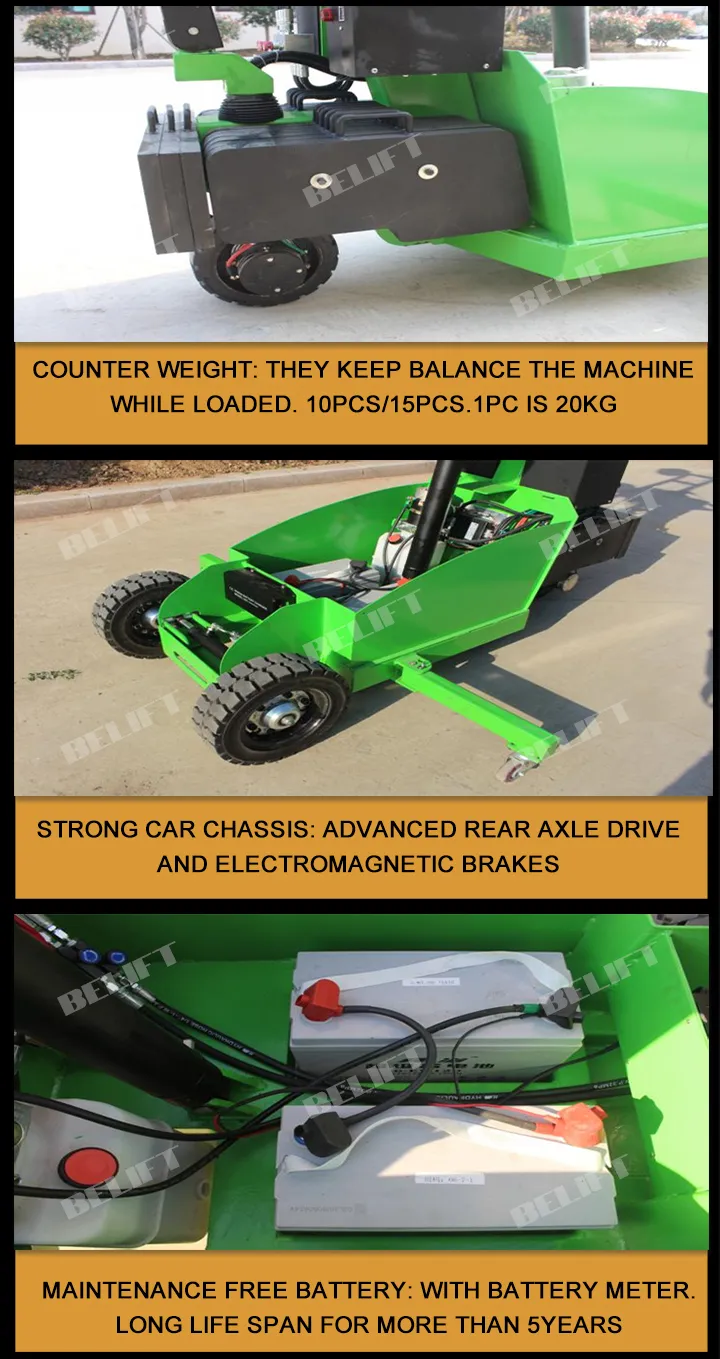

The robot is powered by high-capacity DC batteries (24V system) and comes with a smart charger, allowing for cable-free operation during installation.
Can the vacuum lifter handle rough terrain?
Yes, we offer rough terrain tire options specifically designed for outdoor construction sites and uneven surfaces.
Are OEM and ODM services available?
Yes, we support both OEM and ODM services. We can customize colors, loading capacities, and dimensions to meet your specific project requirements.
