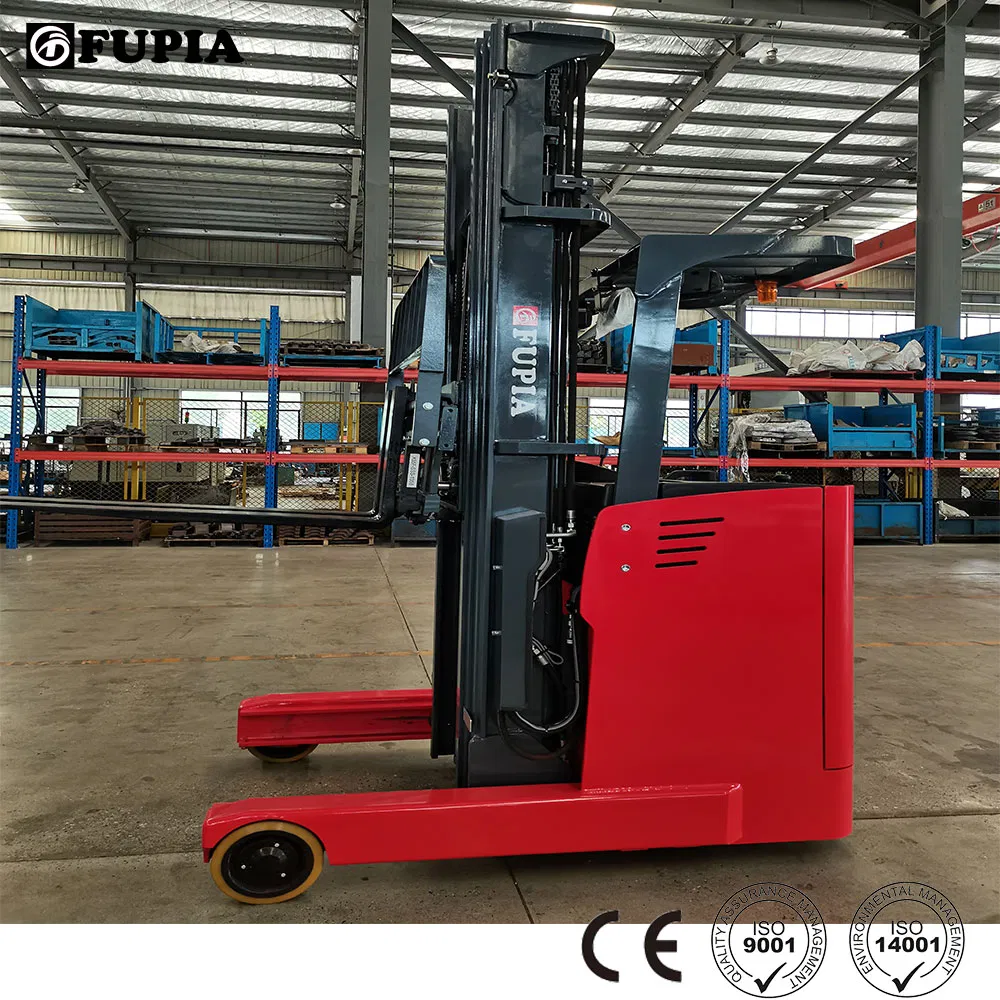

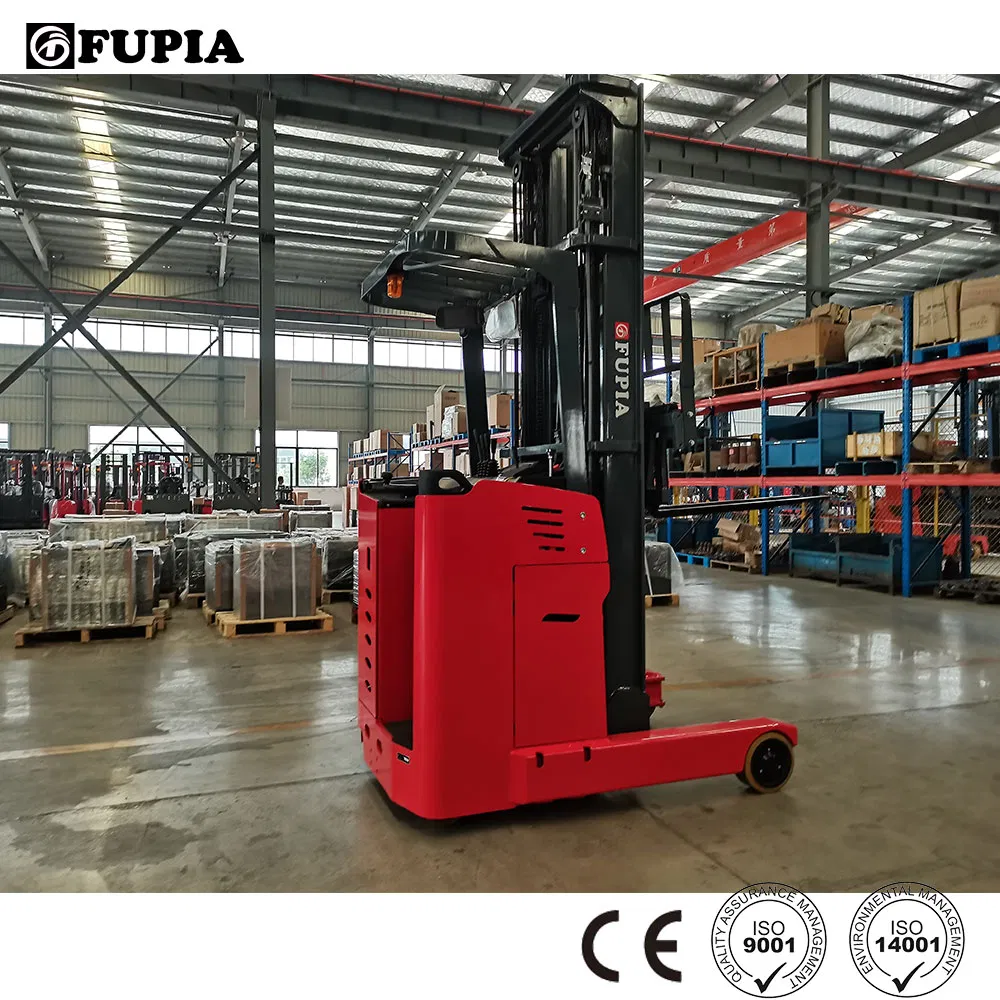

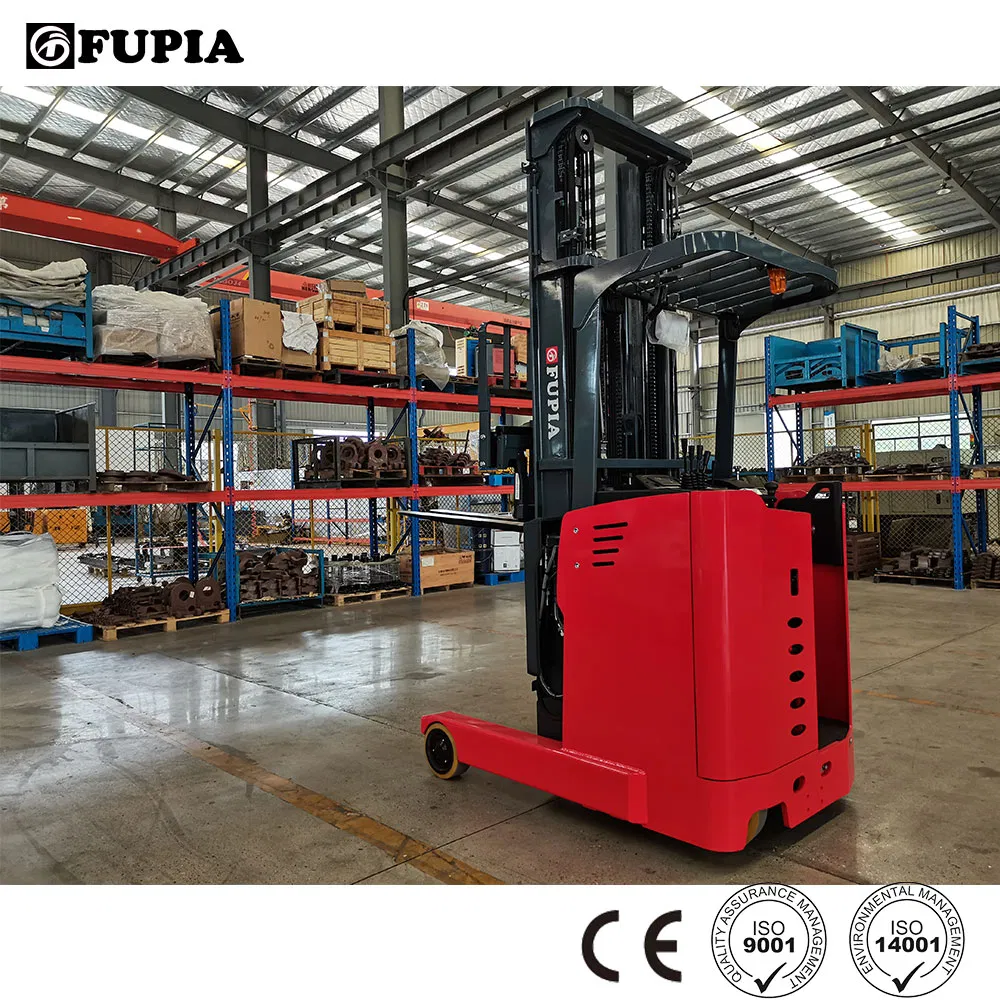

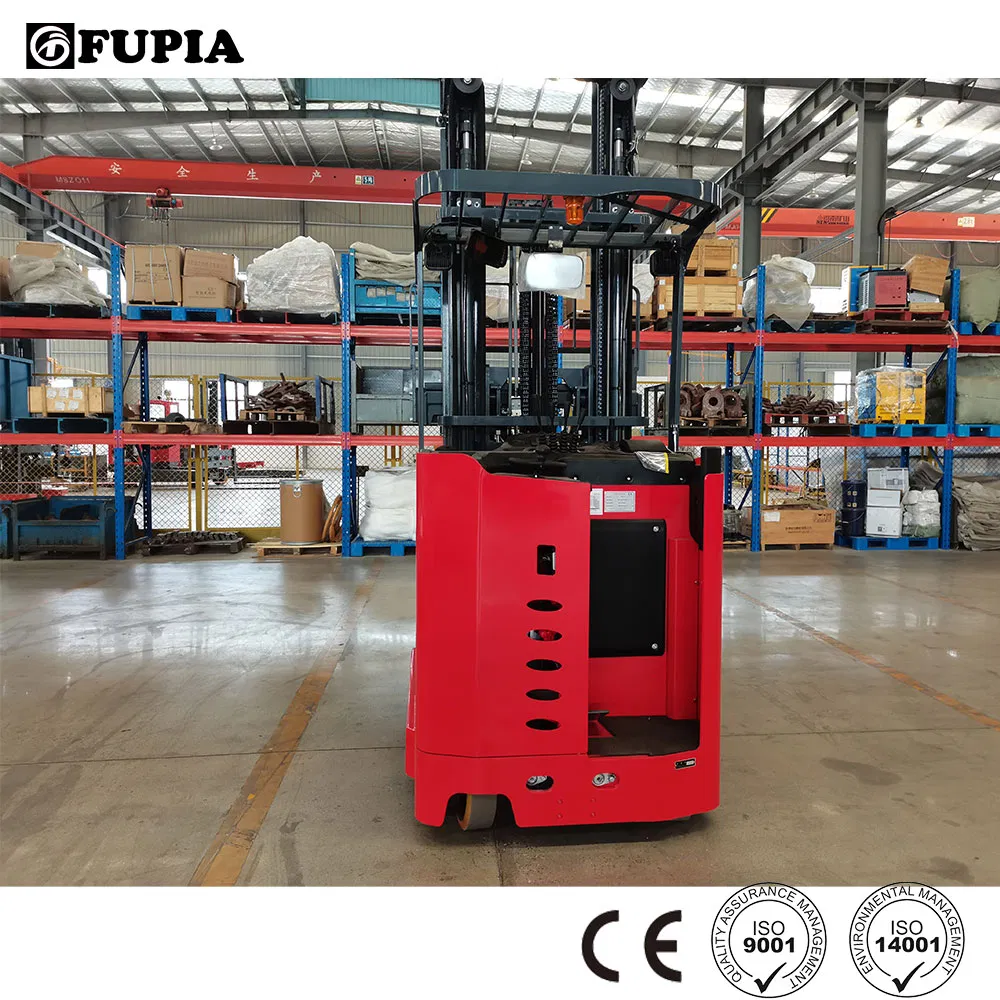

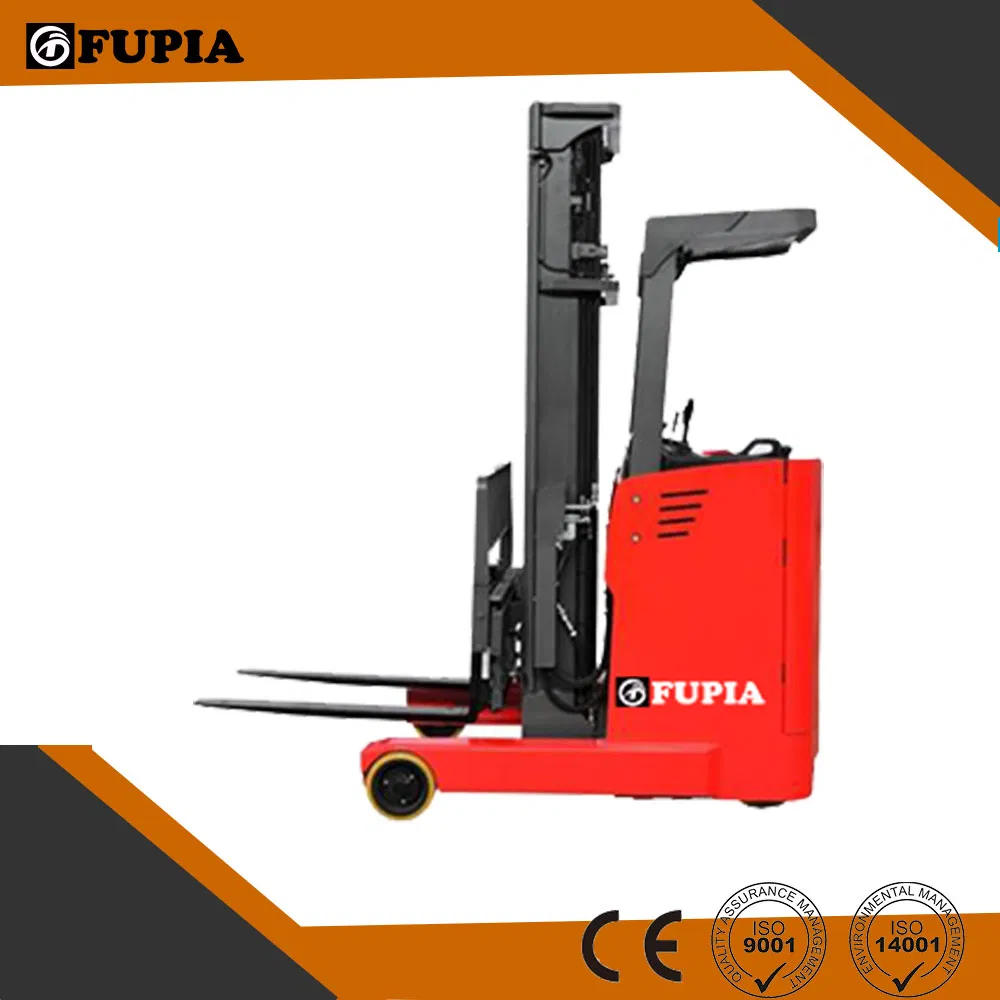

Small Warehouse Use High Lifter 8m Electric High Lift 2000kgs Capacity Battery Reach Truck

Customization: Available
After-sales Service: 7 Day X 24 Hours Online Service
Warranty: 1 Year

Product Description

Overview - Basic Information
Model:FBR20
Type:Electric Forklift
Power:AC Motor
Load Capacity:2000kgs
Fuel:Electric
Load Center:500mm
Lift Height:3000-10000mm
Condition:New
Fork Size:1070X125X40mm
Application:Warehouse, Repair Shops, etc
Service:OEM, ODM Service
Origin:China
Product Description
Electric Reach Truck

Reach trucks are designed for warehouse used to access high shelves containing products and equipment. We adopt advanced ergonomic technology with compact design gives the operator unmatched visibility, ultimate ergonomics and revolutionary ride control.

  • Rugged steel structure with high precision mast enhance the good performance in stabilities and safety.
  • Unmatched comfort, control, and safety enable operators to perform with confidence, all shift long.
  • Durability, energy efficiency, and ease of maintenance minimise downtime to keep the reach truck running strong for maximum productivity.
  • Compact design with small turning radius to give excellent manoeuvre.
  • The opened overhead guard design offers unmatched, all-around visibility - at ground level, eye level, height and in all directions around the operator.
  • Adopting Italy ZAPI or USA Curtis AC controller with microprocessor control system brings high performance to the operator.
  • Full AC motors ensure enhanced performance and reliability, while Electromagnetic braking virtually eliminates brake maintenance.
Product Parameters
Category NO. Item Unit FBR10 FBR15 FBR20 FBR25 FBR30
Specification 3 Power - Electronic
5 Rated Load Capacity kg 1000 1500 2000 2500 3000
6 Load Centre mm 500 500 500 500 500
7 Lift Height mm 3000 3000 3000 3000 3000
9 Fork Size (L×W×T) mm 920×100×35 1070×100×35 1070×100×40 1070×100×45 1070×125×45
Dimensions 11 Overall Length mm 1864 2259 2293 2387 2487
13 Overall Width mm 1000 1090 1170 1270 1270
17 Turning Radius mm 1394 1594 1784 1995 2192
23 Aisle Width (1000x1200) mm 2428 2670 2750 2894 3045
Performance 25 Travel Speed (Full Load) km/h 6 9 9 9 8
27 Lifting Speed mm/s 110/160 200/350 220/380 220/300 200/300

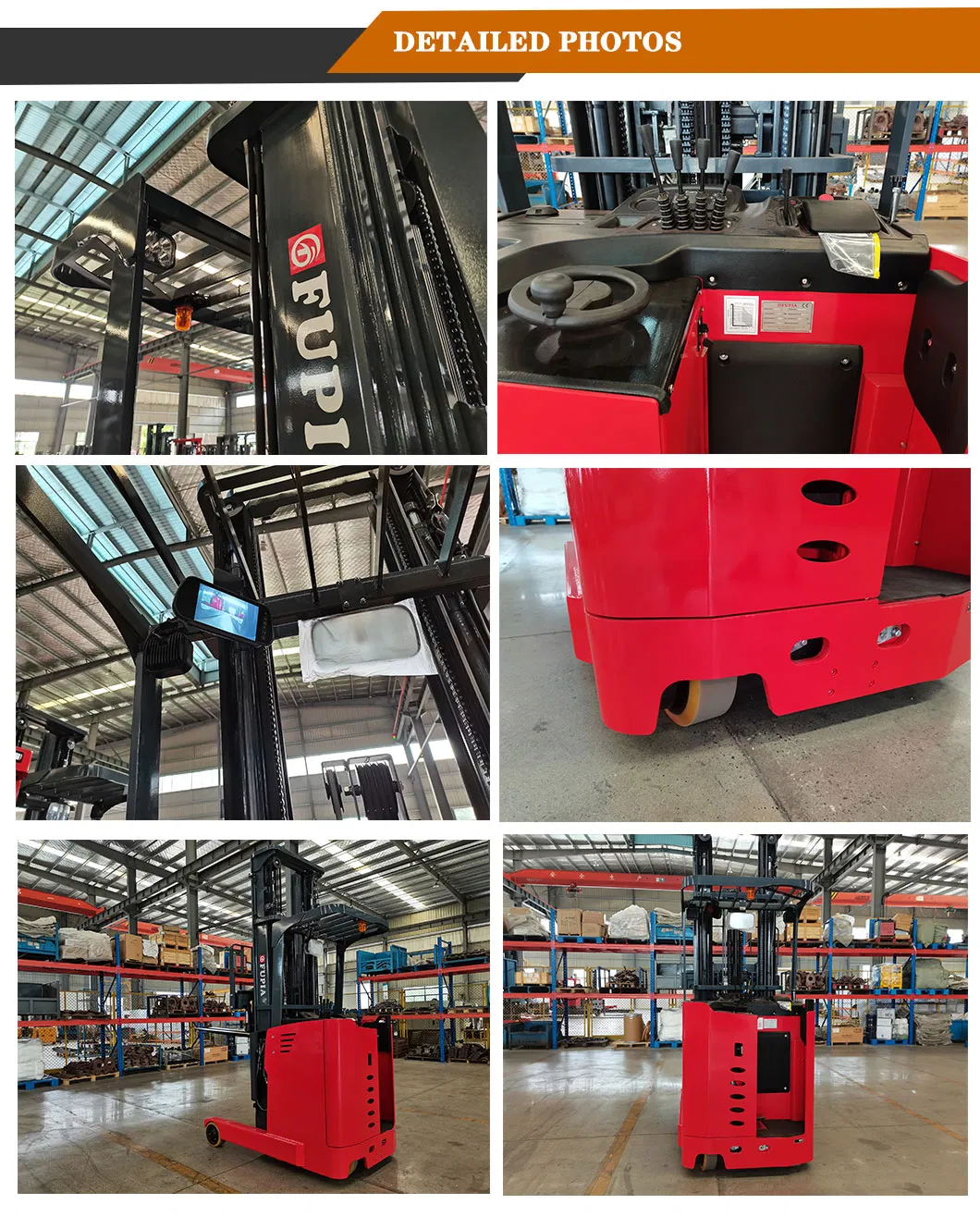

Detailed Photos
Detailed Photos
Certifications
Certifications

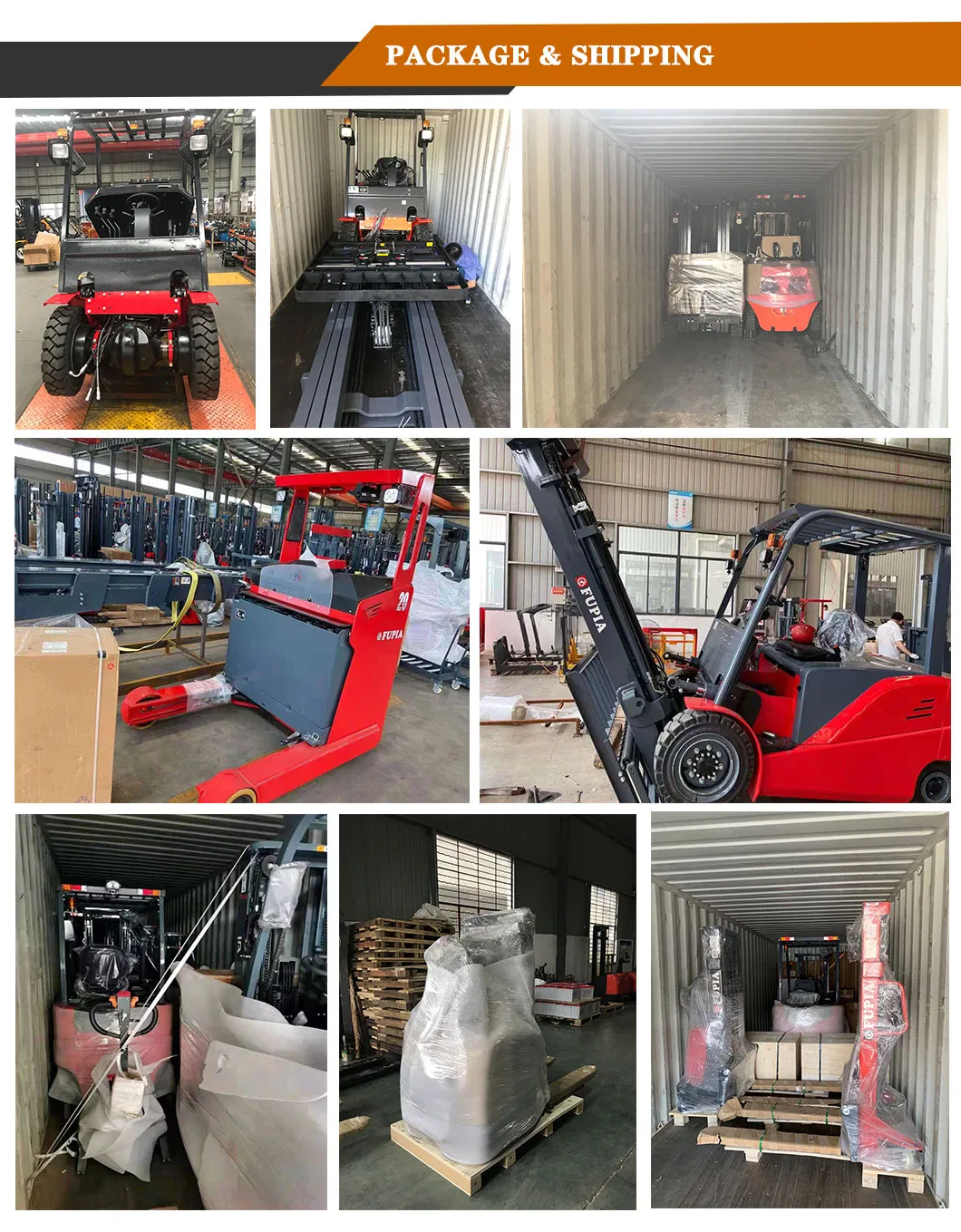

Packaging & Shipping
Packaging and Shipping

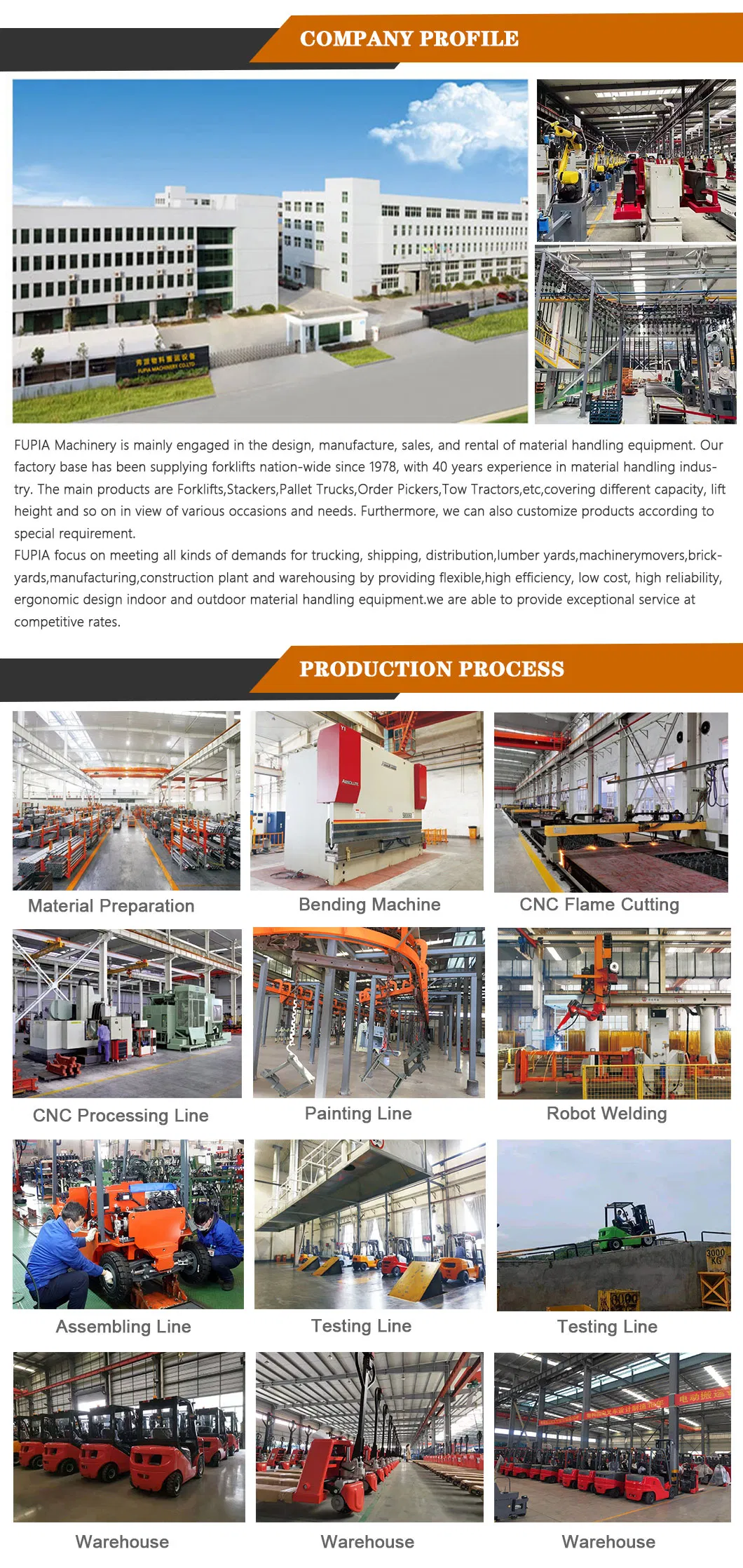

Facility & After Sales
Frequently Asked Questions
1. What is the maximum load capacity for this reach truck? The standard rated load capacity for the FBR20 model is 2000kgs, with options ranging from 1000kg to 3000kg in the series.
2. What lift heights are available? This equipment offers a lift height range from 3000mm up to 10000mm to suit various warehouse requirements.
3. Which control systems are used in your electric forklifts? Our reach trucks are equipped with advanced Italy ZAPI or USA Curtis AC controllers for high performance and energy efficiency.
4. Is the reach truck suitable for narrow aisle operation? Yes, the compact design and small turning radius (e.g., 1784mm for FBR20) make it excellent for maneuvering in tight warehouse spaces.
5. What kind of motors and braking system does it use? It uses full AC motors for enhanced reliability and an electromagnetic braking system that virtually eliminates the need for brake maintenance.
6. Are OEM and ODM services available? Yes, we provide both OEM and ODM services to meet specific industrial and warehouse application needs.

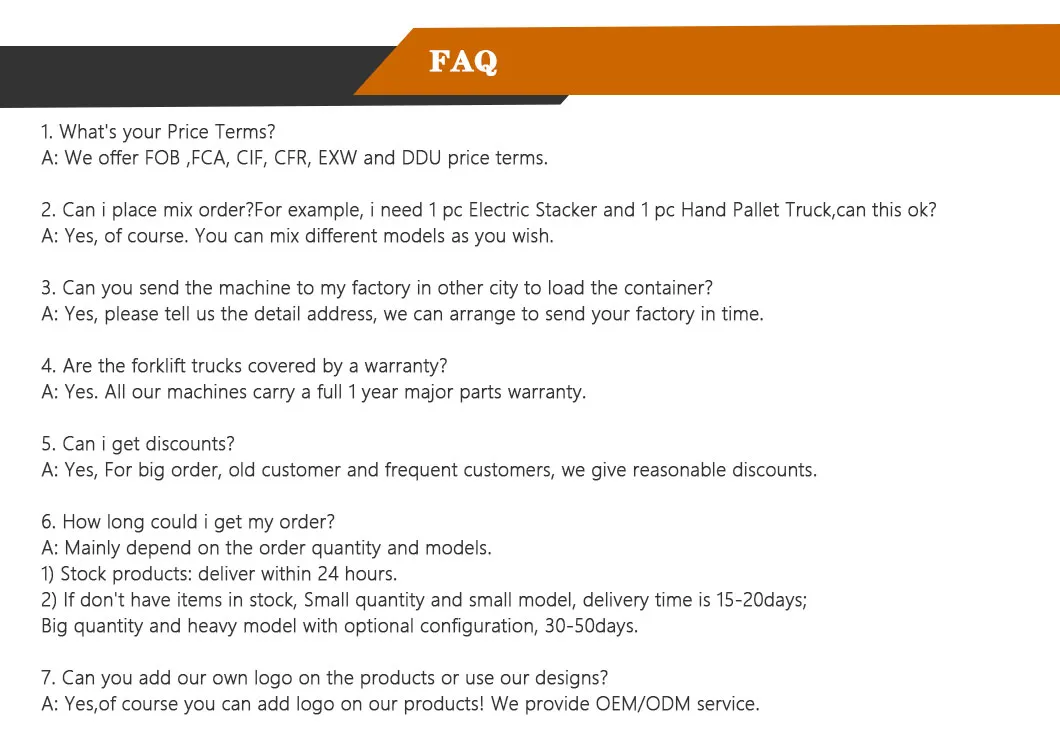

FAQ Visual Reference
