Overview & Technical Specifications

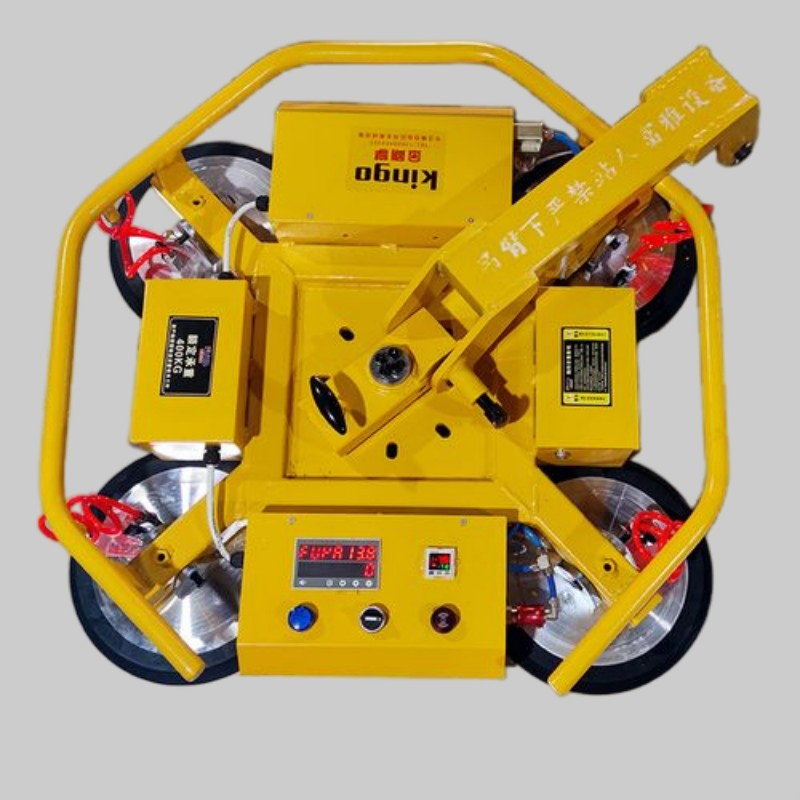

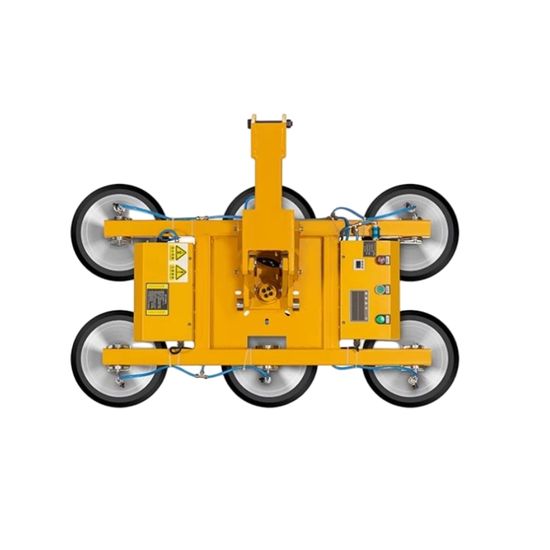

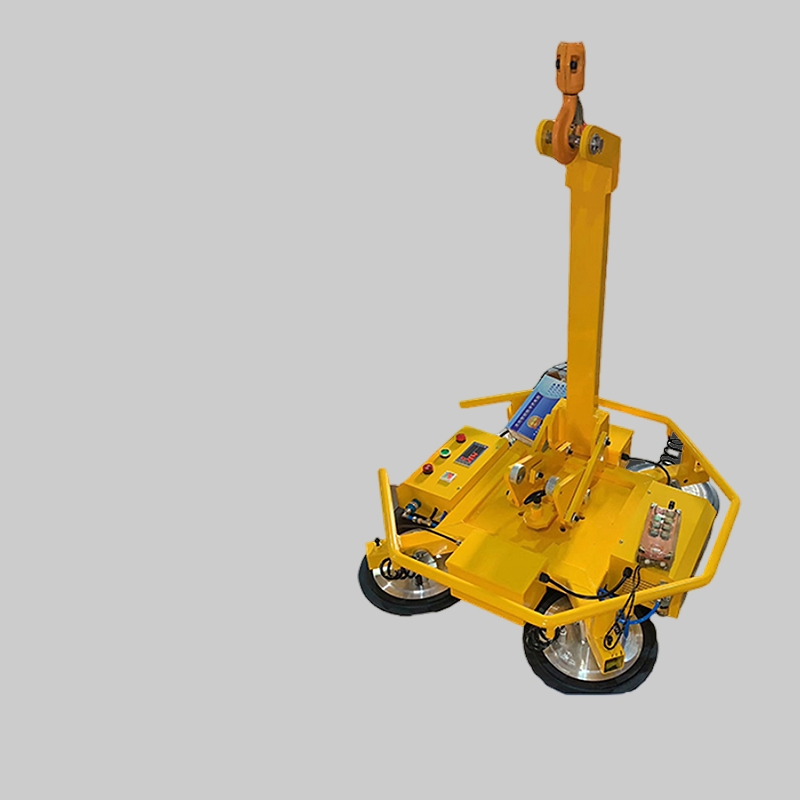

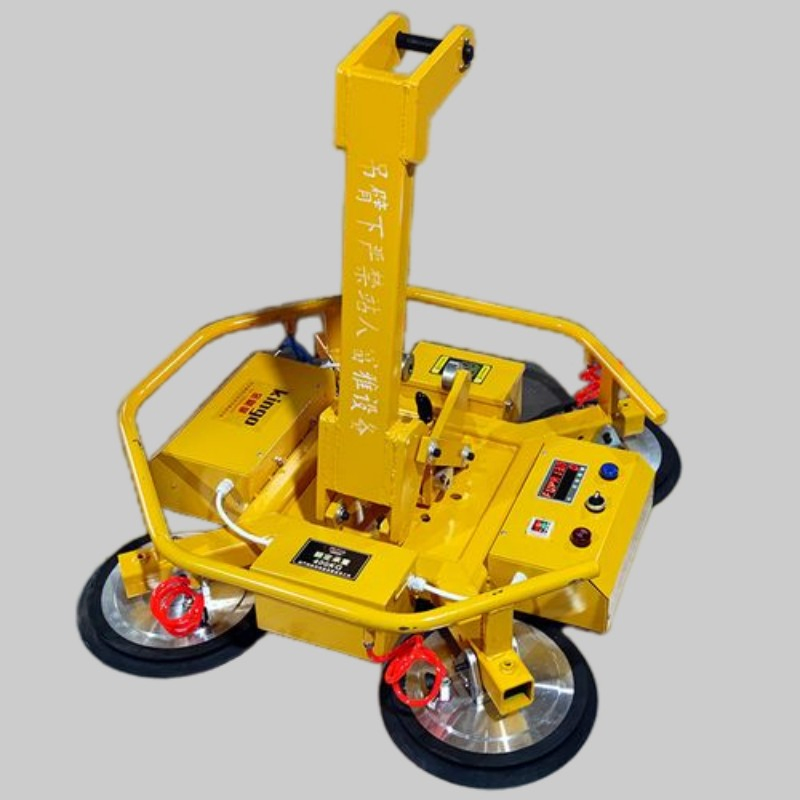

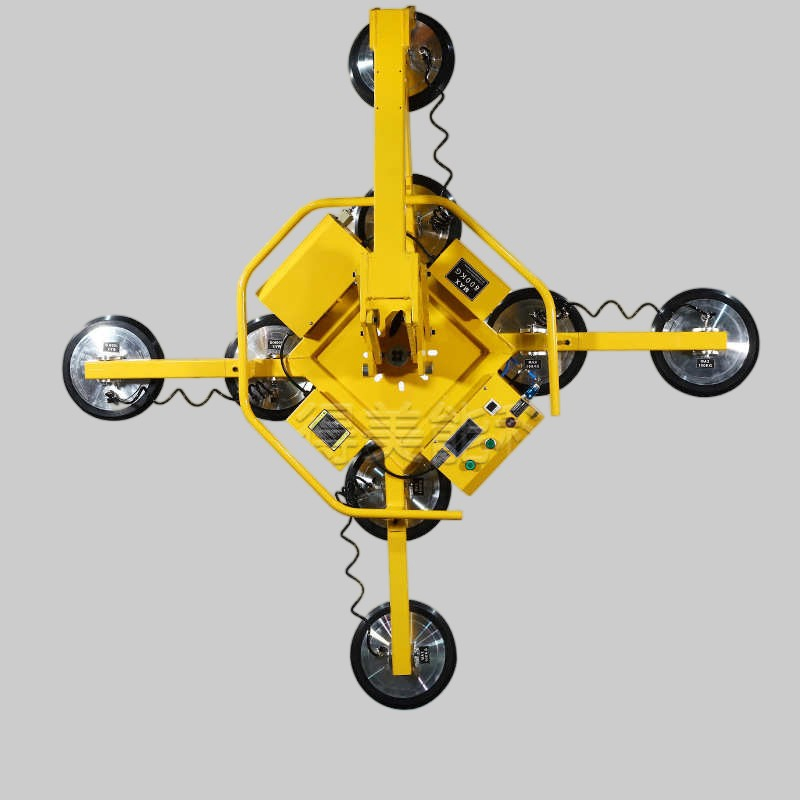

This versatile vacuum lifting device provides an efficient and reliable solution for handling flat and smooth materials in both indoor and outdoor environments. Constructed with a high-strength frame and equipped with powerful suction cups, it ensures secure gripping and safe lifting.
Max Loading
300-1000kg (Customizable)
Vacuum Source
Oil-Free Vacuum Pump
Rocker Arm Rotation
0~360 degree
Power Supply
AC/200V 380V DC12V/24V Power
Application
Glass, Steel, Stone Handling
Safety Guarantee
Pressure Holding System
2
Product Features & Applications
Versatile Applications
- Glass Handling: Secure lifting for production or installation.
- Sheet Metal: Transporting steel or aluminum without surface damage.
- Stone Processing: Effortless lifting of marble and granite slabs.
- Construction: Perfect for sandwich and solar panels.
Superior Key Configurations
Strong Suction
High-performance pump for reliable grip.
Flexible Power
Electric, battery, or pneumatic options.
Durable Pads
Replaceable cups fit various materials.
Easy Control
Pendant or wireless remote operation.
Safety Built-in
Vacuum gauge and alarm included.
Multi-Direction
Supports 90° tilting & 360° rotation.
| Item |
Specification Range |
Remarks |
| Lifting Capacity | 100 kg ~ 3000 kg | Based on pad quantity and size |
| Suction Pad Diameter | 150 mm ~ 400 mm | Optional sizes available |
| Power Supply | 12V / 24V DC / AC / Battery | Customizable for site needs |
| Tilting Function | 0° ~ 90° | Manual or motorized |
| Vacuum Holding Time | ≥ 30 min | Security during power loss |
| Operating Temperature | -10°C ~ +50°C | Indoor and outdoor use |
5
Why Choose Our Solutions
We specialize in offering a diverse array of cutting-edge lifting and material handling solutions. Backed by years of industry experience, our equipment is engineered for optimal performance, safety, and reliability.
- OEM/ODM Capabilities: Customized solutions tailored to your specific branding and operational requirements.
- Logistics Efficiency: Fast shipping and support for seamless importation.
- Turnkey Projects: Comprehensive service from design to execution.
- After-Sales Support: 12-month coverage and 24/7 technical assistance.
Frequently Asked Questions
What materials can this vacuum lifter handle?
It is suitable for glass, metal sheets, stone slabs, plastic panels, and other flat or smooth surfaces.
What happens if the power cuts off during lifting?
The system is equipped with a non-return valve and vacuum reservoir to maintain suction for at least 30 minutes for safety.
Can the lifter be used outdoors?
Yes. The unit is weather-resistant and features anti-corrosion treatment suitable for outdoor construction environments.
Is remote control operation available?
Yes. We offer both wired pendant and wireless remote control options depending on your operational needs.
Does it support tilting or rotation?
Optional features include 90° tilting and 360° rotation, which can be configured as either manual or electric.
What power supply options are available?
You can choose from 12V/24V battery power, 220V/380V AC, or pneumatic systems.
