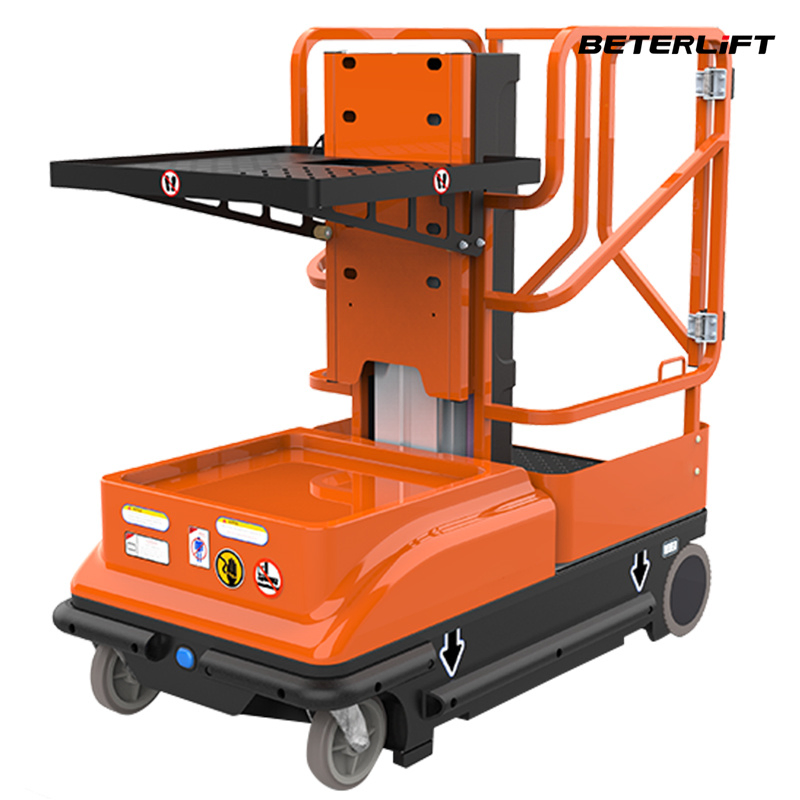

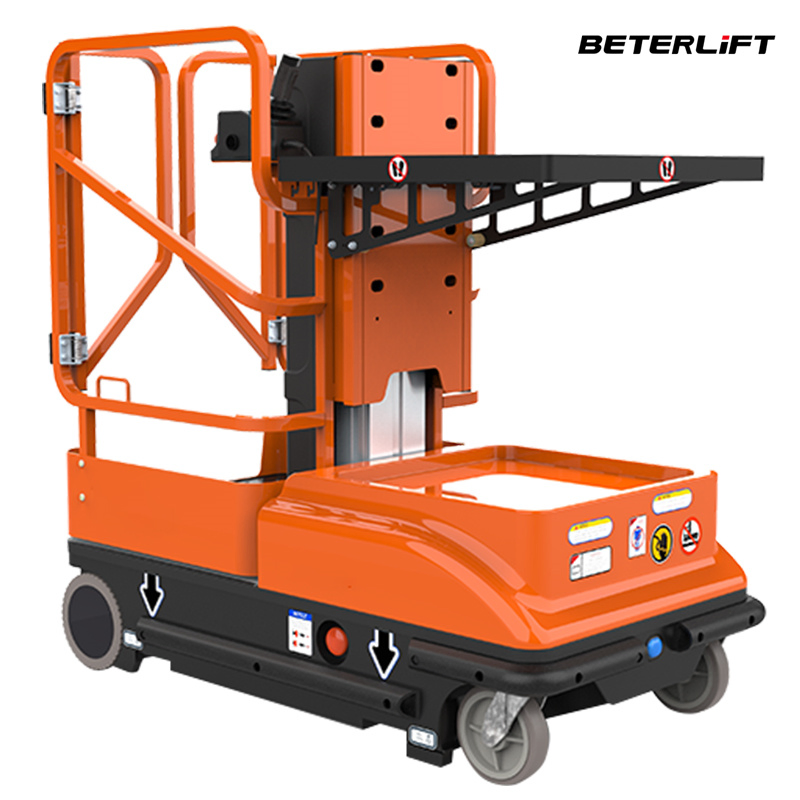

Electric Automatic 0.2ton Battery Order Picker Truck with CE

Still deciding? Get samples of $ !
Order Sample

Product Description

📊 Basic Info.
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Lift Chain
Carrying Capacity
Middle-Level
Moves
Self-propelled
Driven Type
DC
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Max.Platform Height
3m and 4m
Lifting Capacity
150kg
Platform Size(mm)
695*720mm
Battery (V/Ah)
24V/150ah
📦 Product Description

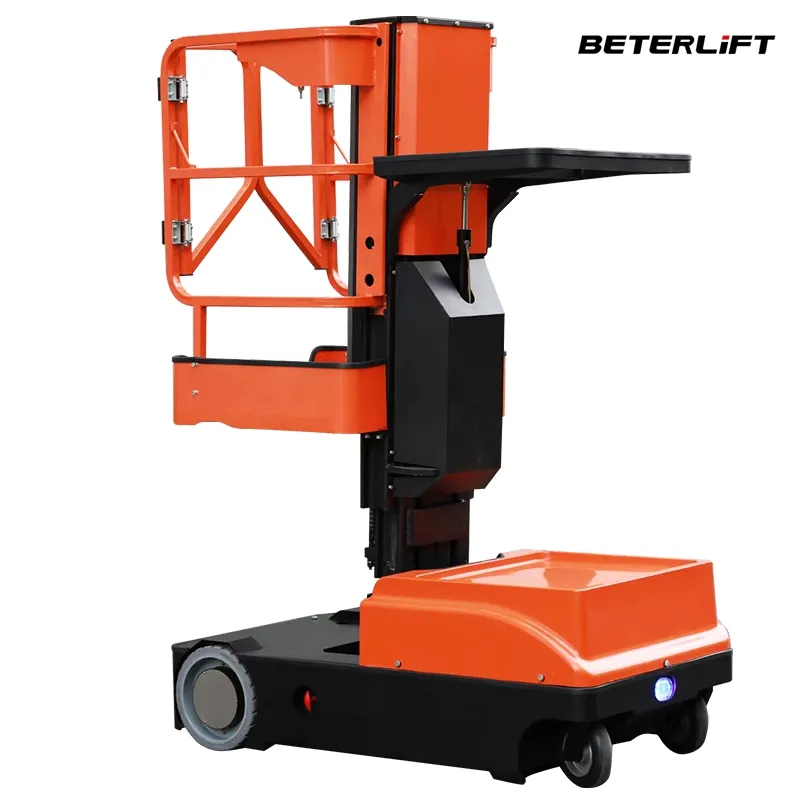

Order Picker Truck

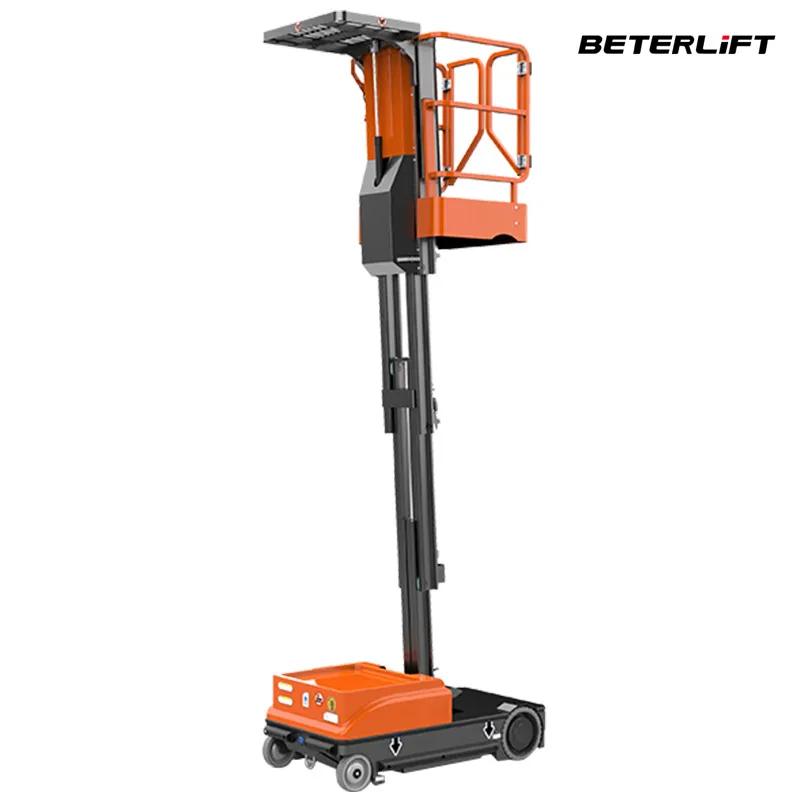

Order Picker Truck
5m 6m Low Level Access Aerial Work Lift Platform Electric Order Picker
Self propelled Order Picker is specially designed for indoor outdoor aerial works with lower height and narrow space. With compact sizes, light weight and strengthened structure, it is portable and easy to operate.

Equipped with safety precautions to ensure stability. With automatic walking, turning, and lifting functions, this self-propelled order picker significantly improves working efficiency.

The High-End electric order picker can carry goods in multiple areas and has a working height of up to 6 meters, making it easy to pick and place items on third-level shelves, change price labels, or install ceiling decorations and lighting. It is widely used in supermarkets, warehouses, workshops, theaters, and galleries.

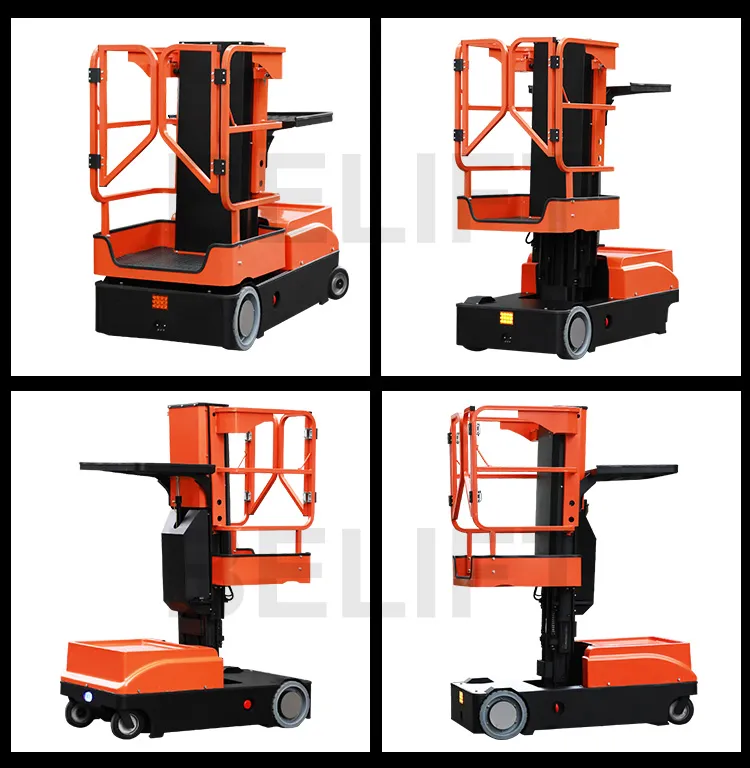

Operation View
📋 Specification Sheet
Model Specifications EAP-H5 EAP-H6
Maximum platform height (mm)30004000
Working height (mm)50006000
Overall machine length (mm)1480
Overall machine width (mm)756
Overall machine height (mm)14751805
Standing platform load (kg)150
Grid platform load (kg)90
Minimum turning radius (mm)1700
Overall machine weight (kg)840870
Performance Parameters
Ascending/descending time (sec)30/4040/50
Maximum climbing ability5° - 8°
Driving speed (Km/h)0-4
DC battery voltage/capacity (V/Ah)2×12/100
🛠️ Product Features & Parameters
  • Planetary Gear Drive Motors
  • Simultaneous Lift and Drive Capability
  • One-hand Drive and Steer System
  • Proportional Drive
  • Automatic Five-Hour Battery Charger
  • Battery Discharge Indicator - Platform and base
  • Lubrication-Free Anodized Aluminum Mast Sections
  • Maintenance-Free Mast Guide System
  • Strobe Lights Front and Rear
  • Stand-on Foot Switch Operation Enable Control
  • Platform Gate Operation Interlock
  • Adjustable Height Material Tray
  • Non-Marking Tire Material
  • Lanyard Attachment Anchor Point
  • Hourmeter and Horn
  • Side and Front Bumpers
📷 Detailed Photos

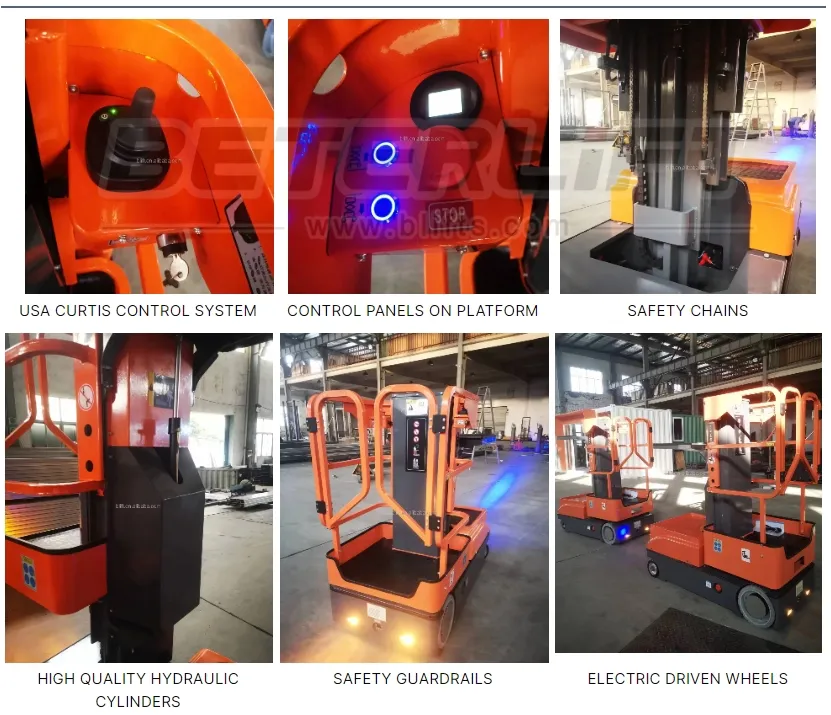

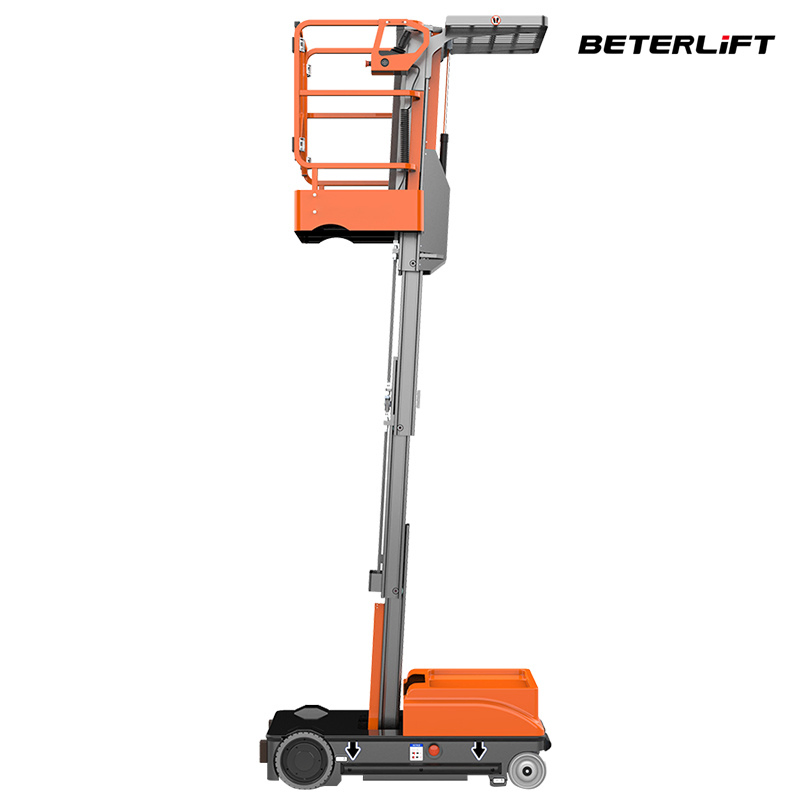

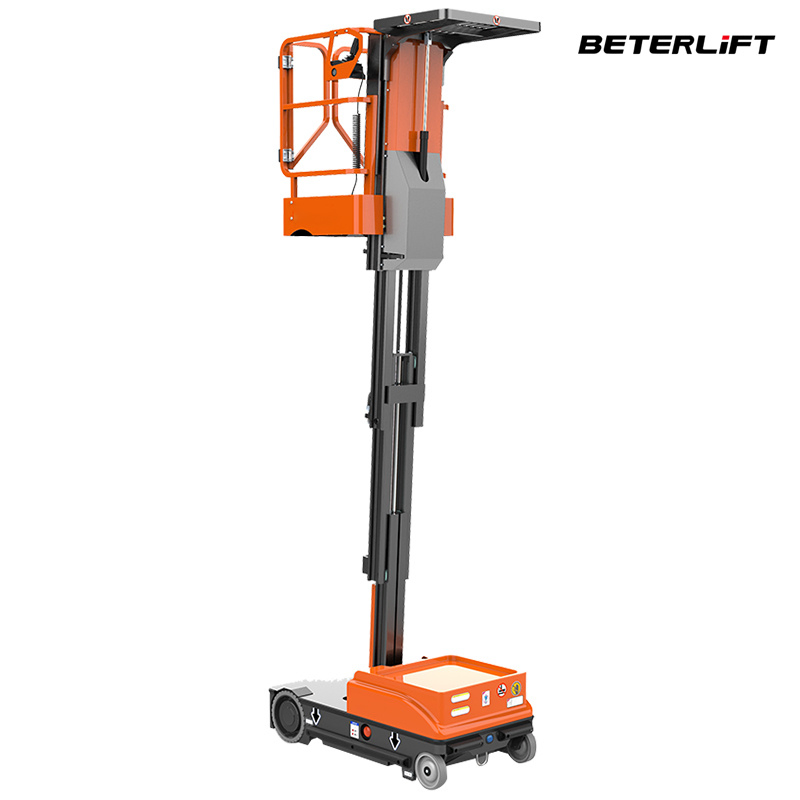

Detail 1

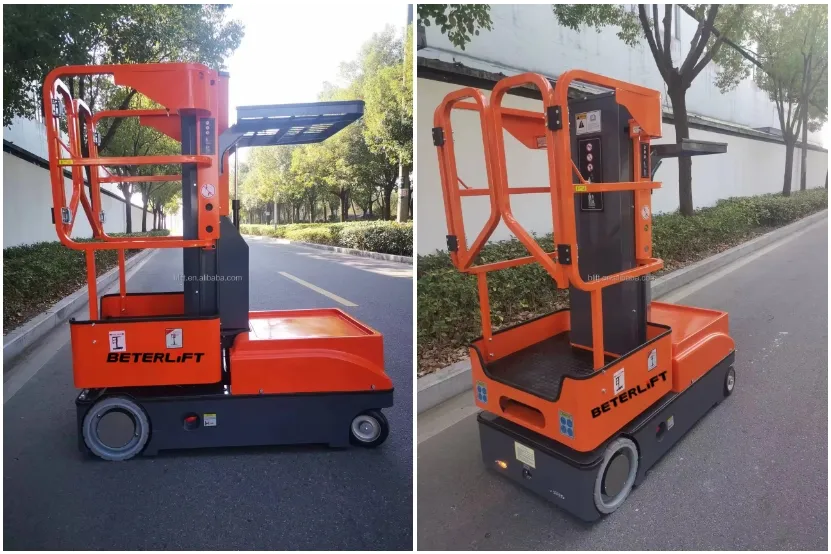

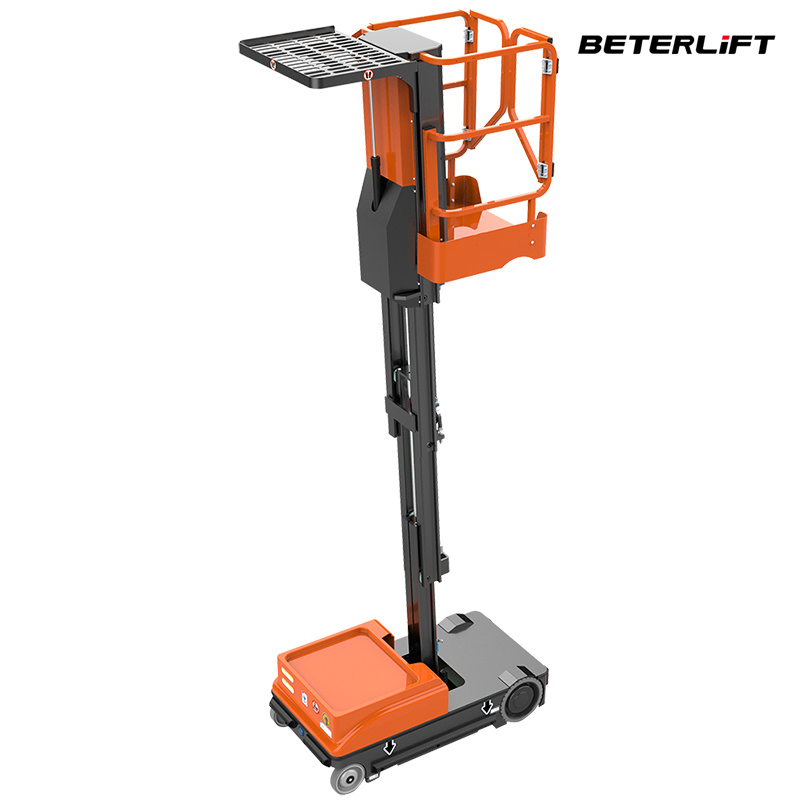

Detail 2
🏢 Professional Manufacturing
Specialized in manufacturing Aerial Work Platforms and Material Lift Platforms. Our products are recognized by customers worldwide for their quality and reliability.
Certifications: CE, ROHS, SGS, ISO, etc.

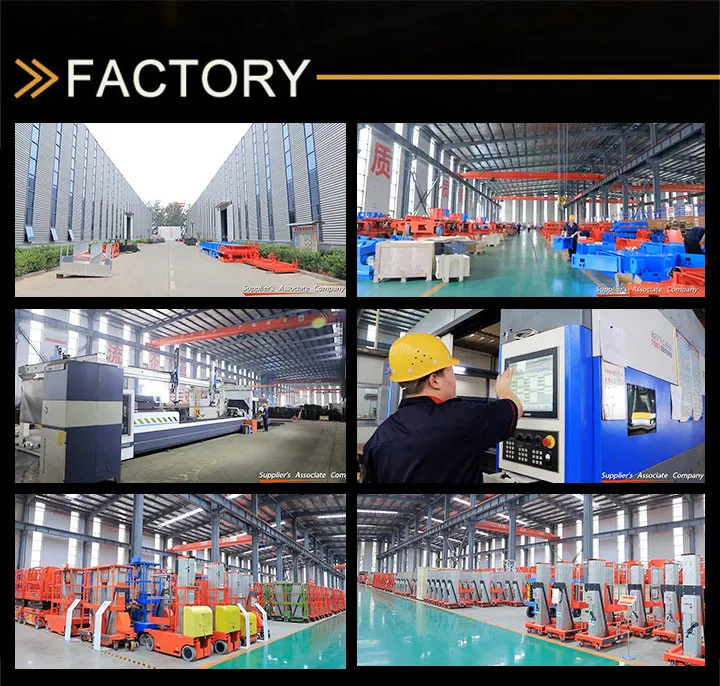

Factory 1

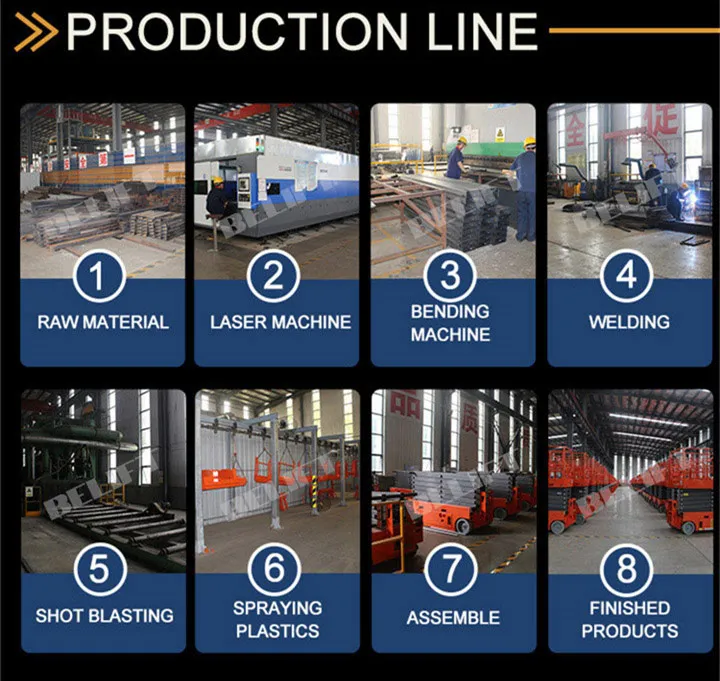

Factory 2
Our Advantages
  • Perfect shot blasting treatment and anti-corrosion paint spraying for a beautiful appearance.
  • Unique compact structure design, strong enough to support heavy loads.
  • Produced on an automatic production line for highly guaranteed quality.
  • High strengthened steel structures for smooth lifting and minimal faults.
  • Customized power sources to meet local standards.
🔧 After Sales Service
  • Spare parts provided freely within the quality warranty period.
  • Detailed user manuals provided.
  • Lifetime technical support.
  • 24-hour telephone and internet service support.
Frequently Asked Questions
1. How can customers buy replacement parts if the unit breaks down?
The order picker adopts common hardware parts. You can easily purchase these from your local hardware market or forklift parts shop.
2. How is the repair process handled?
The equipment has a very low failure rate. In case of issues, we provide guidance through video tutorials and detailed repair instructions.
3. What is the duration of the quality guarantee?
We provide a one-year quality guarantee. If the equipment fails within one year, we send replacement parts to you free of charge.
4. What certifications does this order picker have?
Our products are fully certified with CE, ROHS, SGS, and ISO standards to ensure safety and quality.
5. Can this machine be used in narrow warehouse aisles?
Yes, it is specifically designed with a compact structure and a tight turning radius (1700mm) for efficient operation in narrow spaces.
6. What is the maximum load capacity for the platform?
The standing platform has a load capacity of 150kg, and the adjustable material tray can hold an additional 90kg.
