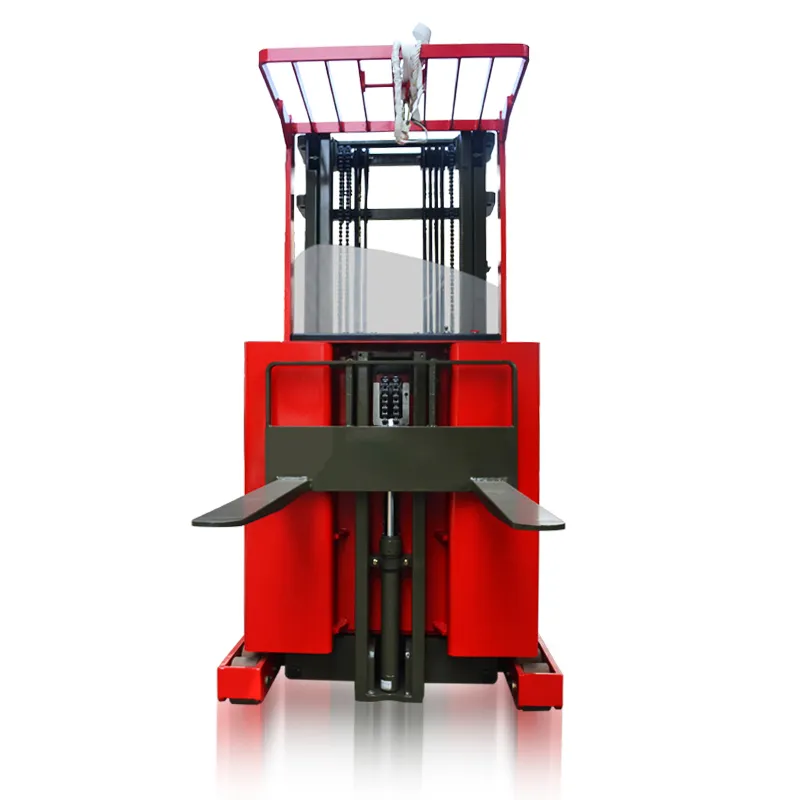

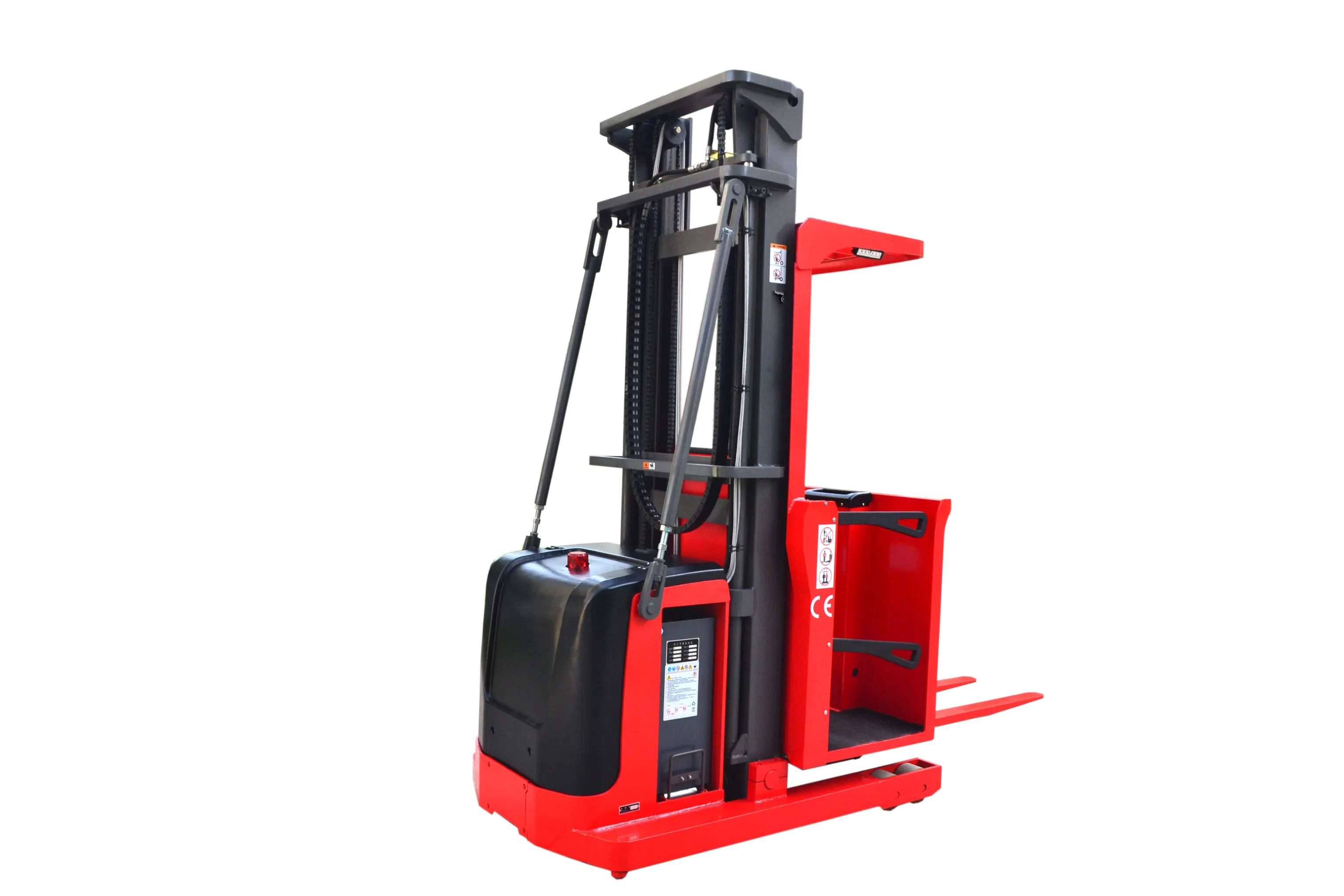

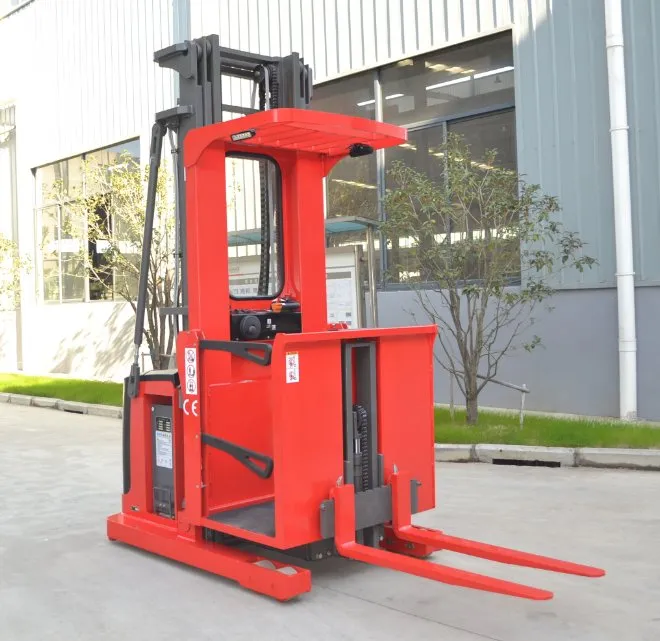

Durable New Design Order Picker

Customization:	Available
Cab Location:	Adjustable
Type:	Electric Order Picker

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

RBC10

Power

AC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load center

500mm

Lift height

3000~5000mm

Condition

New

Certification

CE, BV, SGS, ISO9001 EPA, Euro 3

Loading Capacity

10000kgs

After-Sales Service

Field Installation, Commissioning and Training

Operation Type

Stand on

Driving Motor Type

Transport Package

Nude Packing, 1unit/20gp Container, 3units/40hq

Specification

4270*2560*2165MM

HS Code

8427209000

Production Capacity

3000sets /Year

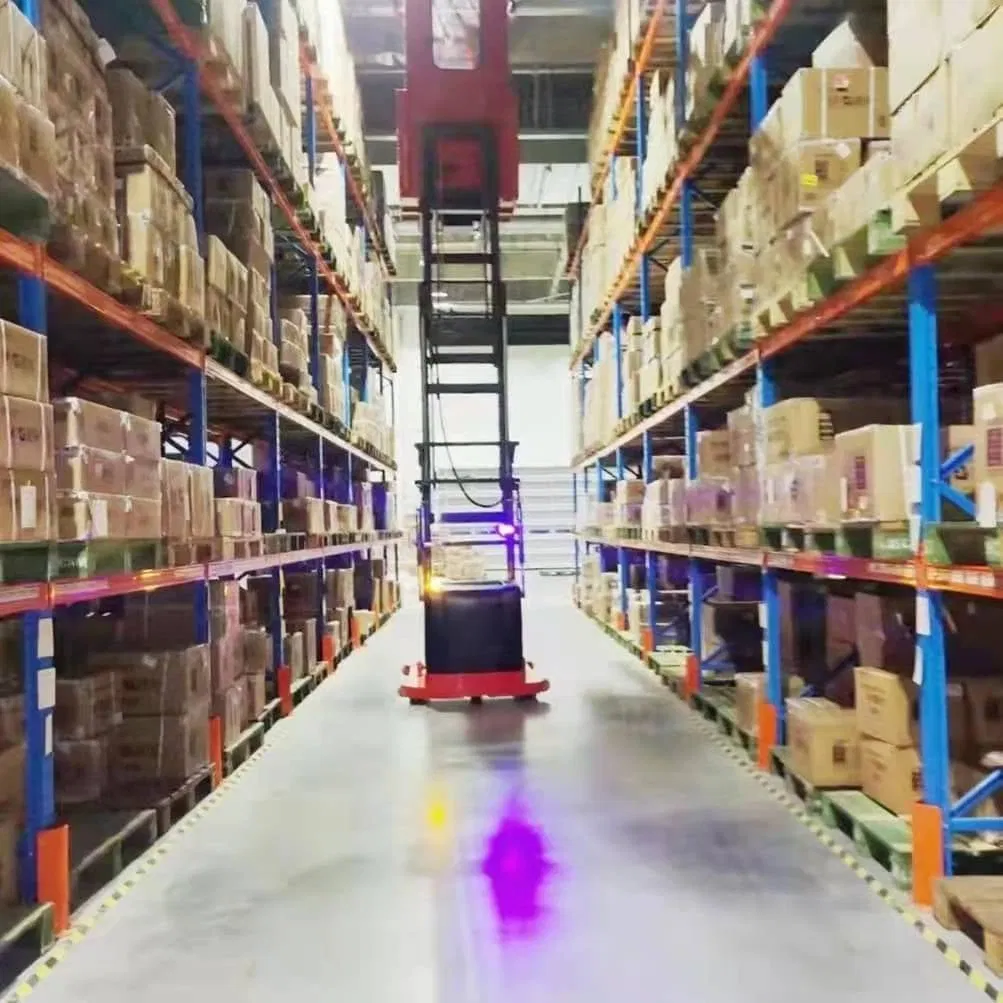

📷 Detailed Photos

📊 Product Parameters

Electric Order Picker RBC10
Standard
1.1	Manufacturer
1.2	Model		RBC1030	RBC1060S
1.3	Power Type		Battery	Battery
1.4	Operation Type		Stand on	Stand on
1.5	Rated Capacity	Q(kg)	1000	1000
1.6	Load Center	C(mm)	500	500
1.8	Front Overhang	x(mm)	148	160
1.9	Wheelbase	y(mm)	1410	1410
Weight
2.1	Service Weight (incl. battery)	kg	2490	2830
2.2	Distribution loaded (drive/load side)	kg	940/2550	1130/2700
2.3	Distribution unloaded (drive/load side)	kg	1410/1080	1610/1220
Wheels
3.1	Wheel Types		PU	PU
3.2	Load Wheel Size	mm	φ150×90	φ150×90
3.3	Drive Wheel Size	mm	φ254×100	φ254×100
3.5	Number of wheels (front/rear)		4/1X	4/1X
3.7	Wheel tread, load side	b11(mm)	1008	1008
Size
4.2	Mast closed height	h1(mm)	2300	2815
4.4	Lift height	h3(mm)	2760	5760
	Max lift height of fork	h25(mm)	3530	6530
4.5	Mast extended height	h4(mm)	5010	7955
4.7	Overhead guard height	h6(mm)	2250	2250
4.14	Platform max. ground clearance	h12(mm)	3000	6000
4.14.1	Picking height (h12+1600mm)	h28(mm)	4600	7600
4.19	Overall length	l1(mm)	2825	2835
4.21	Overall width	b1/b2(mm)	1150	1150
4.22	Fork size	l/e/s(mm)	1070/100/40	1070/100/40
4.35	Turning radius	Wa(mm)	1625	1625
Performance
5.1	Driving speed (load/unload)	km/h	6/6.3	6/6.3
5.2	Lifting speed (load/unload)	mm/s	115/140	115/140
5.10	Brake type		Electromagnetic	Electromagnetic
Drive Motor
6.1	Driving motor rating (S2-60min)	kw	2.5	2.5
6.2	Lifting motor rating (S3-15%)	kw	3	3
6.4	Battery voltage/capacity	V/Ah	24/400	24/400
8.6	Steering system		EPS	EPS

🏭 Profile

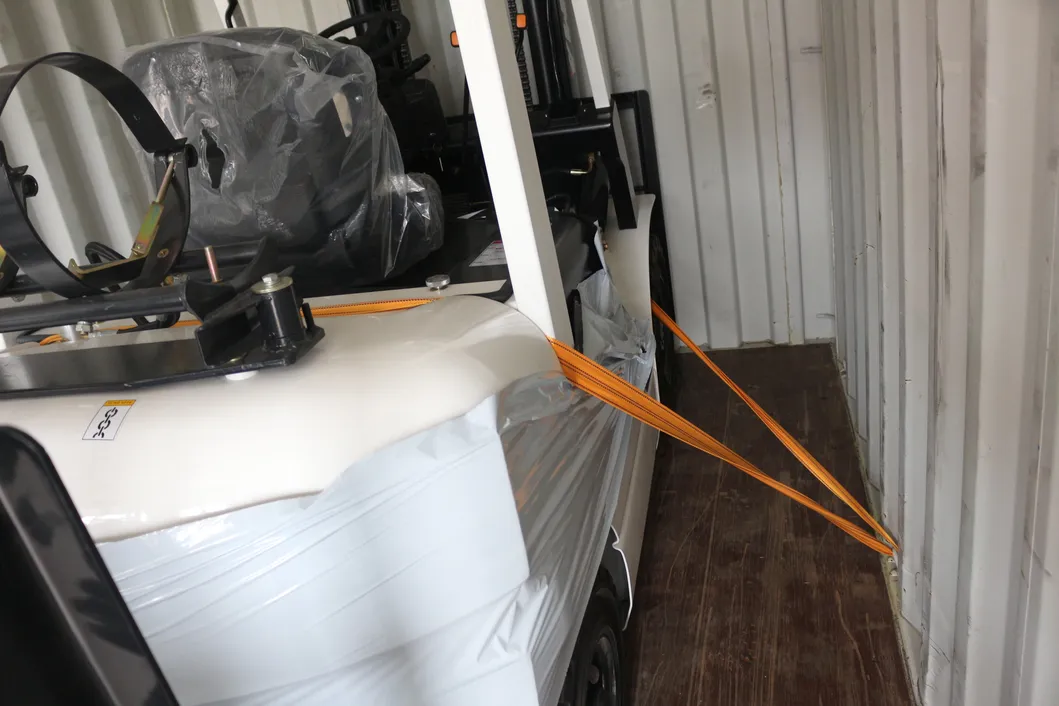

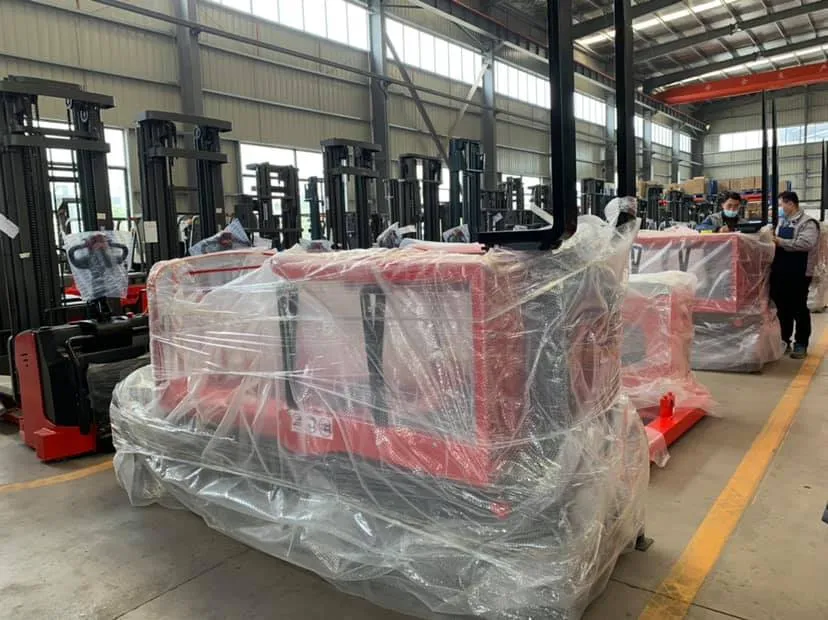

📦 Packaging & Shipping

❓ Frequently Asked Questions

What certificates do the products have?

The workshop meets the ISO9001:2008 Quality System. All of our products come with CE and SGS certificates.

Can you customize and design based on specific requirements?

We try our best to meet special requirements. However, all customization and refitting must be implemented safely and scientifically. Colors can also be customized.

How long is the warranty period?

The standard warranty is 1 year or 2000 working hours, whichever occurs first.

Is OEM branding available?

With the proper brand authorization, we can provide OEM services for our clients.

What are the accepted payment terms?

Normally, we require a 30% T/T deposit in advance, with the balance paid before shipment. We also accept 100% L/C at sight from reputable international banks.

What is the expected delivery time?

Standard configuration products are usually in stock. The production time is typically within 20 days after the order is confirmed.
