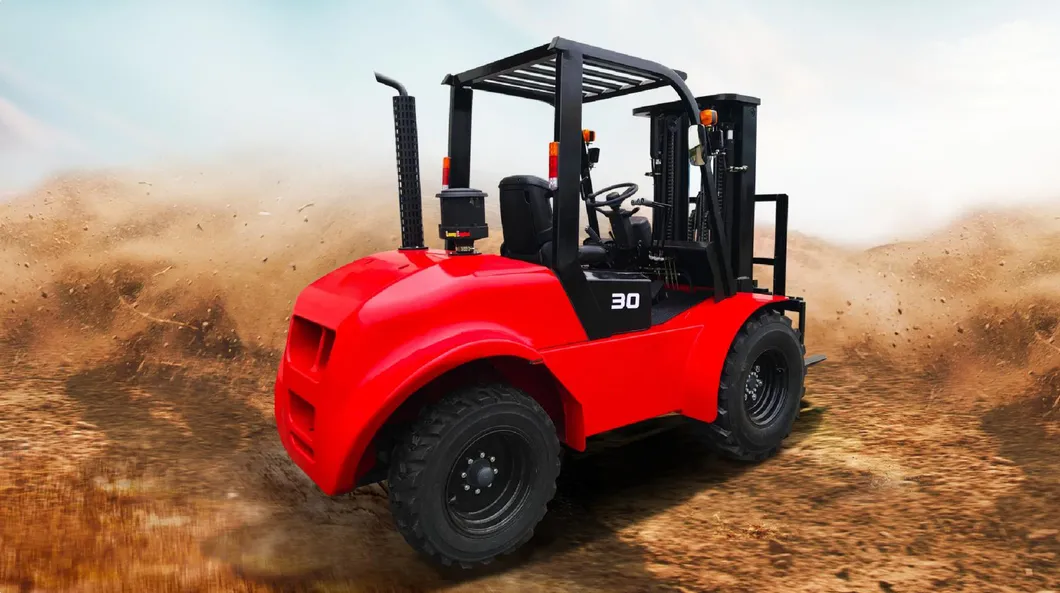

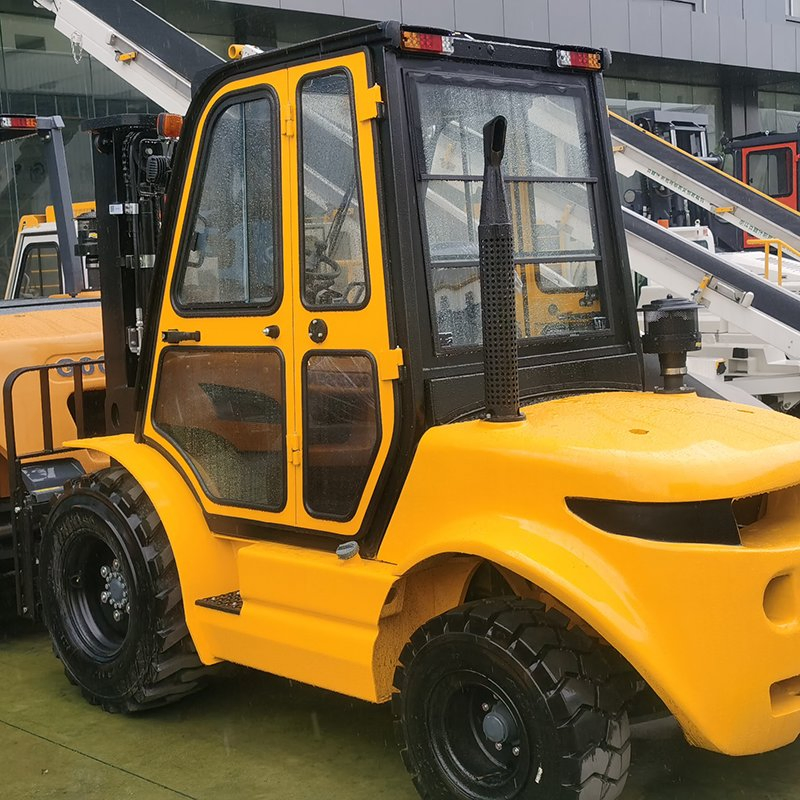

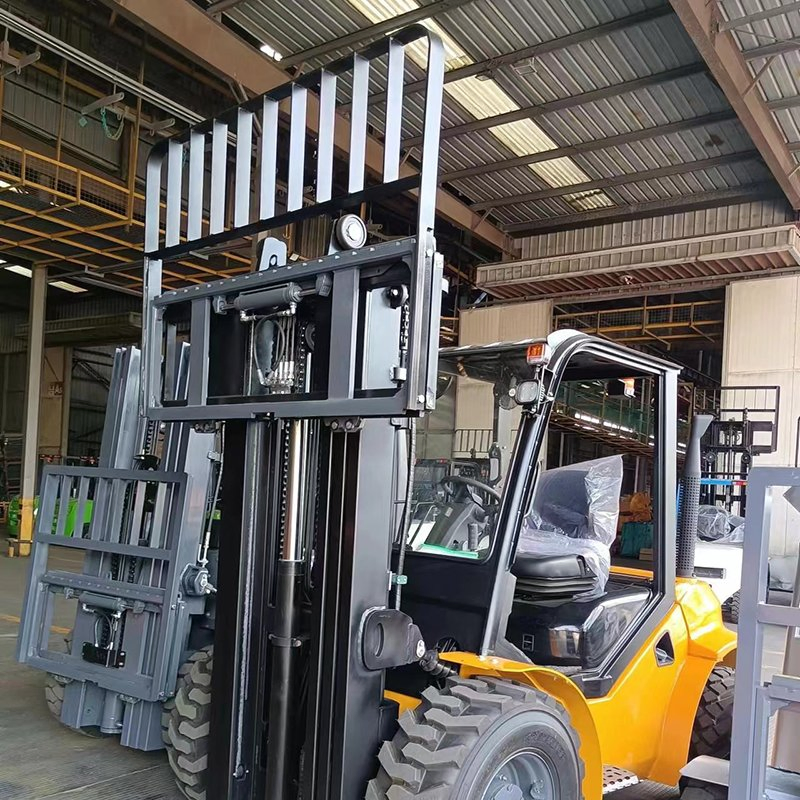

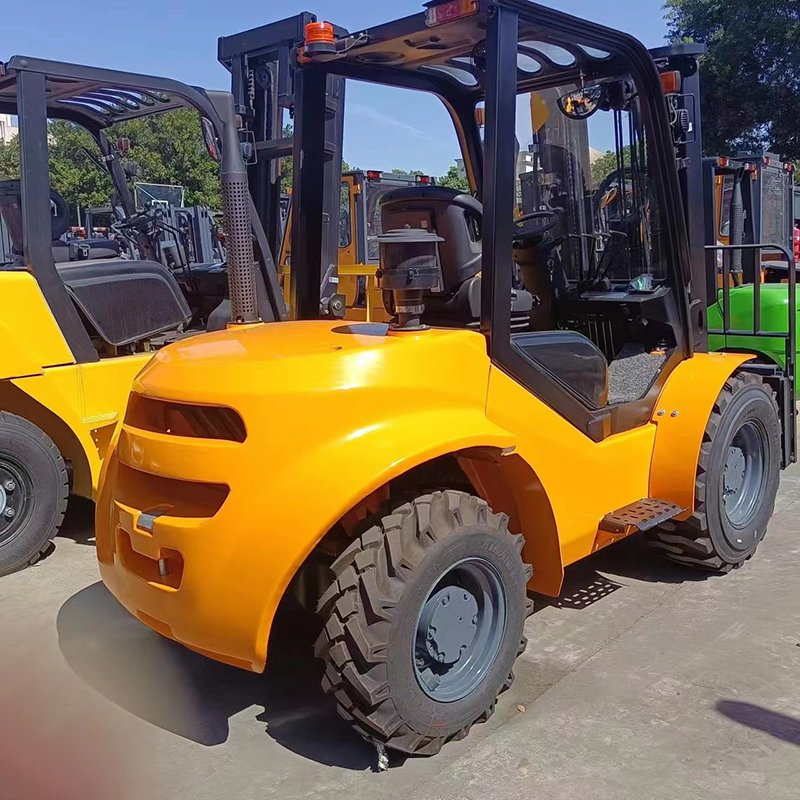

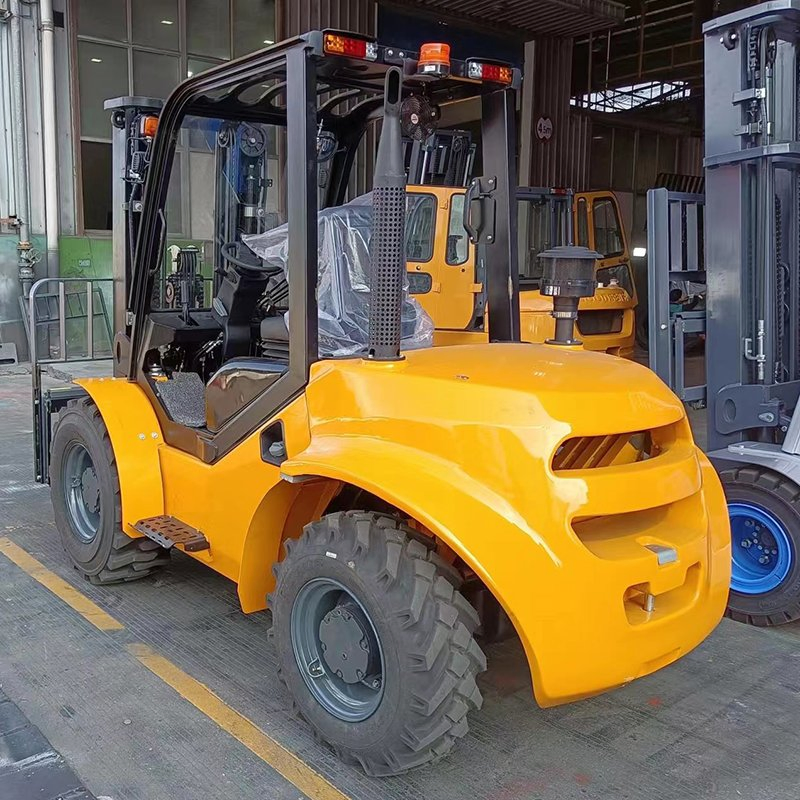

2ton 2.5ton 3ton 3.5ton 2WD 4WD Diesel Forklift Truck EPA or Euro 5 Emissions Rough Terrain Fork Lift

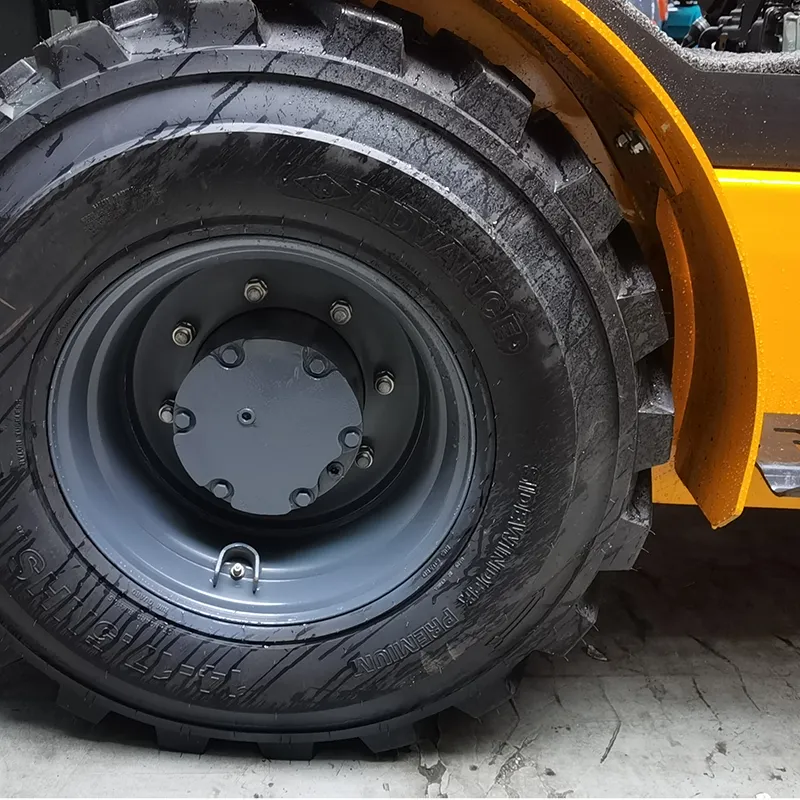

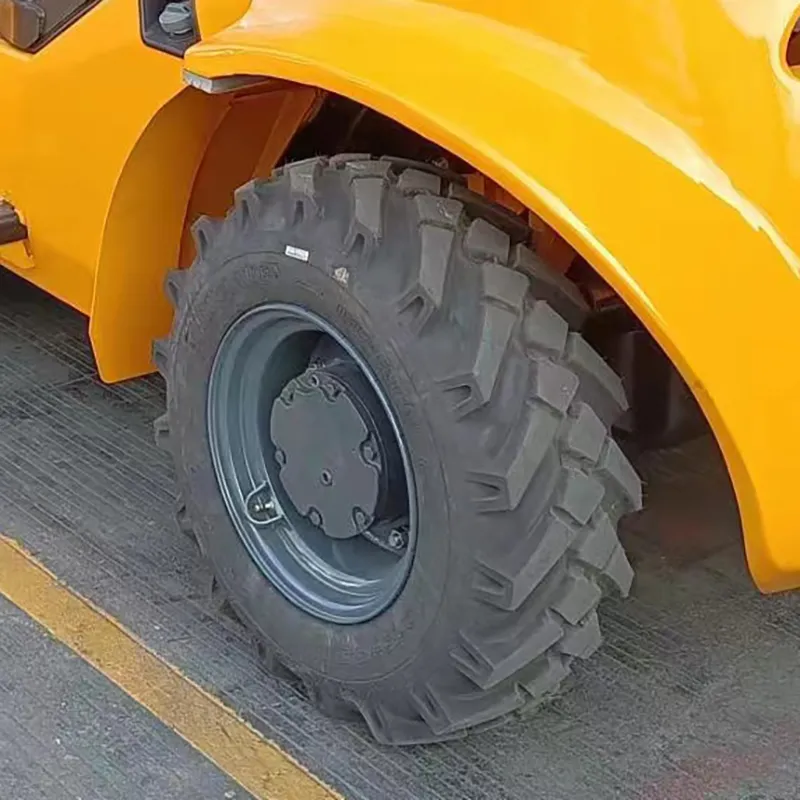

Whole car is equipped with super wide pattern vacuum off-road tires, off-road, through good performance.
Optional Accessories: Side shifter, rotator, tilting fork, feed shovel, side shifter pitch fork, paper roll clamp, round pipe clamp, soft clamp.

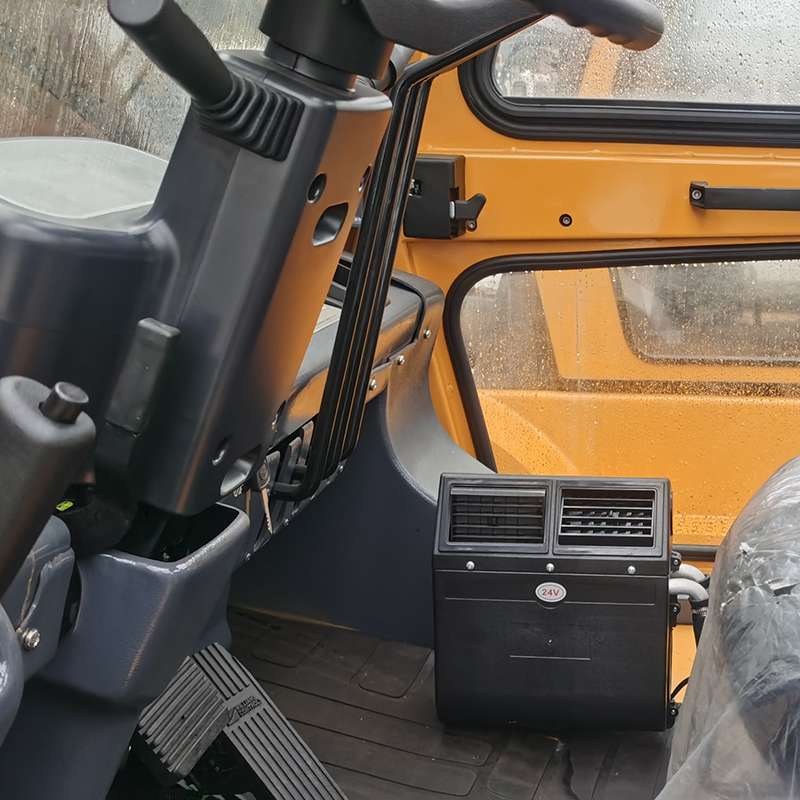

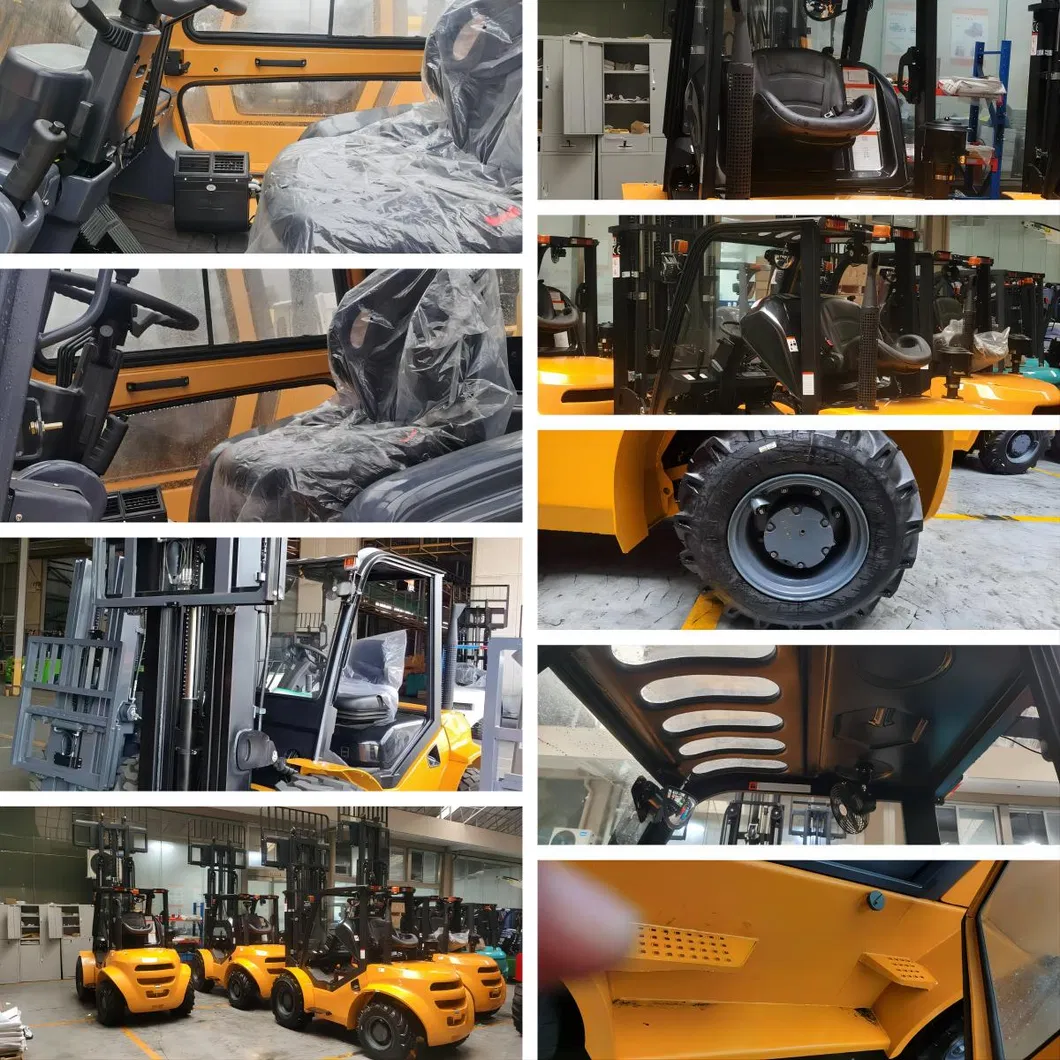

Optional Configuration: Cab, heater, double air filter, additional fire extinguisher, front windshield, fan, purification muffler, fire extinguishing muffler, rear working light, rotating warning light, etc.
| 2.5 - 4.0 Tons 2/4WD Rough Terrain Forklift Parameter | ||||
| Model | FD25-S | FD30-S | FD35-S | FD40-S |
| Driving Mode | Diesel | |||
| Capacity (kg) | 2500 | 3000 | 3500 | 4000 |
| Load Centre (mm) | 500 | |||
| Lift Height (mm) | 3000 | |||
| Mast Tilt Angle (deg) | 6/12 | |||
| Wheelbase (mm) | 1850 | |||
| Service Brake | Hydraulic | |||

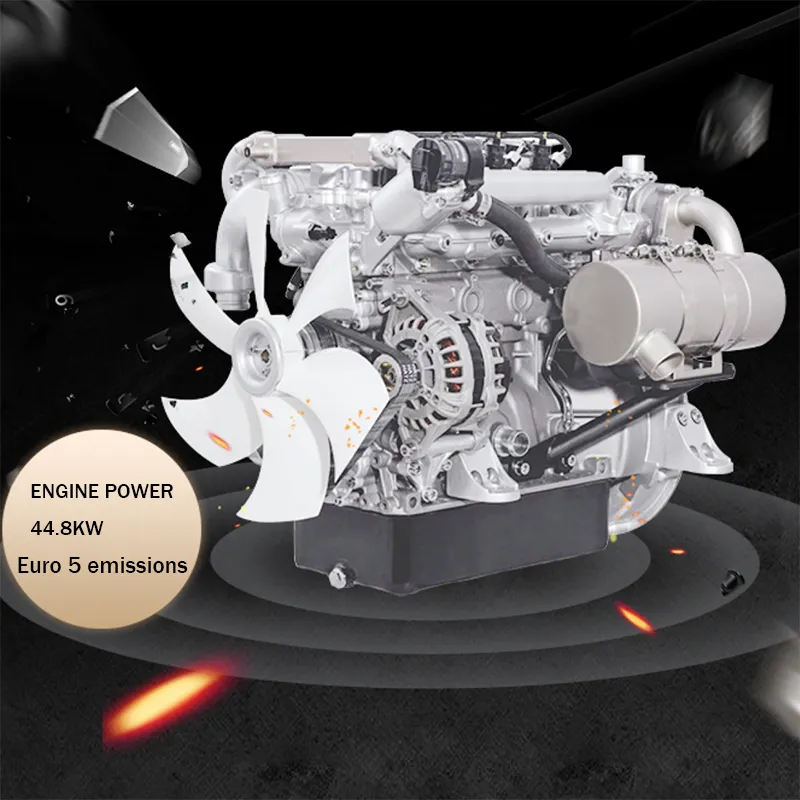

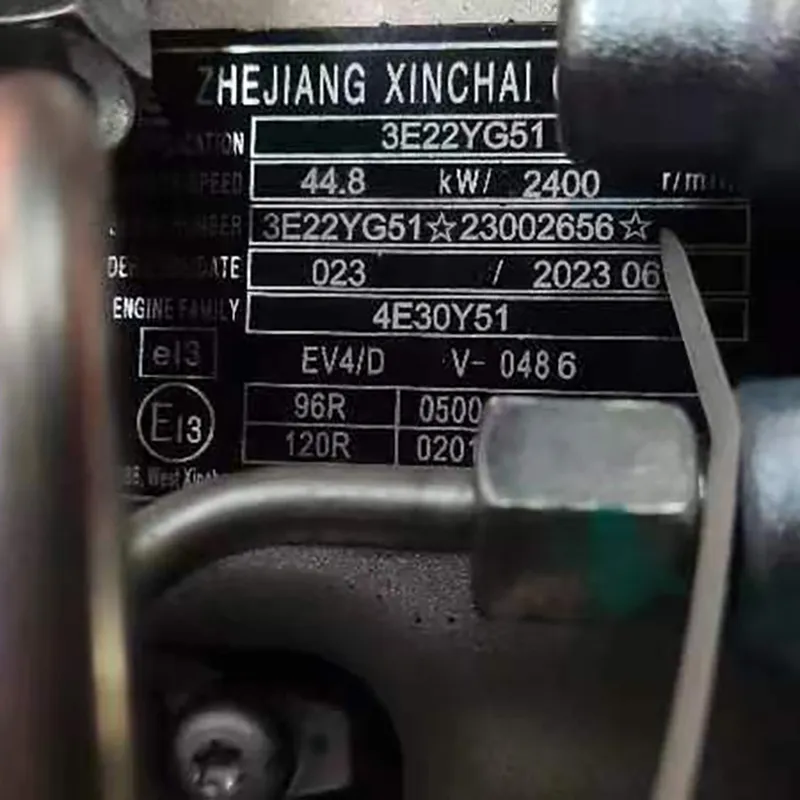

| Engine Model | A495BPG | A498BPG | ||
| Rated Power (Kw/r) | 42/2650 | 45/2500 | ||
| Service Weight (kg) | 4650 | 4800 | 4950 | |

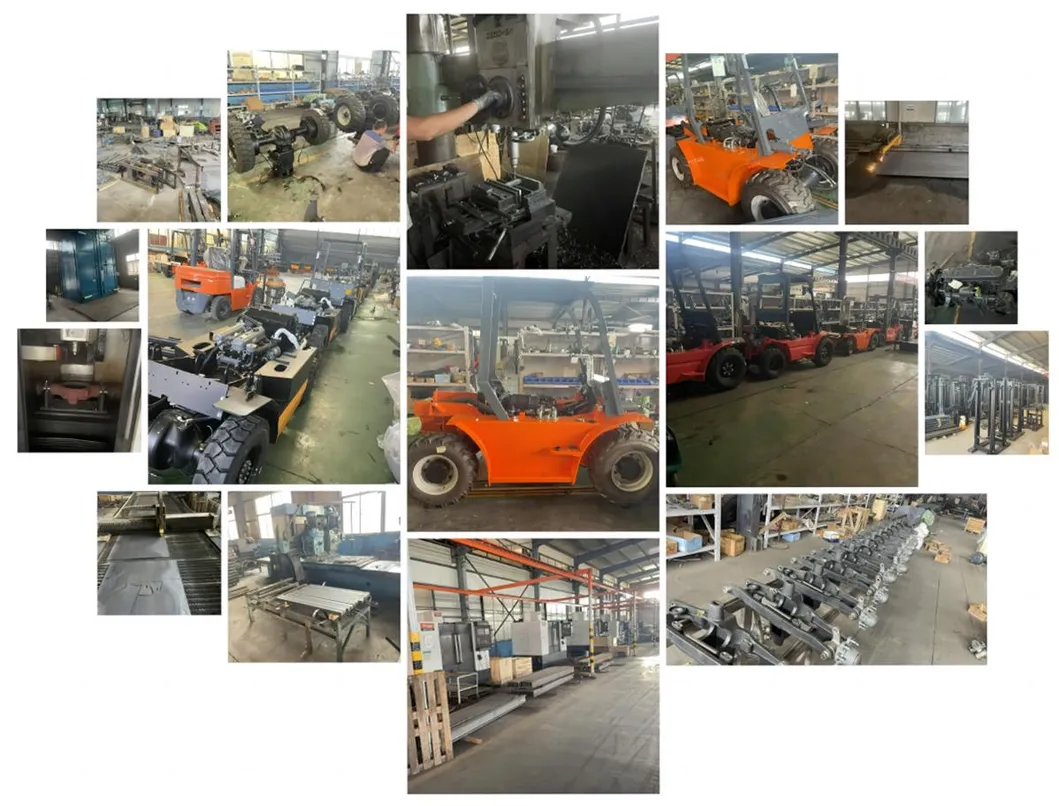

We are a manufacturer specializing in the production of handling equipment. We firmly follow the trend of international modern industrial and logistics equipment in the direction of convenience, intelligence, energy saving and environmental protection. Our products are widely favored by domestic and foreign customers for their high-quality and comprehensive services, safe, reliable and cost-effective performance, and have been successfully exported to more than 100 countries and regions around the world.
