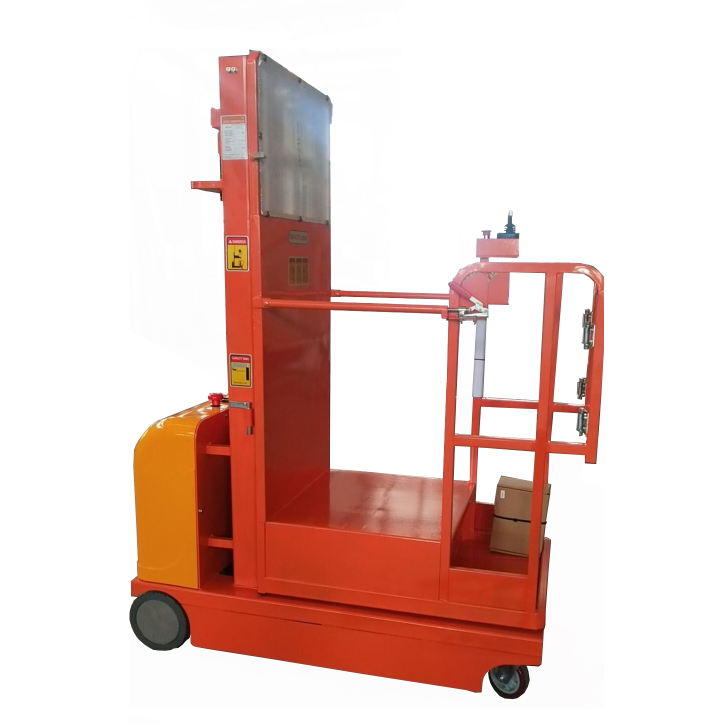

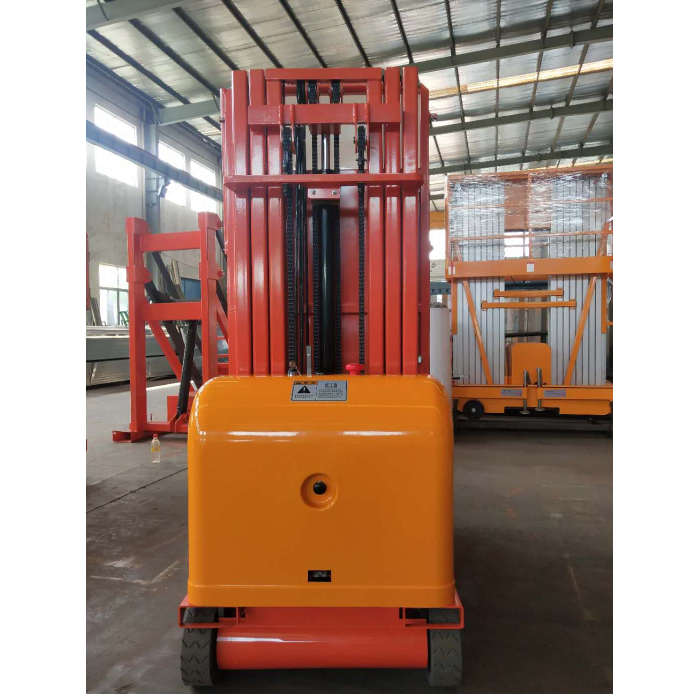

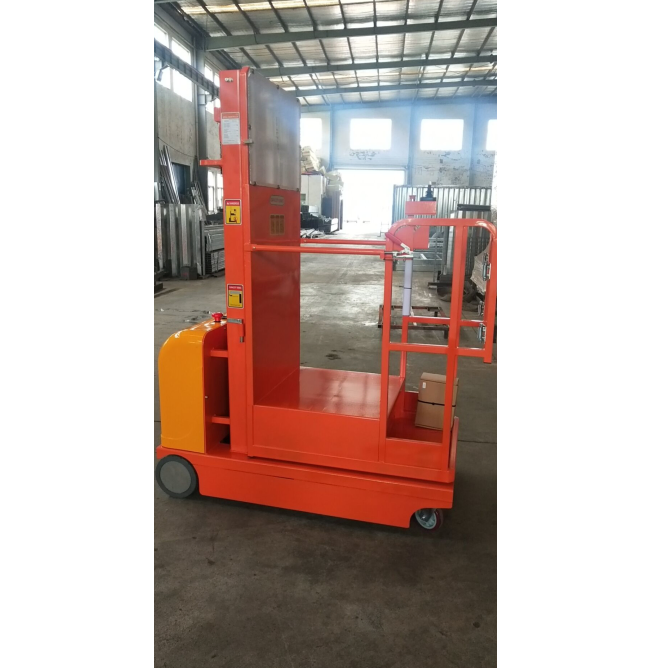

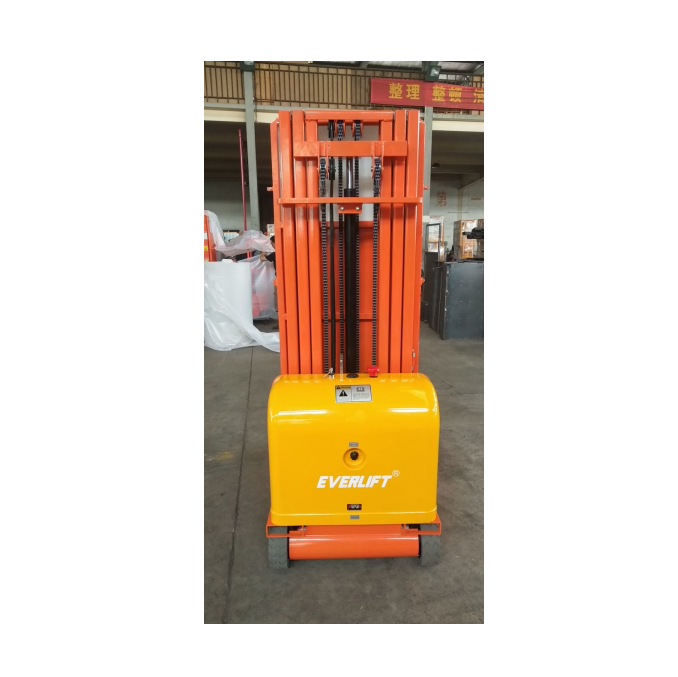

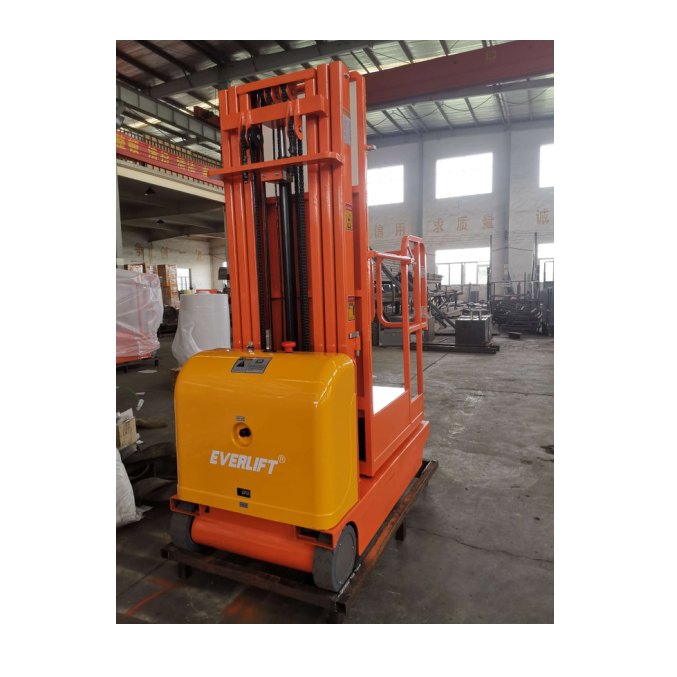

300kg Low Price Full Electric Moving Order Picker Truck

Customization:	Available
After-sales Service:	Support
Warranty:	1year

i

Basic Information

Model NO.

FSEP3-2.7

Application

Hotel, Warehouse

Lift Mechanism

Lift Chain

Carrying Capacity

300kg (Light Level)

Driven Type

DC Electric

Certification

CE

Type

Aerial Work Platform

Design Style

Traditional / Compact

!

Product Description

FSEP Series Aerial Order Picker

The FSEP Series Aerial Order Picker is a highly efficient, compact solution designed for warehouse stock picking, inventory management, and aerial maintenance. Featuring a stable mast system and intuitive controls, it allows operators to reach heights of up to 4.5 meters (working height approx. 6.5m) with ease and safety. Its slim profile makes it ideal for narrow aisles and confined indoor spaces.

KEY FEATURES

High Efficiency: Full electric lifting and driving for rapid, one-person operation.
Compact Design: Small turning radius (1600mm) ensures excellent maneuverability in tight warehouse layouts.
Safety First: Equipped with safety guardrails, emergency stop, and stable chassis with 15-20% climbing capacity.
Maintenance-Free: Powered by reliable aneroid (sealed) batteries with integrated chargers.
Durable Build: High-quality steel construction with a rated capacity of 300kg.

T

Technical Specifications

Model Number	Unit	FSEP3-2.7	FSEP3-3.3	FSEP3-4.0	FSEP3-4.5
Max. Platform Height	mm	2700	3300	4000	4500
Max. Machine Height	mm	4020	4900	5310	6000
Lift Rated Capacity	kg	300	300	300	300
Platform Size	mm	600×700	600×700	600×700	600×700
Max. Drive Speed (Stowed)	km/h	4	4	4	4
Min. Turning Radius	mm	1600	1600	1600	1600
Driving Motor	v/kw	2×24/0.4	2×24/0.4	2×24/0.4	2×24/0.4
Net Weight	kg	430	450	660	680

P

Detailed Performance

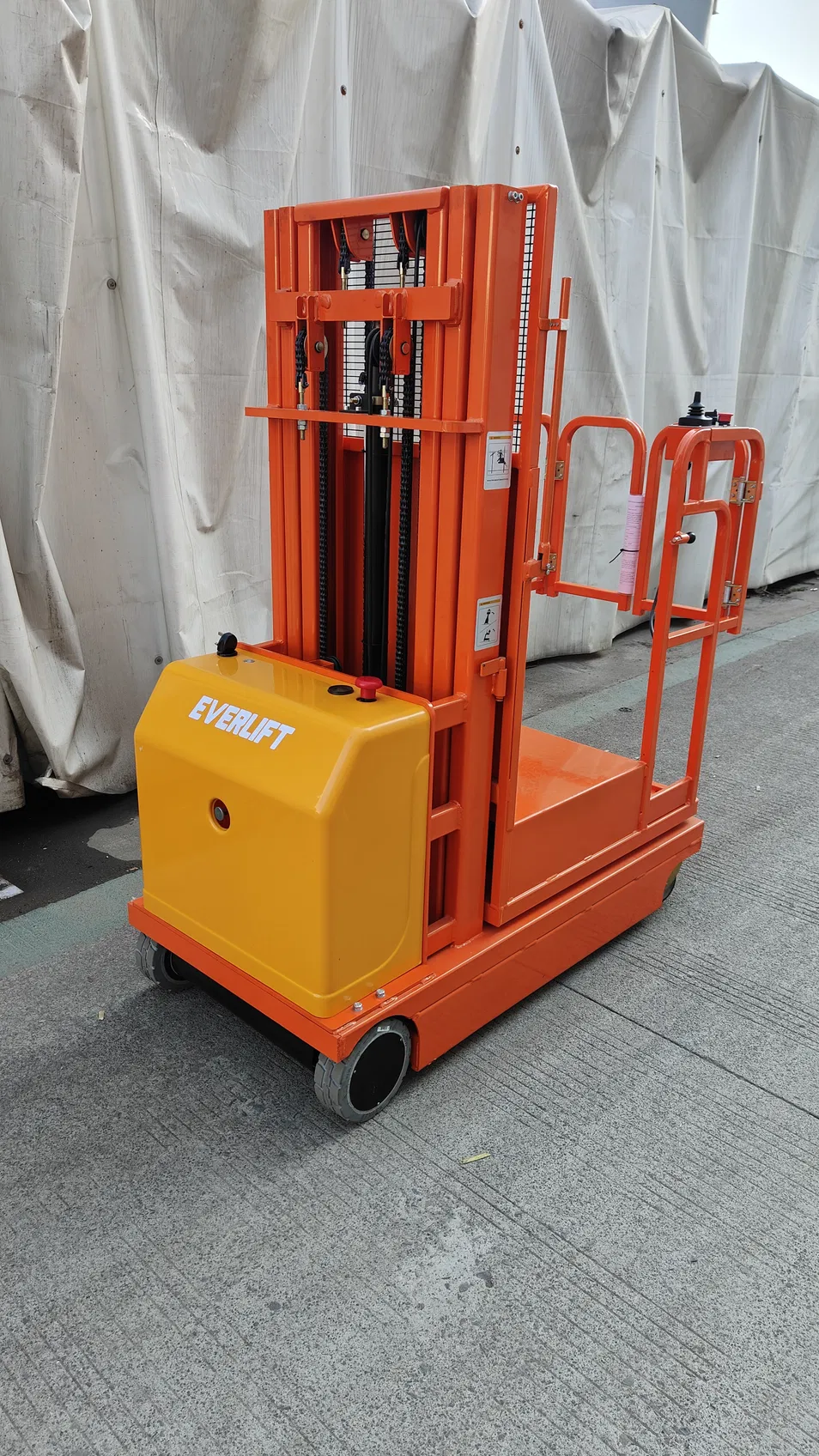

Maneuverability in Narrow Spaces
Specifically engineered for high-density environments. With a chassis width of only 760mm, it effortlessly navigates narrow aisles and standard doorways.

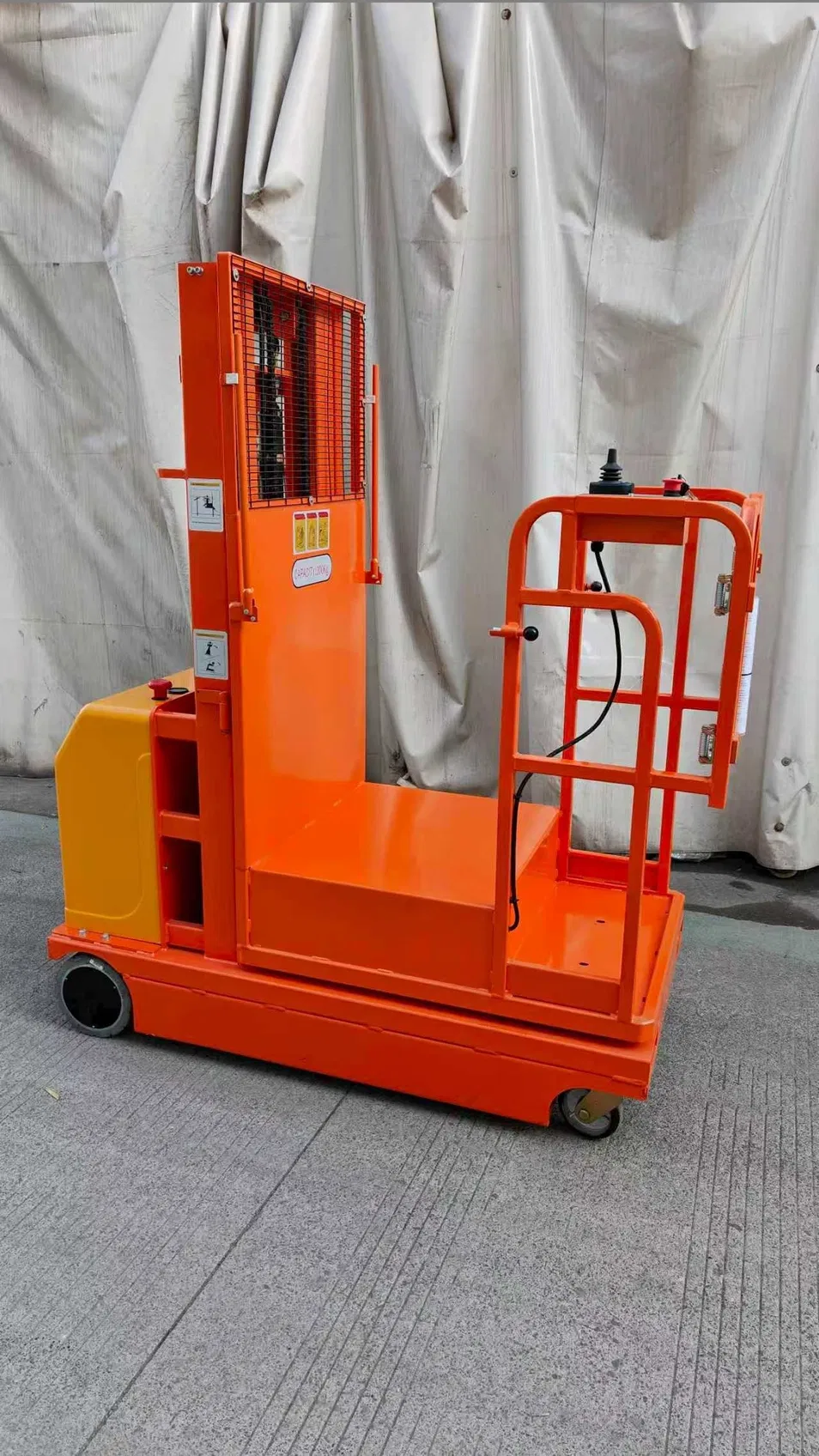

Intelligent Power System
Equipped with high-capacity sealed batteries and a smart charging system, ensuring long cycles with minimal maintenance.

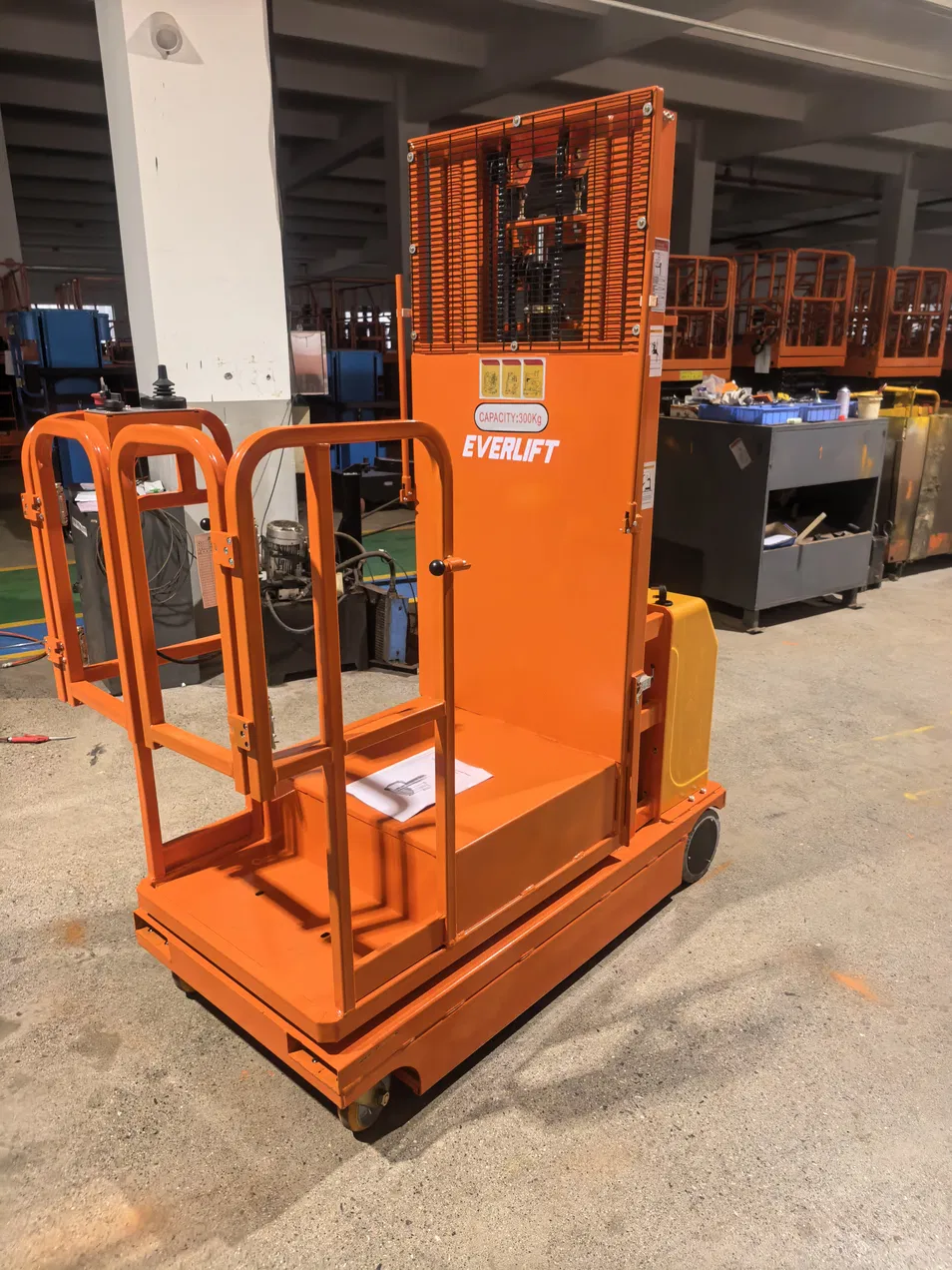

Ergonomics & Safety
Features a robust mast for stability at 4.5m, anti-slip flooring, and secure guardrails for operator confidence.

?

Frequently Asked Questions

Q1: What is the maximum lift capacity of this order picker?

A: The FSEP series has a rated lift capacity of 300kg, making it ideal for light-level warehouse tasks and stock picking.

Q2: Can it operate in very narrow aisles?

A: Yes, with a compact overall width of 760mm and a tight turning radius of 1600mm, it is designed specifically for narrow aisle accessibility.

Q3: How long does it take to charge the battery fully?

A: The standard DC power system usually requires 8-10 hours for a full charge using the integrated 24V/15A charger.

Q4: What are the primary safety features included?

A: It includes safety guardrails, an emergency stop button, automatic speed reduction when elevated, and a stable chassis designed for 15-20% climbing capacity.

Q5: Is the battery maintenance-free?

A: Yes, it uses aneroid (sealed) batteries which do not require water refilling, significantly reducing maintenance efforts and costs.

Q6: What heights can the platform reach?

A: Depending on the model, the maximum platform height ranges from 2700mm to 4500mm, offering a maximum machine height of up to 6000mm.
