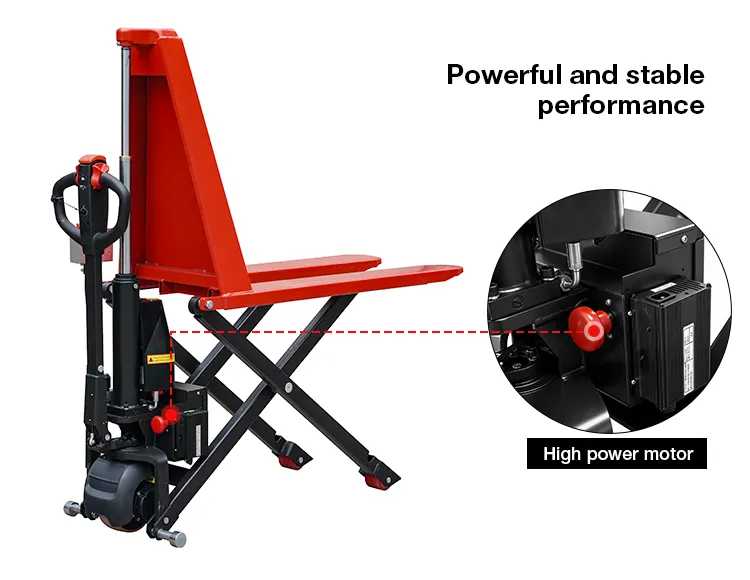

High-power motor delivers stable output and strong lifting force, ensuring smooth operation under load.

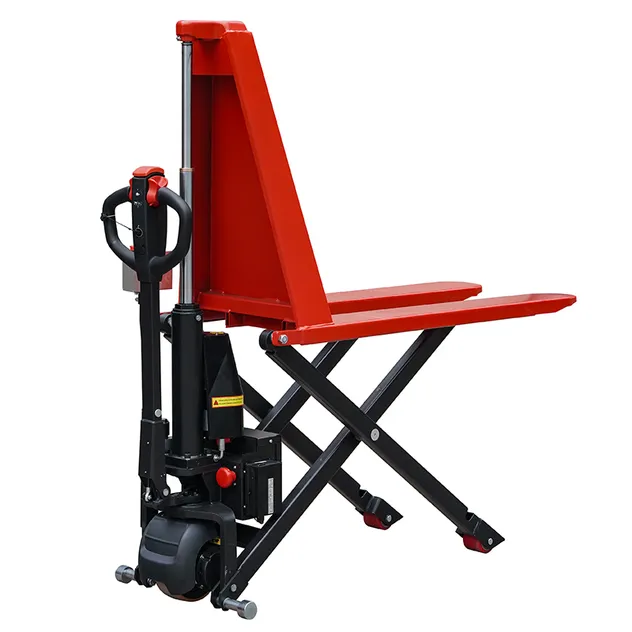

Equipped with dual-stage piston rods, enabling faster lift speed and higher lift height, suitable for different working heights. Battery and control system remain stationary during lifting for higher stability.

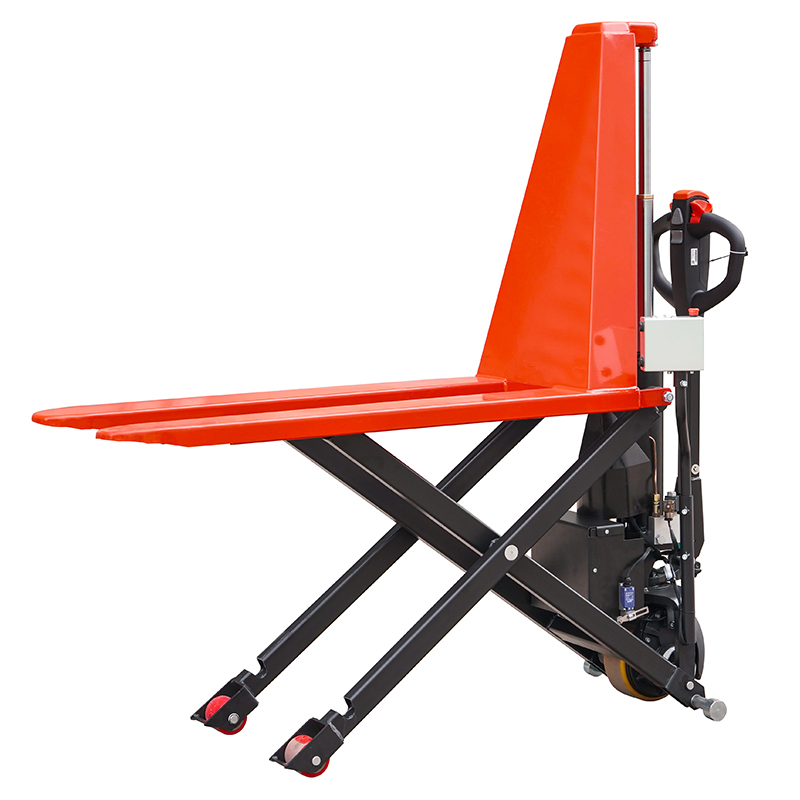

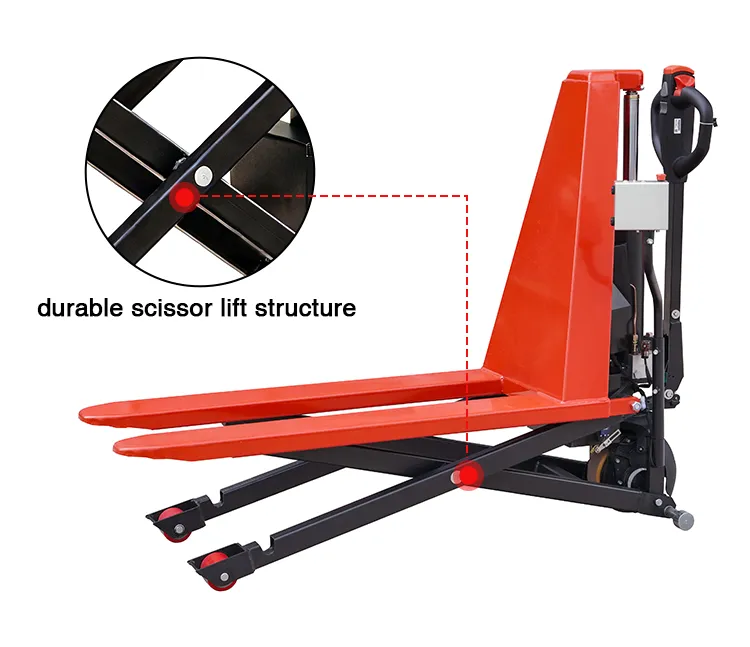

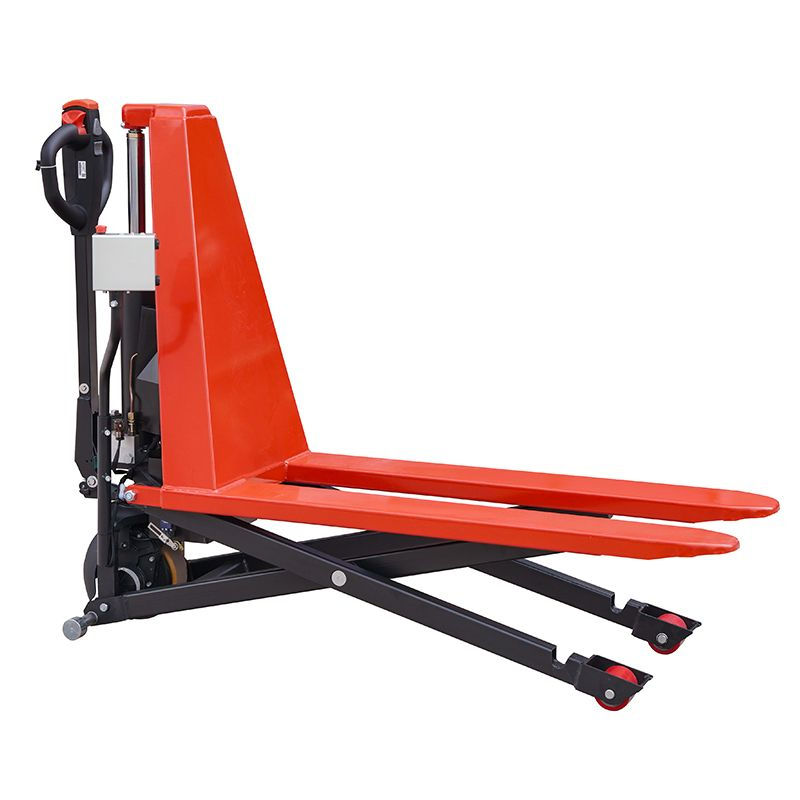

The scissor lift structure enables stable elevation of goods to desired heights, ideal for warehouse picking and light assembly tasks.

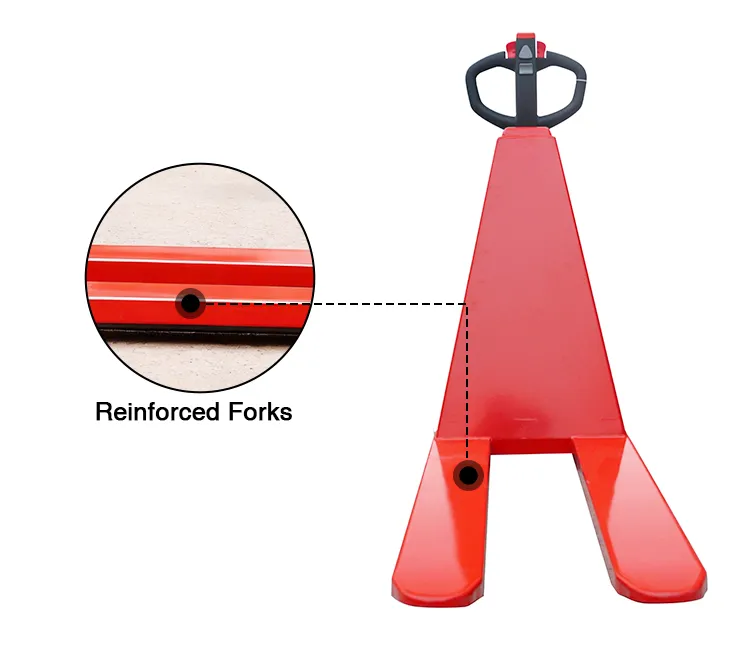

Thickened high-strength steel forks with strong load capacity, durable and resistant to deformation for high-frequency industrial use.
| Model | GBC10 | GBC15 |
|---|---|---|
| Load Capacity (kg) | 1000 | 1500 |
| Fork Length (mm) | 1150 | 1150 |
| Fork Width (mm) | 160 | 160 |
| Outside Fork Width (mm) | 540 / 680 | 540 / 680 |
| Lowered Height (mm) | 85 | 85 |
| Lifting Height (mm) | 800 | 800 |
| Wheel Type | Polyurethane | Polyurethane |
| Turning Radius (mm) | 1350 | 1350 |
| Operation | Electrical | Electrical |
| Overall Length (mm) | 1700 | 1700 |
| Weight (kg) | 150 | 165 |
| Warranty | 12 months | 12 months |
