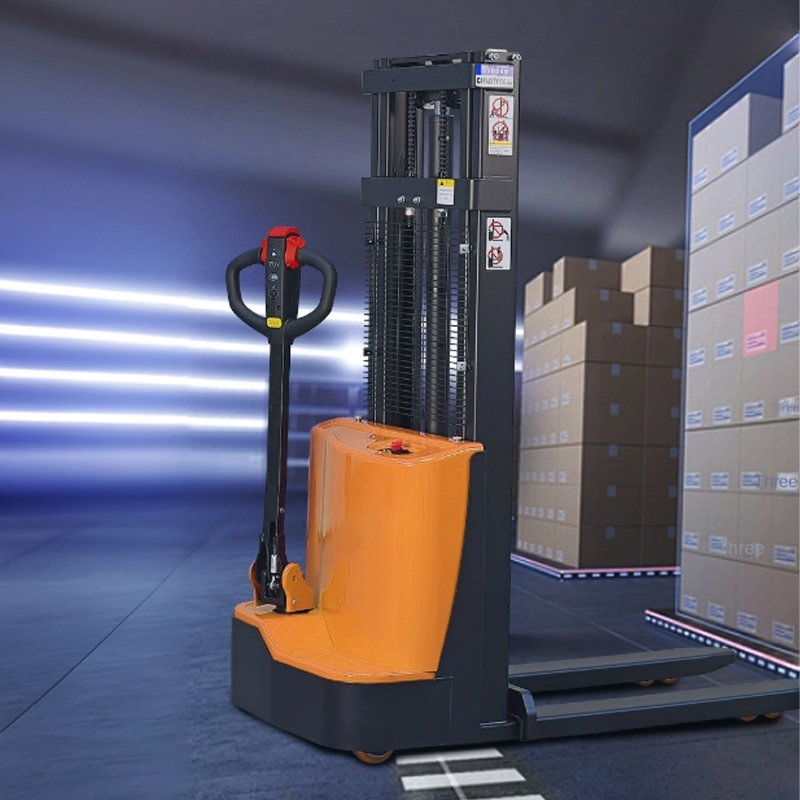

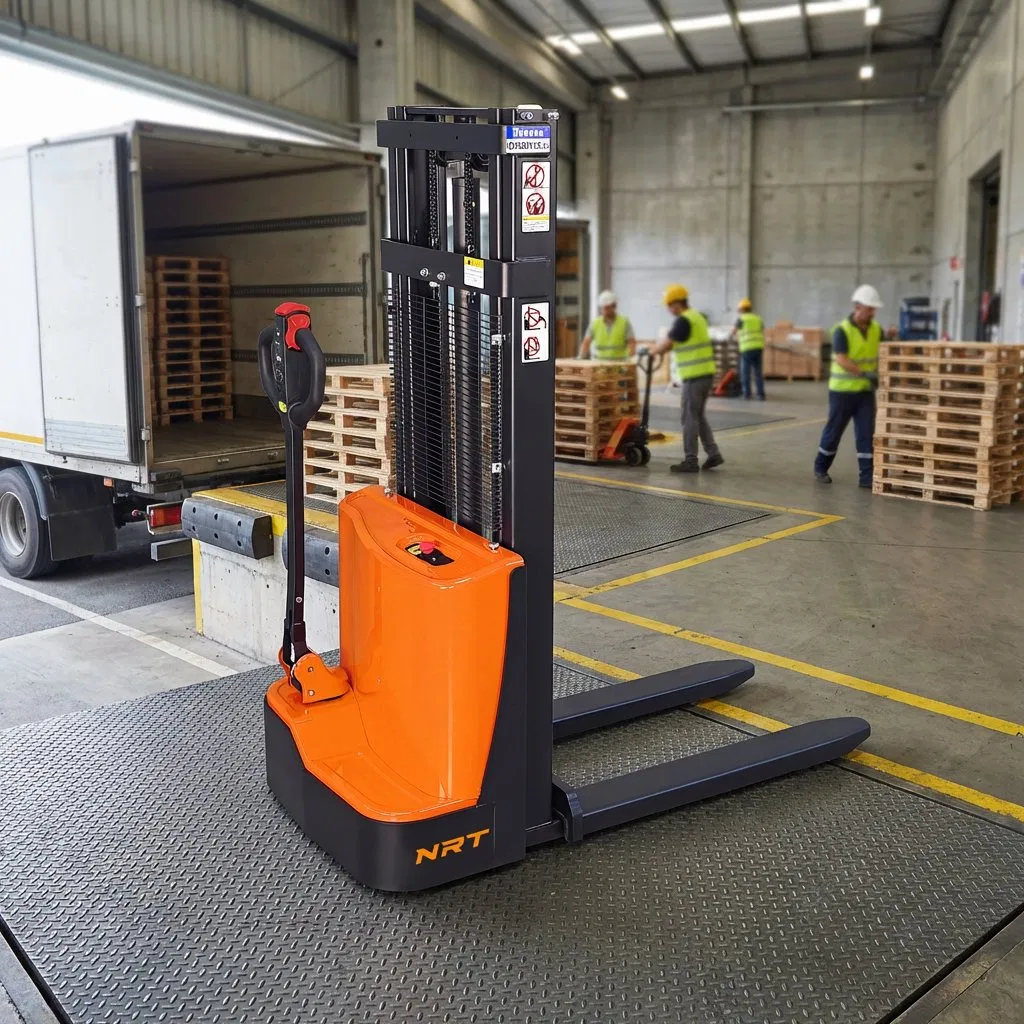

Nrt High Lifting Reach Truck Walkie Type Electric Pallet Stacker

1 / 5

Nrt High Lifting Reach Truck Walkie Type Electric Pallet Stacker

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	1 Years

Send Inquiry

Product Description

Product Overview

Model NO.

ND15Q01LD

Type

Stacker

Power

DC Motor

Load Capacity

1.5t

Fuel

Electric

Load Center

500mm

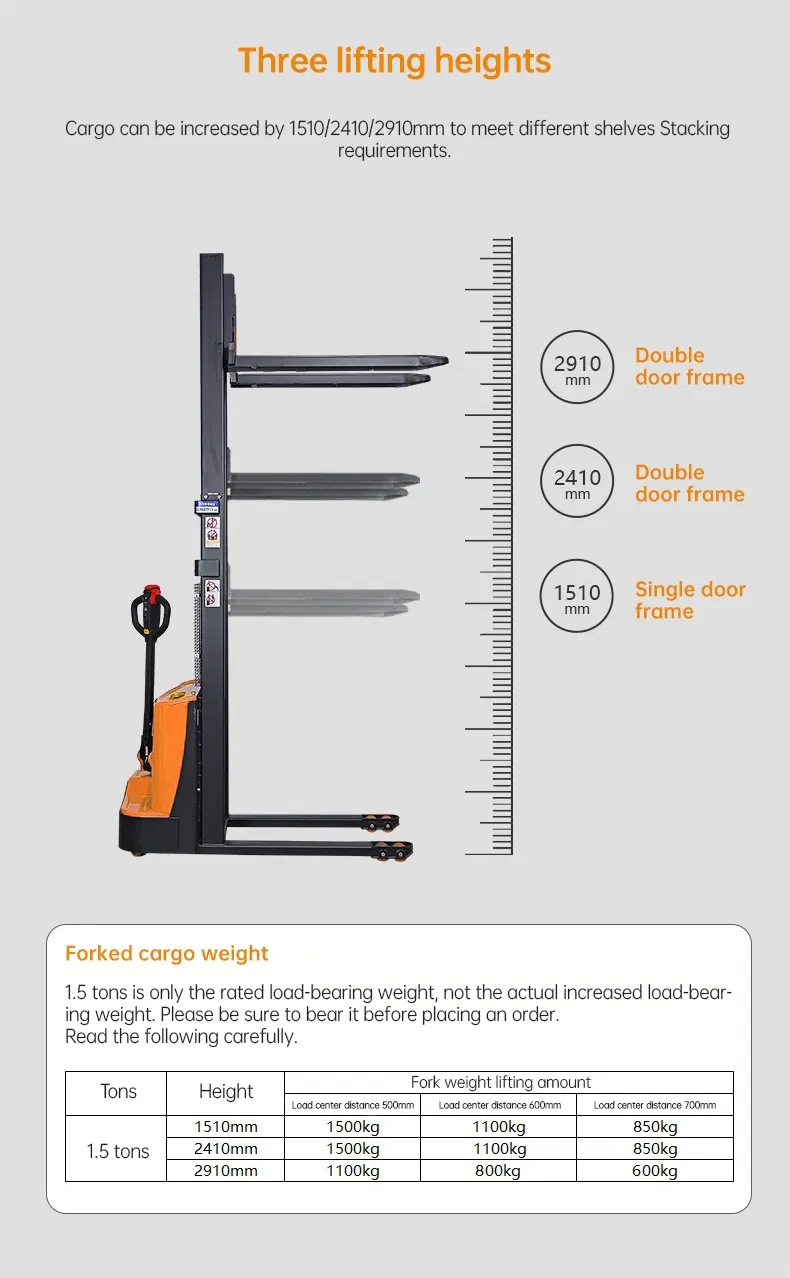

Lift Height

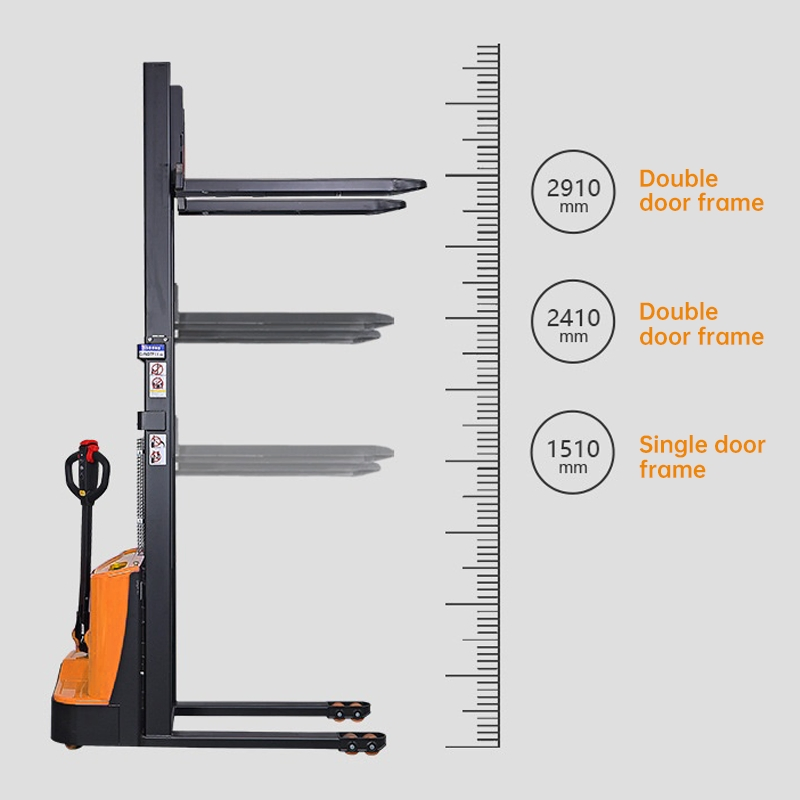

1510/2410/2910mm

Certification

CE, PSE

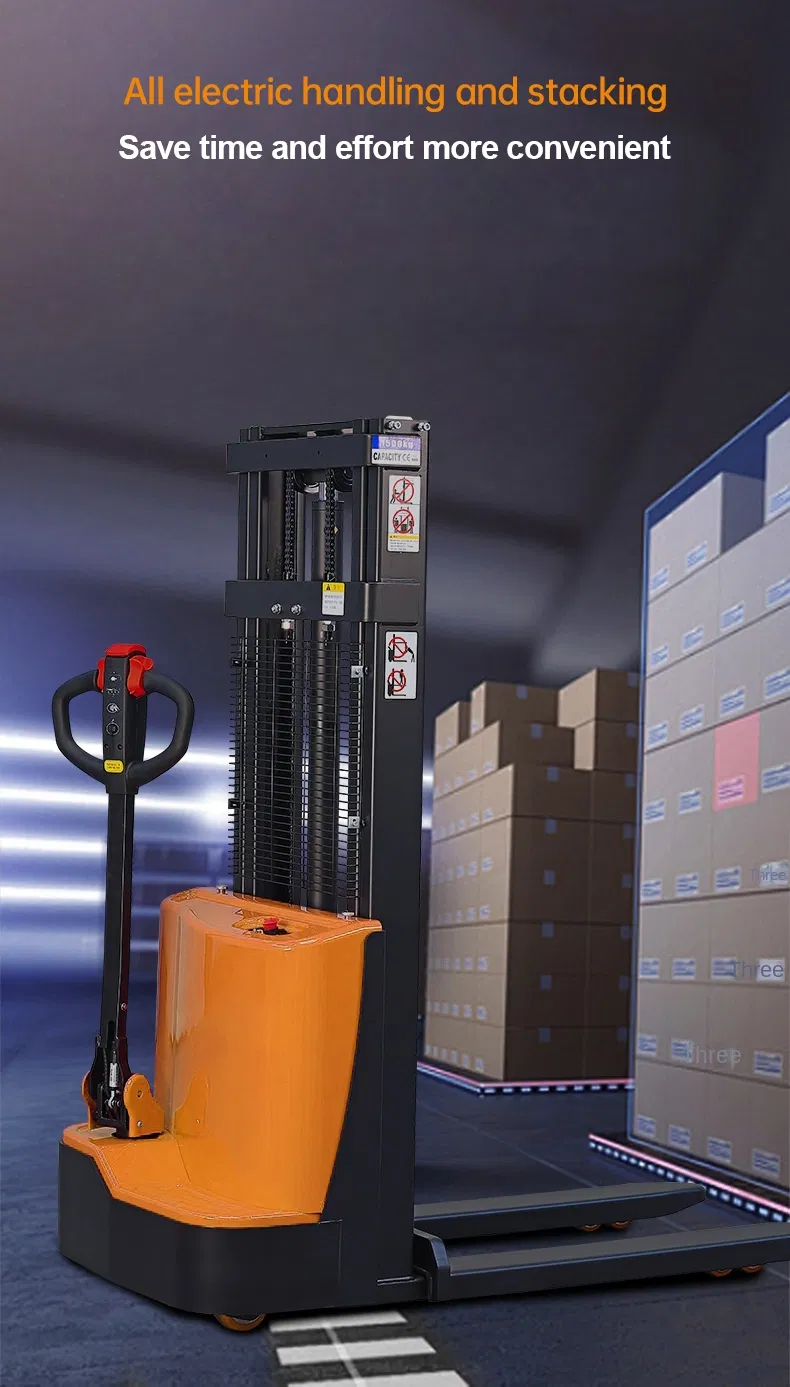

ND15Q01LD 1.5T Electric Pallet Stacker

The ND15Q01LD is a professional 1.5T walk-behind electric pallet stacker designed for efficient warehouse stacking operations. It is equipped with a high-performance 24V85Ah battery featuring low-power protection, a 0.75kW drive motor, and a 2.2kW lifting motor. With travel speeds up to 4km/h and a maximum lifting height of 2910mm, it ensures productivity in demanding environments.

⚙️

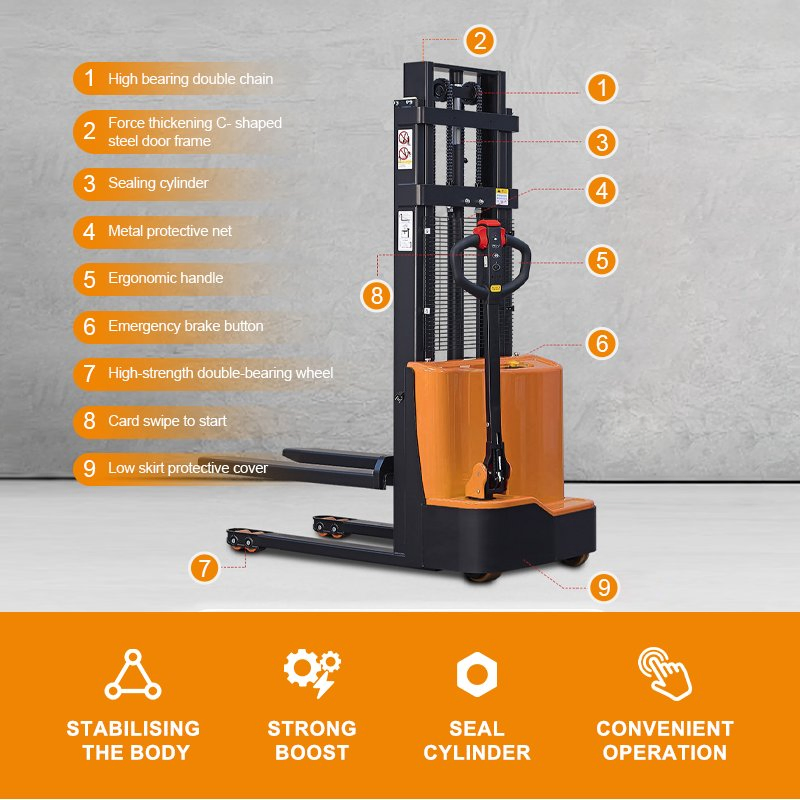

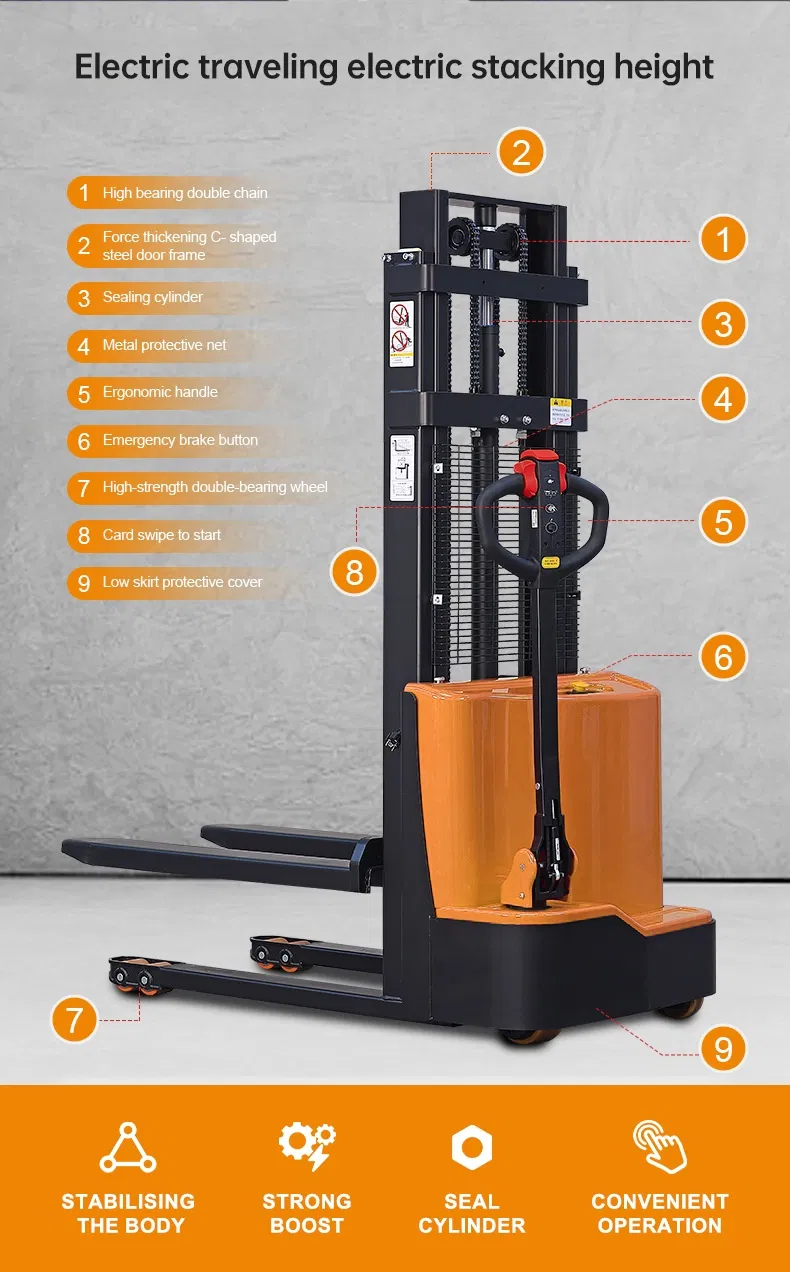

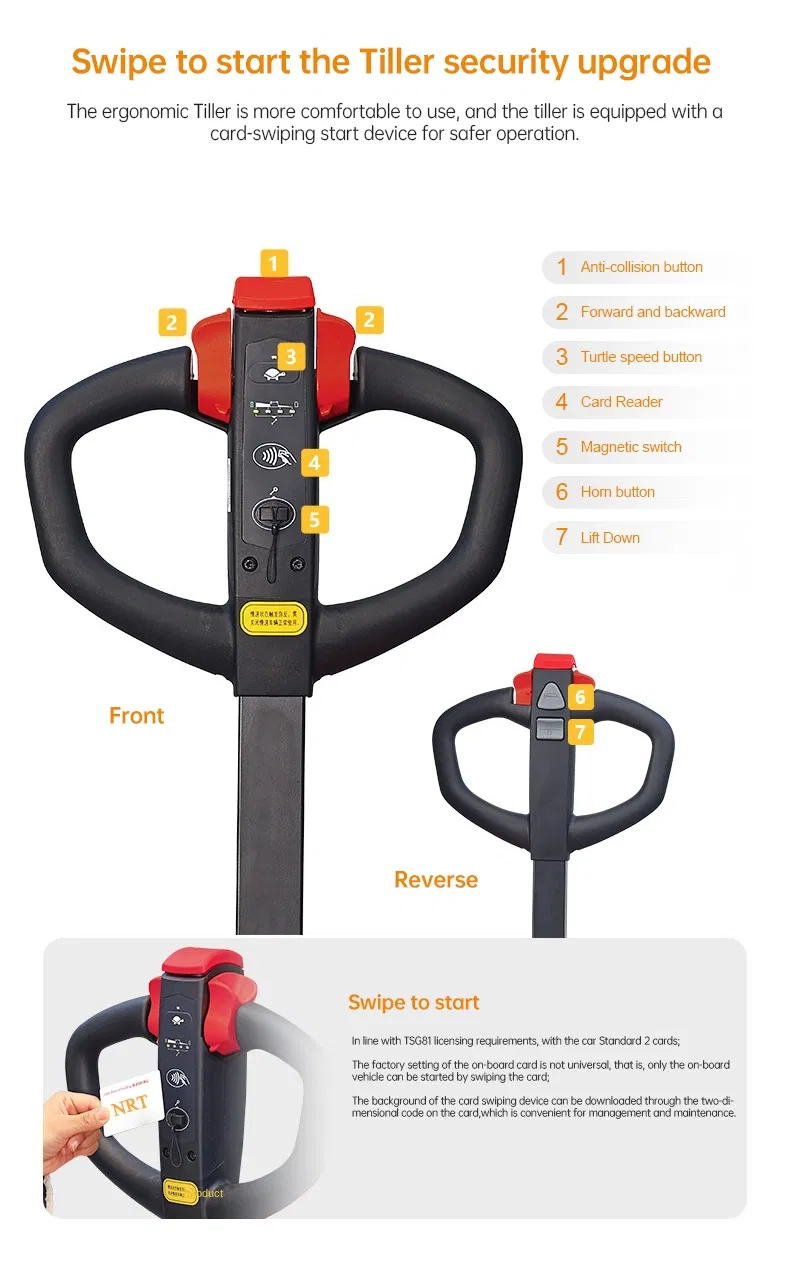

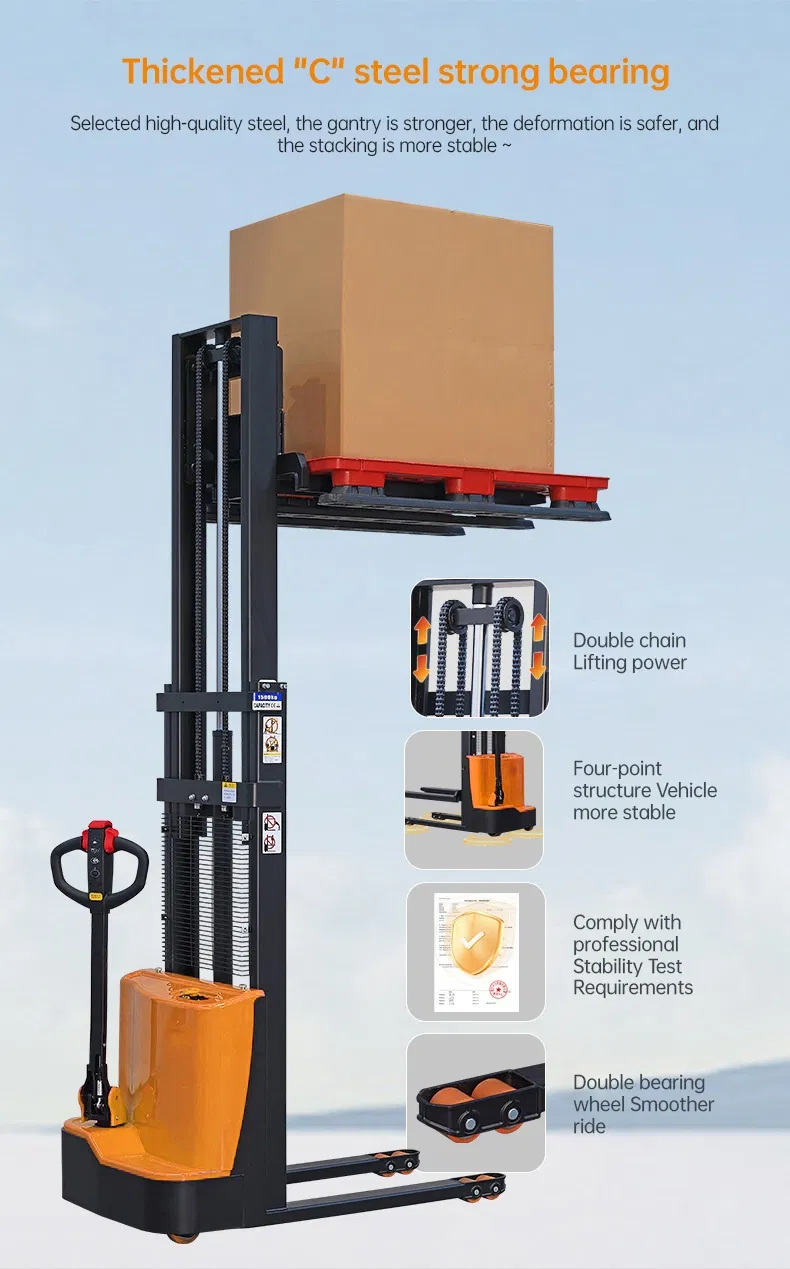

Key Features: Integrated rubber-coated handle, one-click creep speed for narrow spaces, magnetic card startup for security, and a C-type alloy steel mast for superior stability.

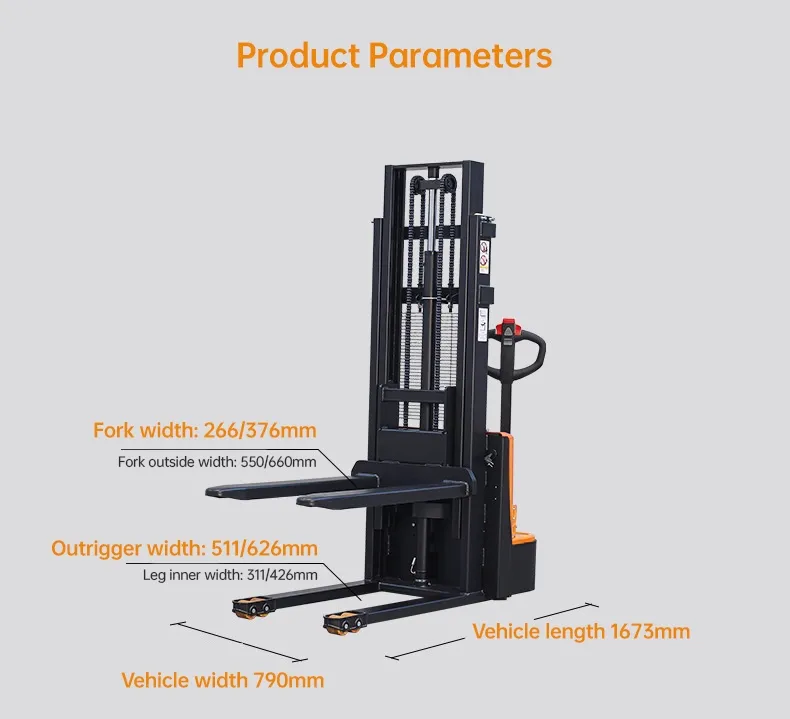

Product Parameters

Item	Pallet Stackers
Rated Load	1500kg
Fork Size	60x142x1150mm
Height Of Fork From Ground	90mm
Weight	470kg
Driving speed (full load/no load)	3.5/4km/h
Climbing grade (full load/no load)	3%, 10%
Turning radius	1357mm

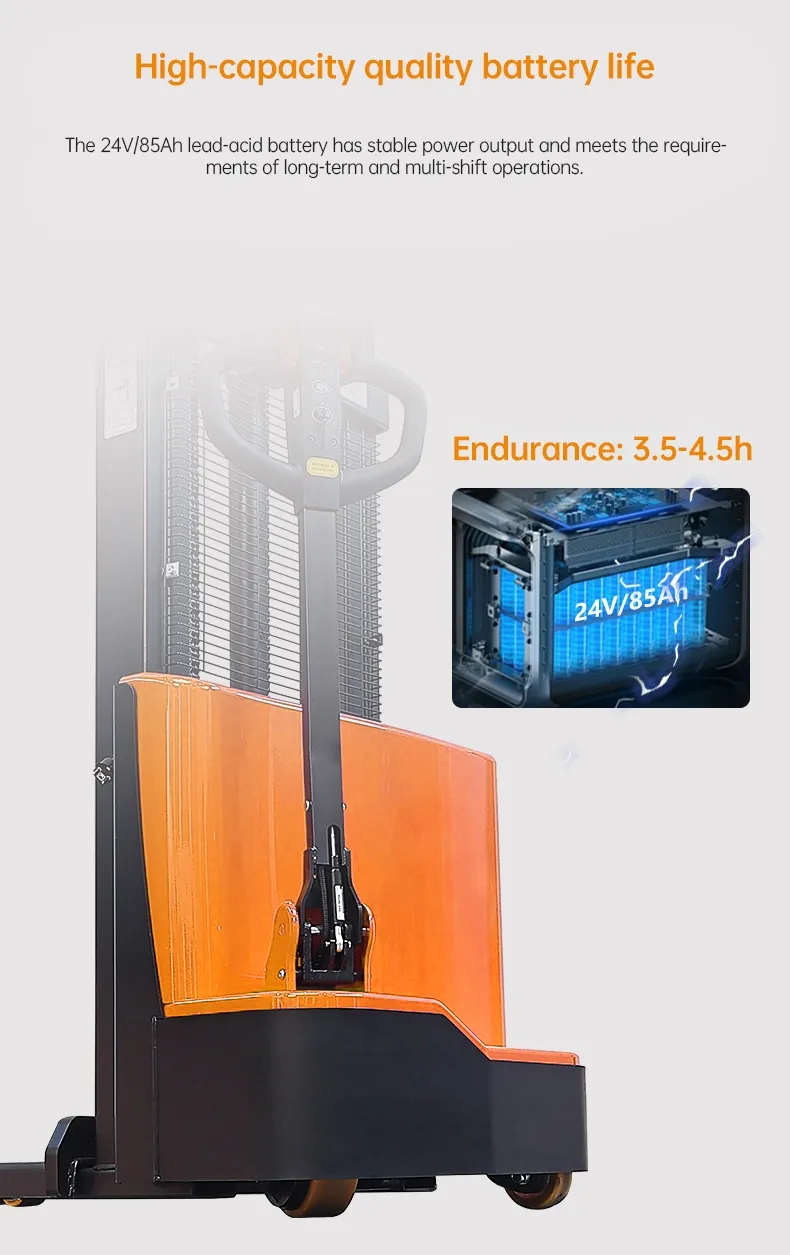

Battery Specification	24V/85Ah Lead-acid
Battery Cycle Times	400 times
Charger	24V/10Ah
Charging Duration	8h

Detailed Showcase

Packaging & Logistics

Package Size

167.30cm * 66.00cm * 209.00cm

Gross Weight

470.00kg

Lead Time

31 days (1 piece); To be negotiated (> 1 pieces)

Frequently Asked Questions

How long is the product warranty?

We provide a warranty of 12 months or 1000 hours, whichever comes first, starting from the date of shipment.

What is the standard delivery time?

For standard products, stock is often available for immediate delivery. Typically, production time is 15-20 days after receiving advance payment.

How long can the electric forklift work continuously?

Continuous working time is approximately 3-6 hours depending on battery capacity. A full charge usually takes 8-12 hours, and chargers feature automatic shut-off.

Do you offer customization or OEM/ODM services?

Yes, we can provide customized products based on specific requirements. Both OEM and ODM options are available with extensive experience in non-standard production.

What are the electrical specifications for chargers?

Chargers support various voltages (110V, 220V, 240V, 380V, 415V) in single or three-phase (50/60Hz). Plugs can be customized to USA, UK, AU, or EU standards.

Can we request a specific equipment color?

Yes, we can accommodate specific color requests to match your requirements.
