Overview & Basic Info
| Model |
QDD60-XD3, QDD70-XD3 Series |
| Type |
Electric Tow Tractor / Forklift |
| Power Source |
AC Motor (Electric) |
| Load Capacity |
6000kg - 10000kg |
| Lift Height |
3000mm - 5000mm |
| Battery Capacity |
48V / 300Ah |
| Controller |
Curtis / Inmotion |
| Tyres |
Pneumatic / SE |

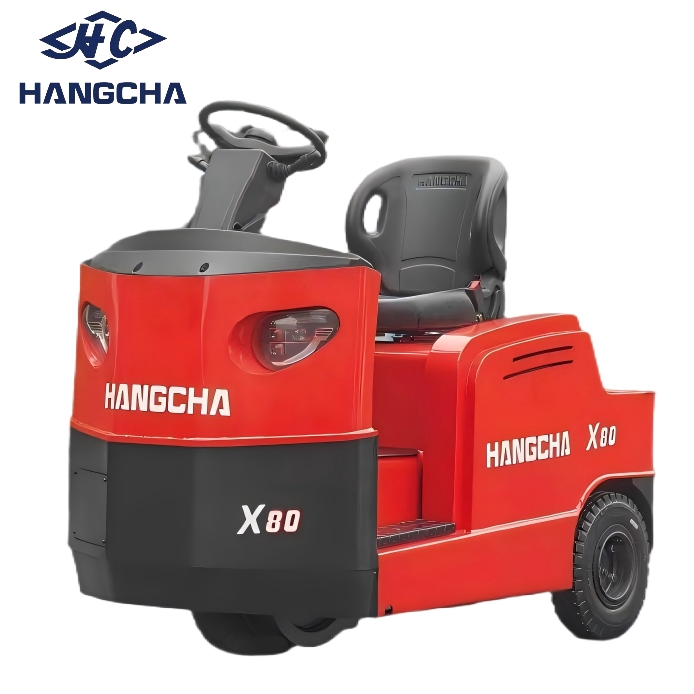

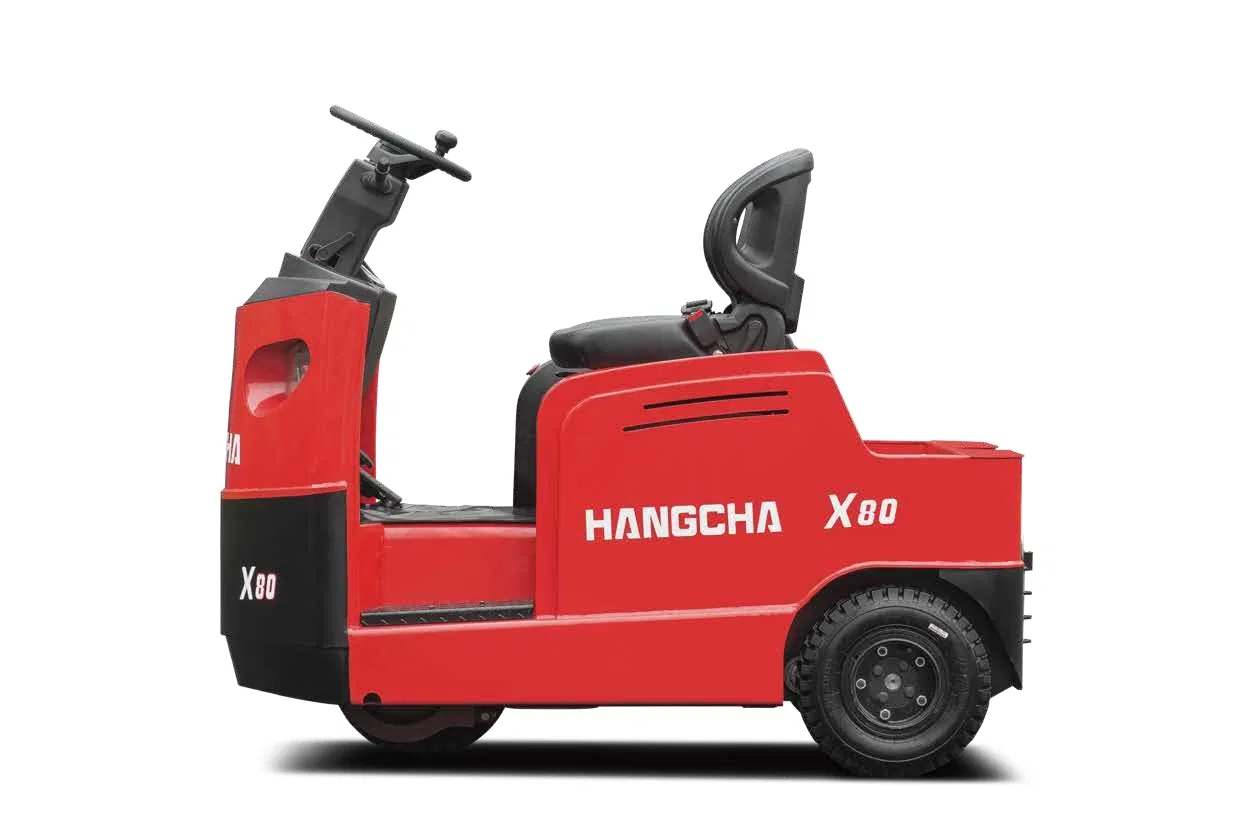

X Series Electric Tow Tractor Features
✓

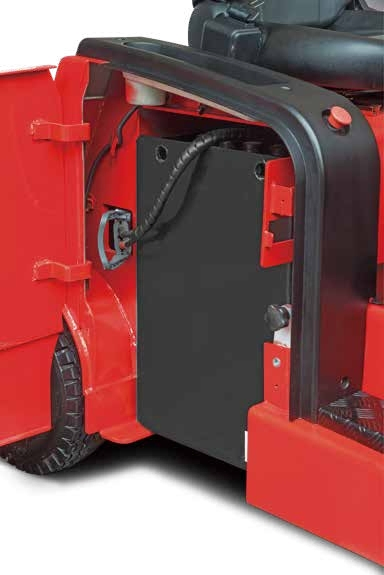

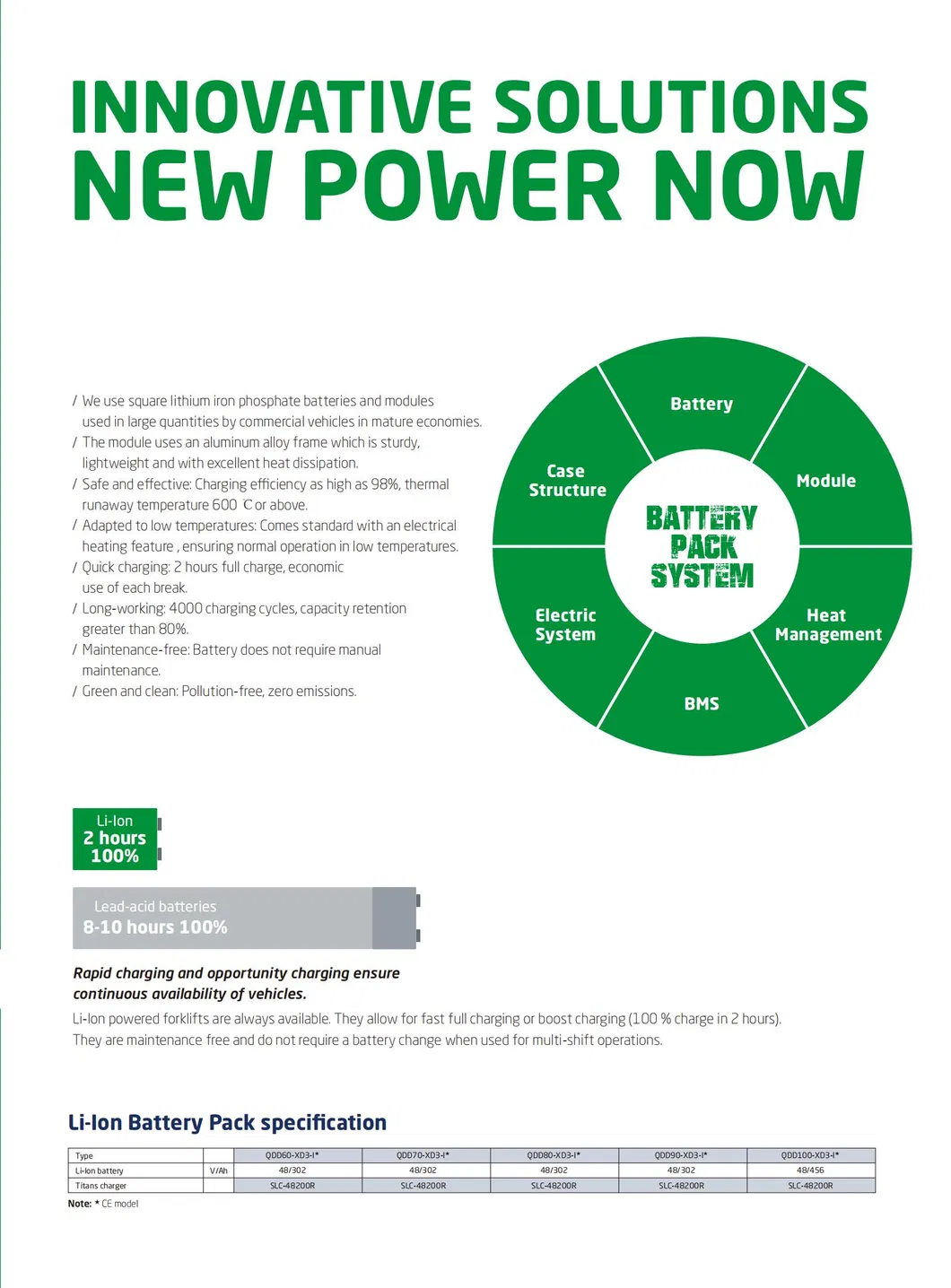

Square lithium iron phosphate batteries used in mature commercial vehicle modules.
✓
Aluminum alloy frame: sturdy, lightweight, and excellent heat dissipation.
✓
High efficiency: 98% charging efficiency with high thermal runaway safety (600ºC+).
✓
Low-temperature adaptation: Standard electrical heating for extreme environments.
✓
Quick charging: Achieve full charge in just 2 hours.
✓
Long life: 4000 charging cycles with over 80% capacity retention.
✓
Zero Maintenance: Battery does not require manual maintenance or watering.
✓
Eco-friendly: Pollution-free operation with zero emissions.
Technical Specifications (Lead-Acid)
| Model |
QDD60-XD3 |
QDD70-XD3 |
QDD80-XD3 |
QDD90-XD3 |
QDD100-XD3 |
| Drive Unit |
Electric |
Electric |
Electric |
Electric |
Electric |
| Load Capacity (kg) |
6000 |
7000 |
8000 |
9000 |
10000 |
| Rated Tractive Power (N) |
1500 |
1750 |
2000 |
2250 |
2500 |
| Wheelbase (mm) |
1035 |
1035 |
1035 |
1035 |
1250 |
| Travel Speed (Laden/Unladen) |
11.2/18 |
10.5/18 |
9.4/18 |
9.0/18 |
8.5/18 |
| Battery Voltage/Capacity |
48/300 |
48/300 |
48/360 |
48/360 |
48/420 |
Packaging & Shipping
Standard export nude packing with iron/wooden block fixed on container ground. FCL/LCL shipping options are available to meet global logistics requirements.
Frequently Asked Questions
What material handling solutions do you provide?
We offer a full series of electric forklifts, tow tractors, and genuine spare parts, providing comprehensive material handling equipment and customized solutions for industrial needs.
What is the typical delivery time for these tractors?
Standard 1.5-3.5T specifications usually take 25-30 days. For 4-10T models, the lead time is 30-35 days, while heavy-duty equipment above 10T requires 45-60 days.
Are custom colors or branding available?
Yes, we support special requests for different colors, logo placement, and other specific configuration requirements.
How long does it take to fully charge the lithium battery models?
The X Series lithium battery tractors feature quick-charging technology, allowing for a full charge in approximately 2 hours, making it highly efficient for multi-shift operations.
Can these tractors operate in cold storage environments?
Absolutely. Our units come standard with electrical heating features for the battery modules, ensuring reliable operation and performance even in low-temperature conditions.
What are the main maintenance requirements?
The electric AC drive system and lithium battery modules are virtually maintenance-free. Unlike lead-acid batteries, the lithium modules do not require manual watering or frequent acid checks.
