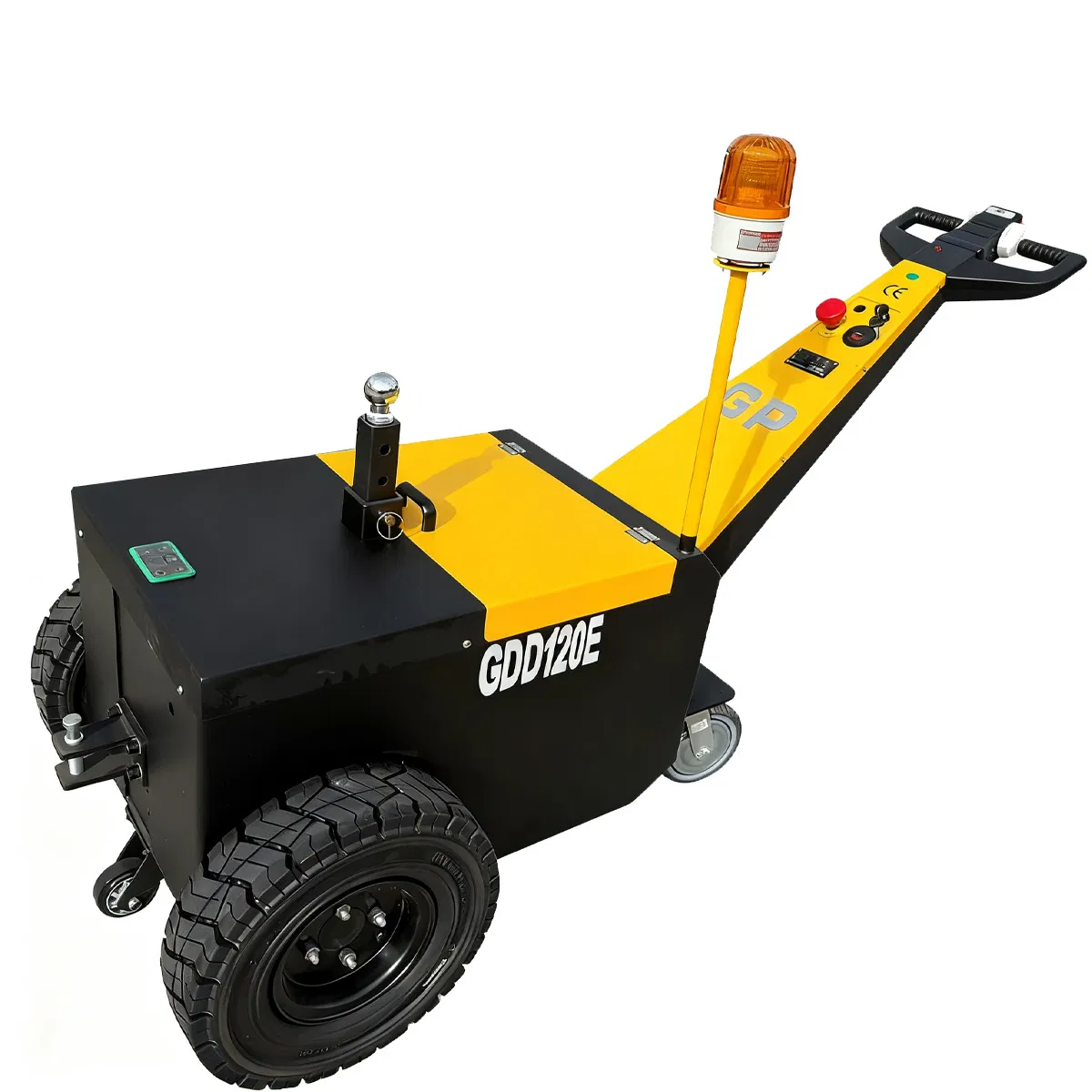

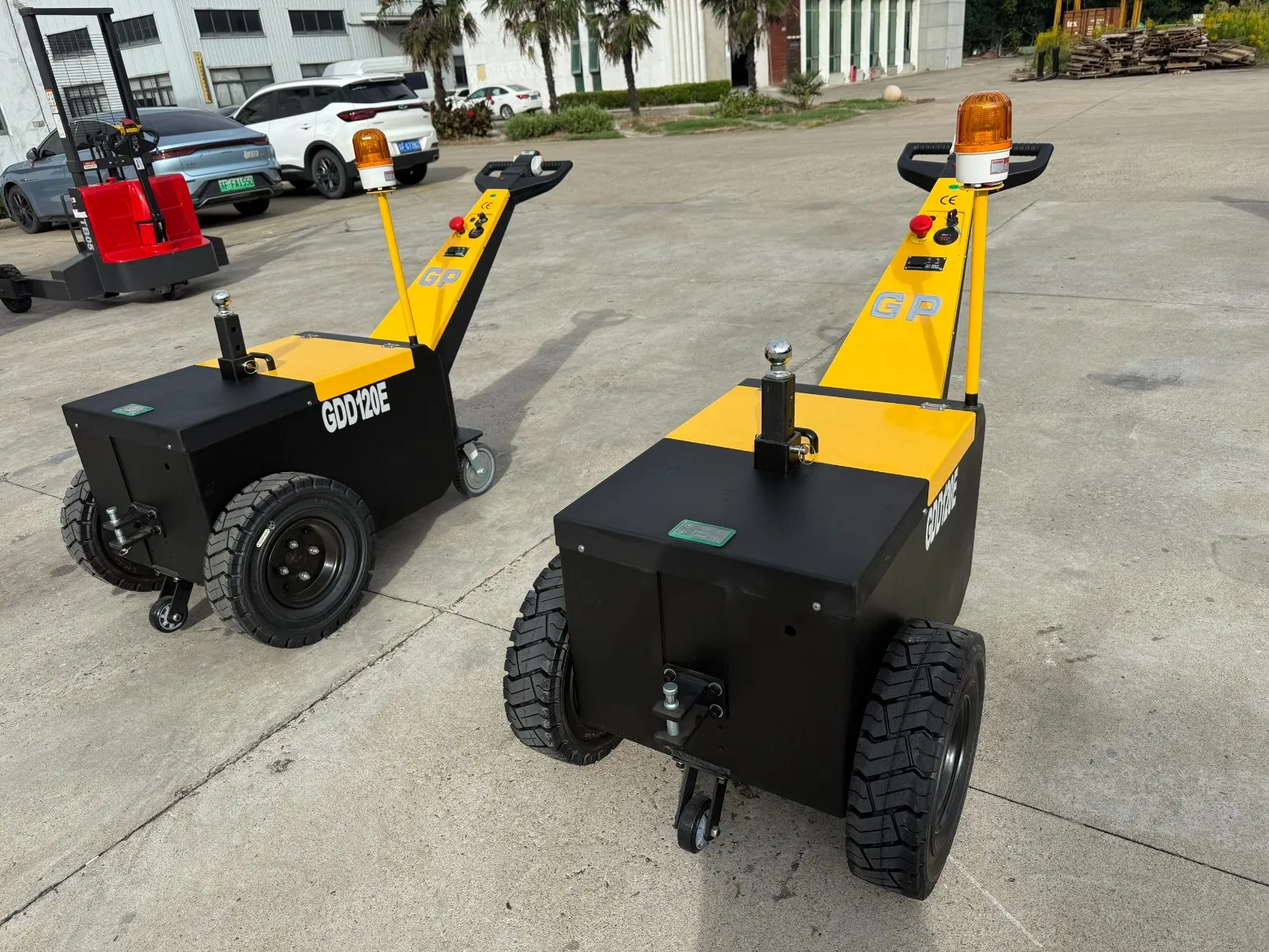

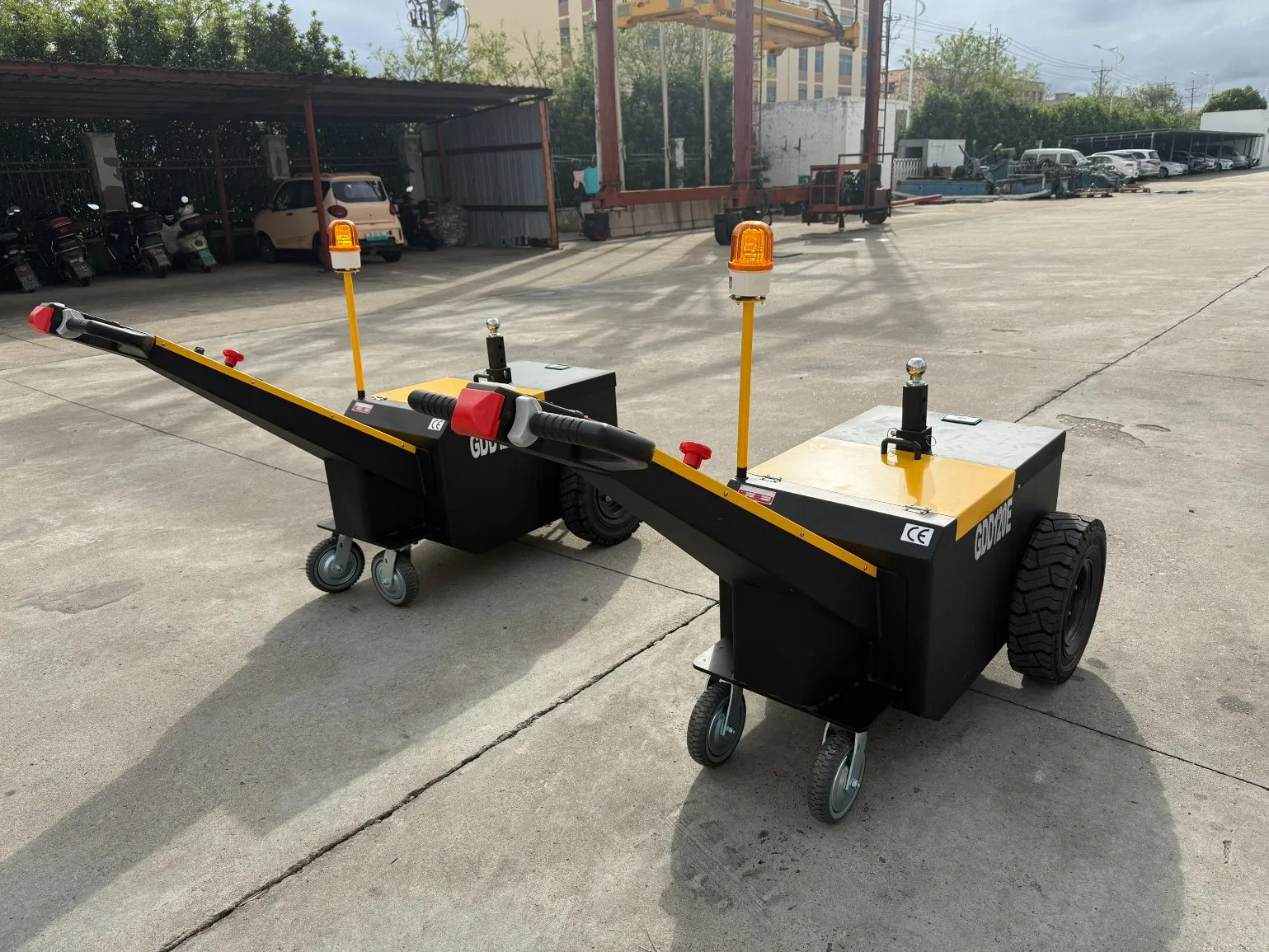

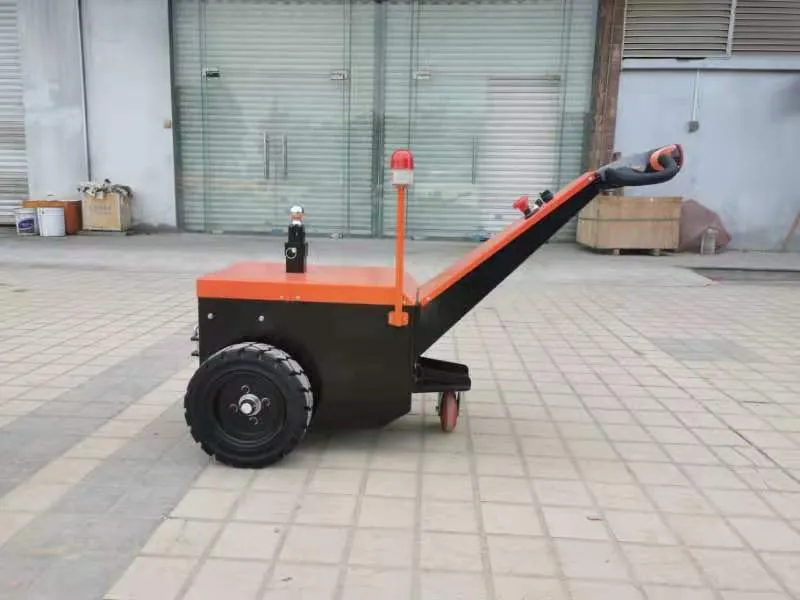

The Hand-Drawn Towing Tractor (also known as Manual Tow Tractor or Pedestrian-Operated Tow Tractor) is a compact, non-powered logistics equipment designed for manually pulling or pushing multiple wheeled loads (e.g., cargo trailers, carts, or dollies) in warehouses, factories, or airports.

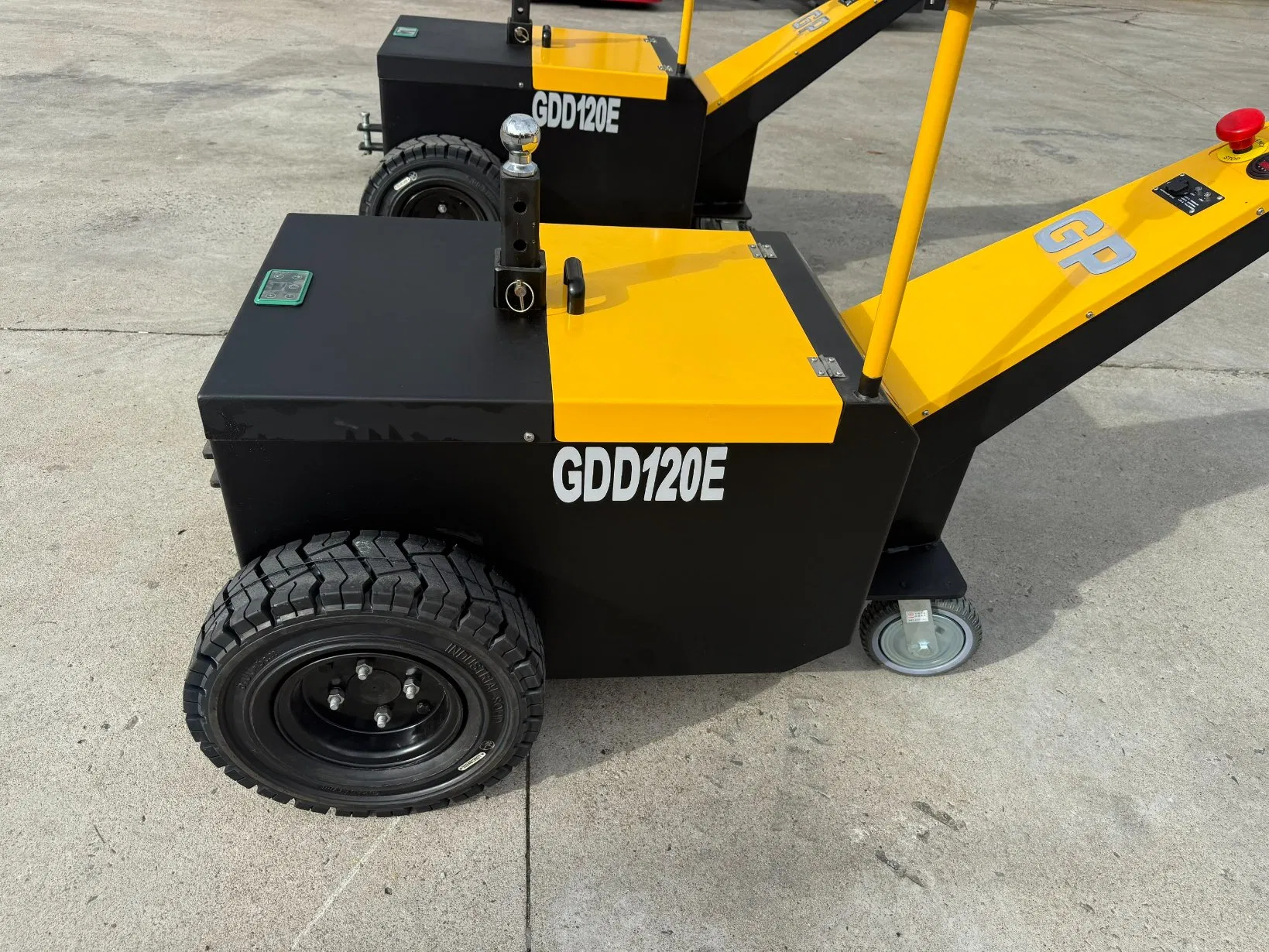

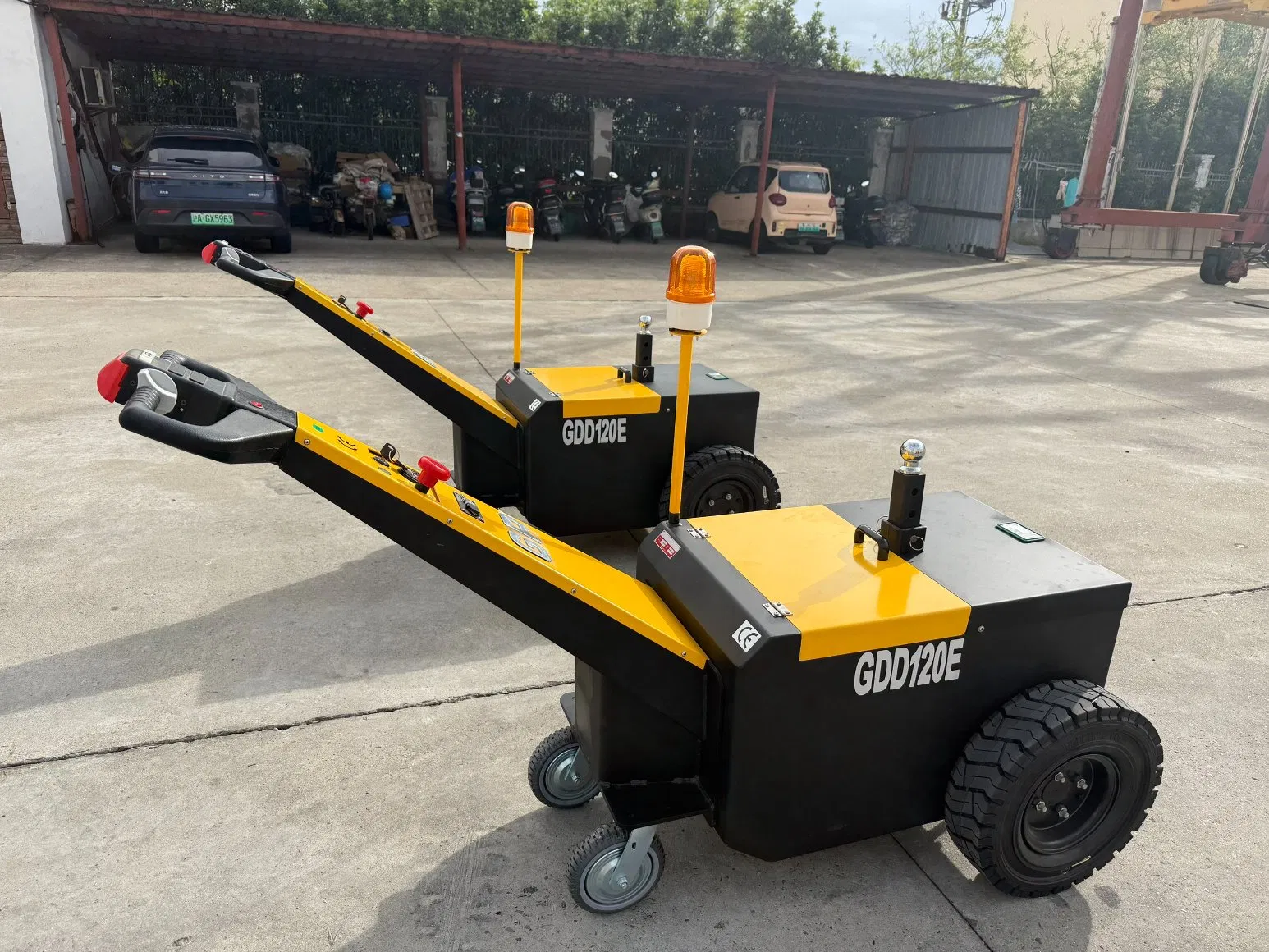

| Parameters | Unit | GDD120E | GDD135E | GDD145E |
|---|---|---|---|---|
| Power Type | - | Electric | Electric | Electric |
| Operation Type | - | Walking | Walking | Walking |
| Load Capacity | kg | 2500 | 3500 | 4500 |
| Rated Traction | N | 600 | 1000 | 1300 |
| Wheelbase | mm | 620 | 620 | 620 |
| Weight (with battery) | kg | 250 | 340 | 380 |
| Tyre Type | - | Solid tyre/PU | Solid tyre/PU | Solid tyre/PU |
| Overall Length | mm | 1595 | 1595 | 1595 |
| Overall Width | mm | 706 | 803 | 803 |
| Turning Radius | mm | 1340 | 1350 | 1350 |
| Walking Speed (Loaded) | km/h | 4~5 | 2.5~3.5 | 2~3 |
| Climbing Ability | % | 10 | 10 | 5 |
| Braking Type | - | Electromagnetic | ||
| Battery | V/Ah | 2x12/73 | 2x12/100 | 24/200 (Lithium) |
| Noise Level | db(A) | <70 | <70 | <70 |
