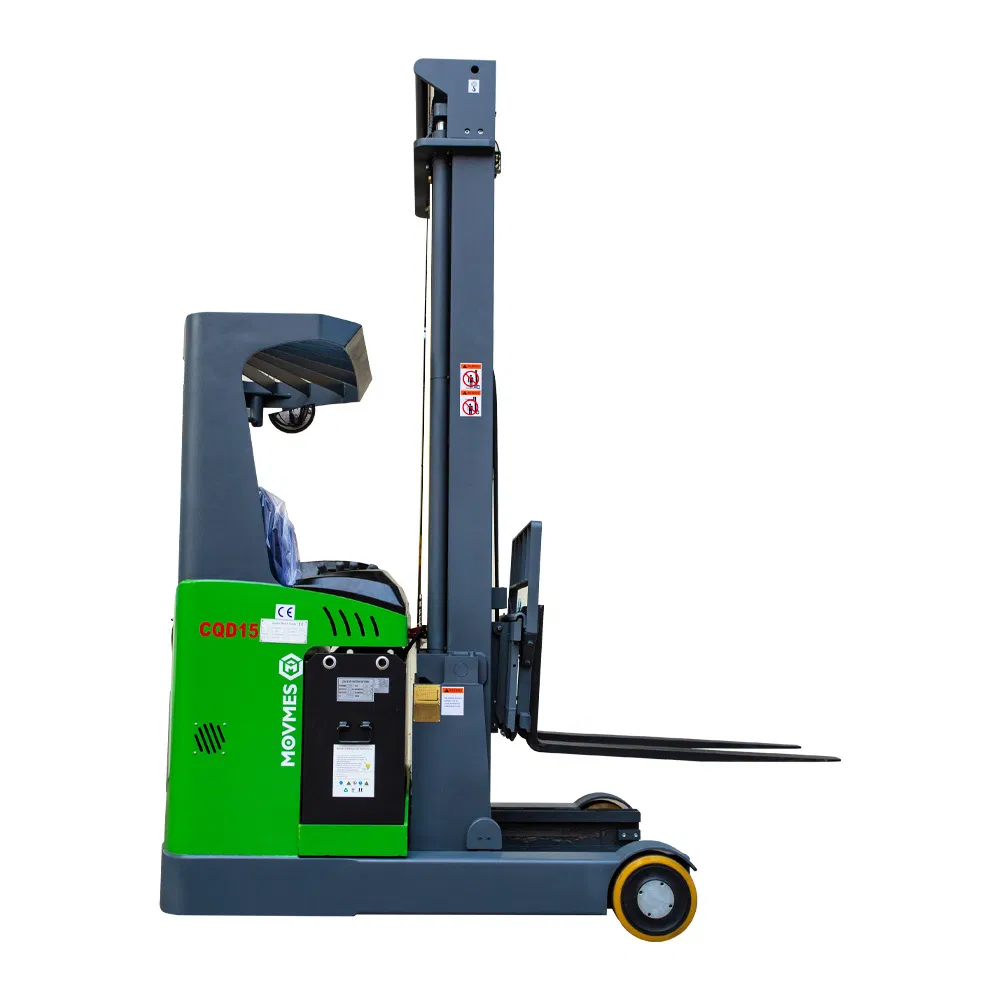

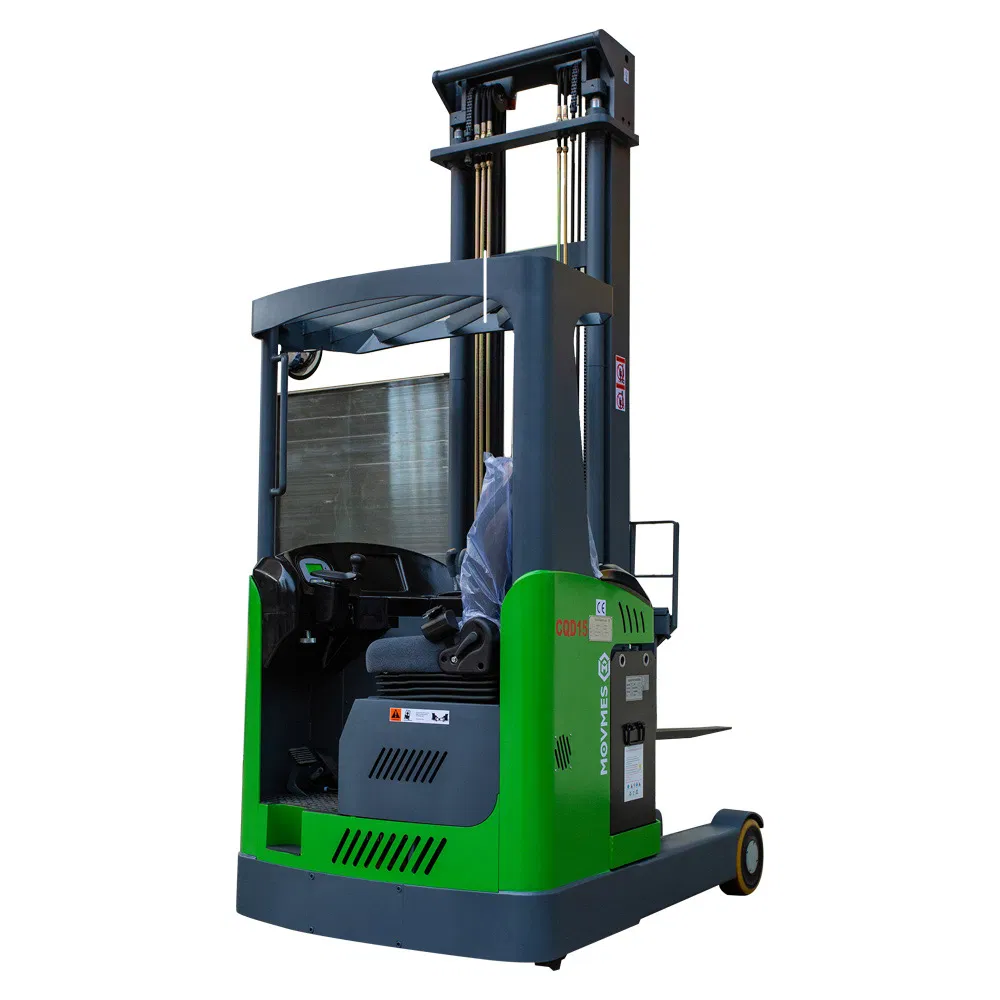

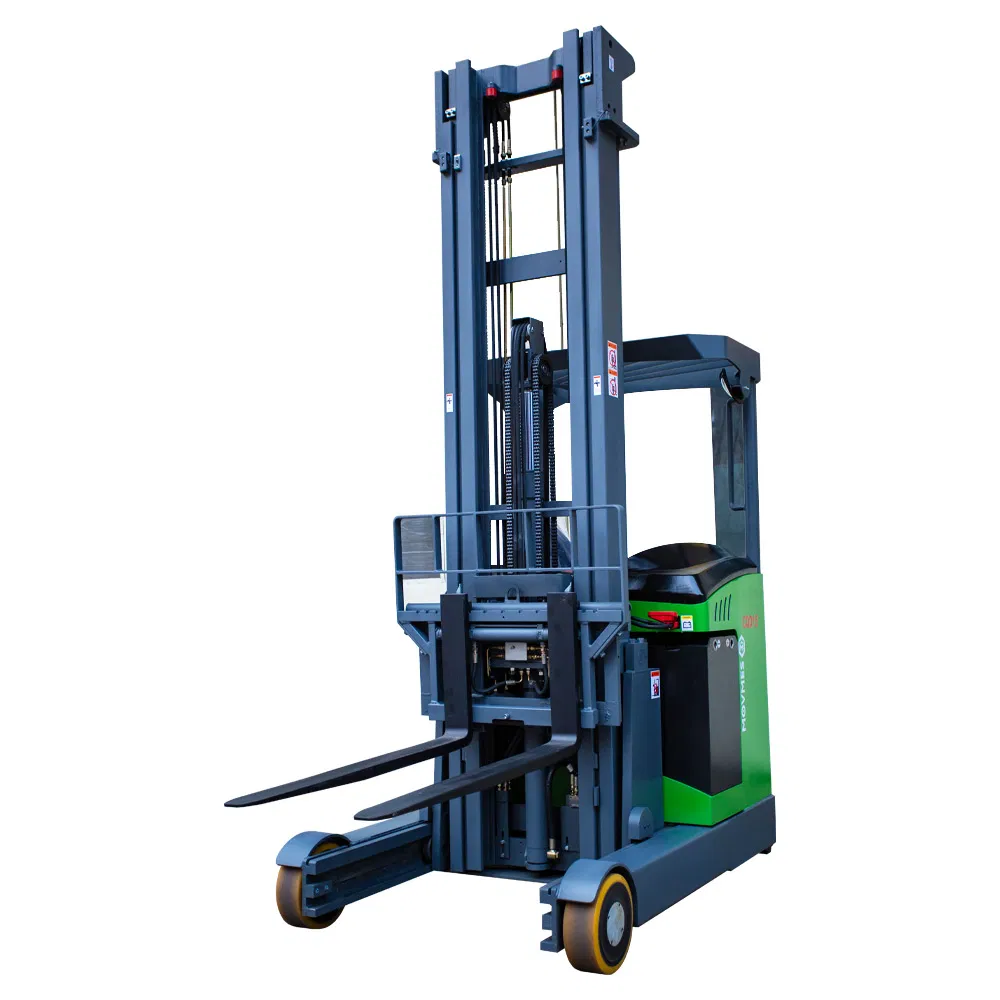

EPS 1500kg 1.5 Ton with 6-8m Lifting Height Counterbalance High Sit Down Hydraulic Electric Reach Stacker for Material Handling/Warehouse/Sales/Lift/Pallet
EPS 1500kg 1.5 Ton with 6-8m Lifting Height Counterbalance High Sit Down Hydraulic Electric Reach Stacker for Material Handling/Warehouse/Sales/Lift/Pallet
EPS 1500kg 1.5 Ton with 6-8m Lifting Height Counterbalance High Sit Down Hydraulic Electric Reach Stacker for Material Handling/Warehouse/Sales/Lift/Pallet
EPS 1500kg 1.5 Ton with 6-8m Lifting Height Counterbalance High Sit Down Hydraulic Electric Reach Stacker for Material Handling/Warehouse/Sales/Lift/Pallet
EPS 1500kg 1.5 Ton with 6-8m Lifting Height Counterbalance High Sit Down Hydraulic Electric Reach Stacker for Material Handling/Warehouse/Sales/Lift/Pallet
1 / 5
EPS 1500kg 1.5 Ton with 6-8m Lifting Height Counterbalance High Sit Down Hydraulic Electric Reach Stacker for Material Handling/Warehouse/Sales/Lift/Pallet
EPS 1500kg 1.5 Ton with 6-8m Lifting Height Counterbalance High Sit Down Hydraulic Electric Reach Stacker for Material Handling/Warehouse/Sales/Lift/Pallet
EPS 1500kg 1.5 Ton with 6-8m Lifting Height Counterbalance High Sit Down Hydraulic Electric Reach Stacker for Material Handling/Warehouse/Sales/Lift/Pallet
EPS 1500kg 1.5 Ton with 6-8m Lifting Height Counterbalance High Sit Down Hydraulic Electric Reach Stacker for Material Handling/Warehouse/Sales/Lift/Pallet
EPS 1500kg 1.5 Ton with 6-8m Lifting Height Counterbalance High Sit Down Hydraulic Electric Reach Stacker for Material Handling/Warehouse/Sales/Lift/Pallet

EPS 1500kg 1.5 Ton with 6-8m Lifting Height Counterbalance High Sit Down Hydraulic Electric Reach Stacker for Material Handling/Warehouse/Sales/Lift/Pallet

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
CQD15
Type
Reach Forklift
Power
AC Motor
Load Capacity
1.5 Ton (1500 Kg)
Fuel
Electric
Lift Height
3000 to 8000 mm
Load Center
600 mm
Turning Radius
1780 mm
Battery
48V / 400Ah
Condition
New
Main Configuration
  • 48V AC Power System
  • CURTIS Controller
  • 4 Levels Hydraulic Control
  • 48V 400Ah Lead-Acid Battery
  • 48V 50A Charger
  • Side Shift Function
  • Electronic Power Steering (EPS)

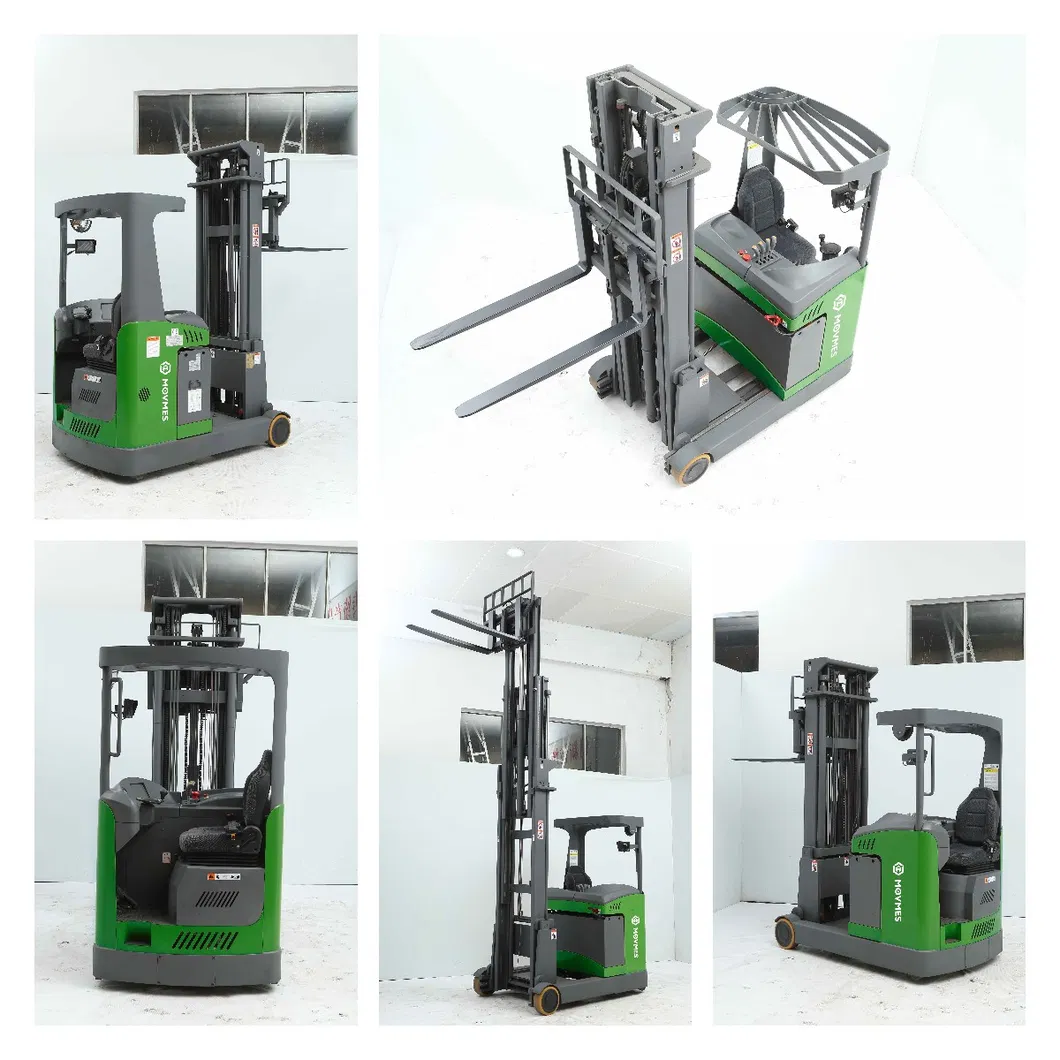

Electric Reach Stacker

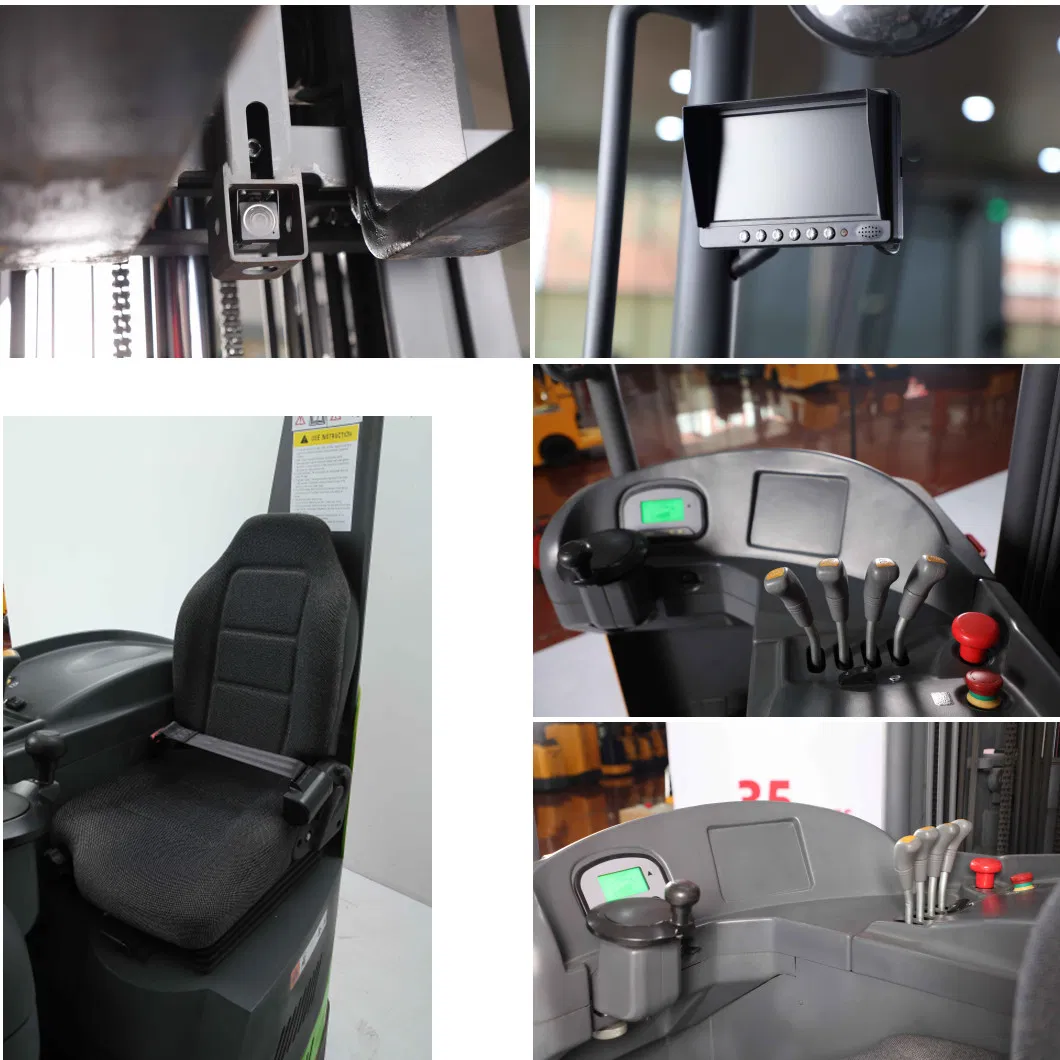

Reach Forklift Operation
Product Description & Advantages

The CQD15(EPS) reach truck is an innovative solution based on heavy-duty chassis design, providing an extra-large compartment and unequalled visibility. It excels in larger load capacities at high reach elevations. The compact cabin design is ideal for drive-in racking, allowing operators to work more effectively.

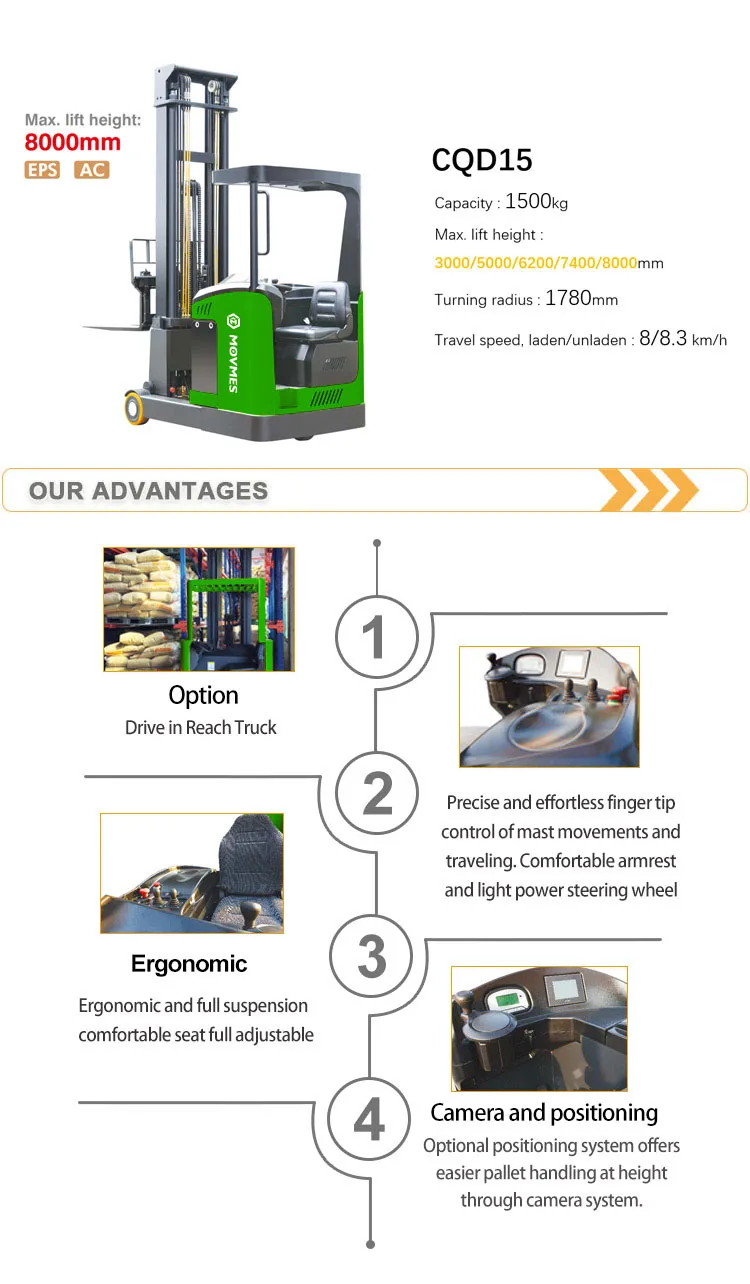

Technical Specifications Chart

Standard Features:

  • AC Control System
  • Power Steering System (EPS)
  • Multi-function display: brake status, driving direction, hour meter, speed, fault codes.
  • German brand gear box
  • Adjustable steering wheel and speed limits for high-level lifting
  • Electronic height limited device
Detailed Technical Parameters
Description Unit Specification
Model-CQD15
Capacity/Rated LoadQ(kg)1500
Max. Lift Heighth3(mm)3000/5000/6200/7400/8000
Free Lifth2(mm)0/1700/2100/2500/2700
Overall LengthI1(mm)2370
Overall Widthb1(mm)1200
Travel Speed (Laden/Unladen)Km/h8/8.3
Lift Speed (Laden/Unladen)M/s0.45/0.36
Battery Voltage/CapacityV/Ah48/400
Service Weightkg2900 - 3300

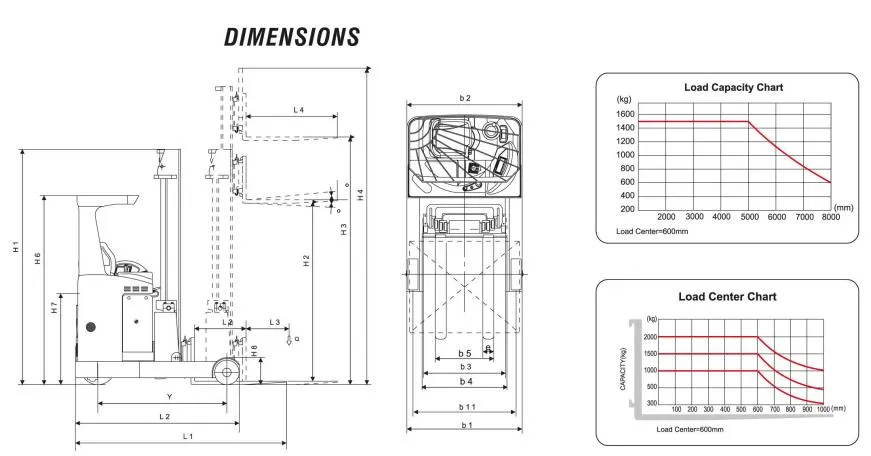

Chassis View

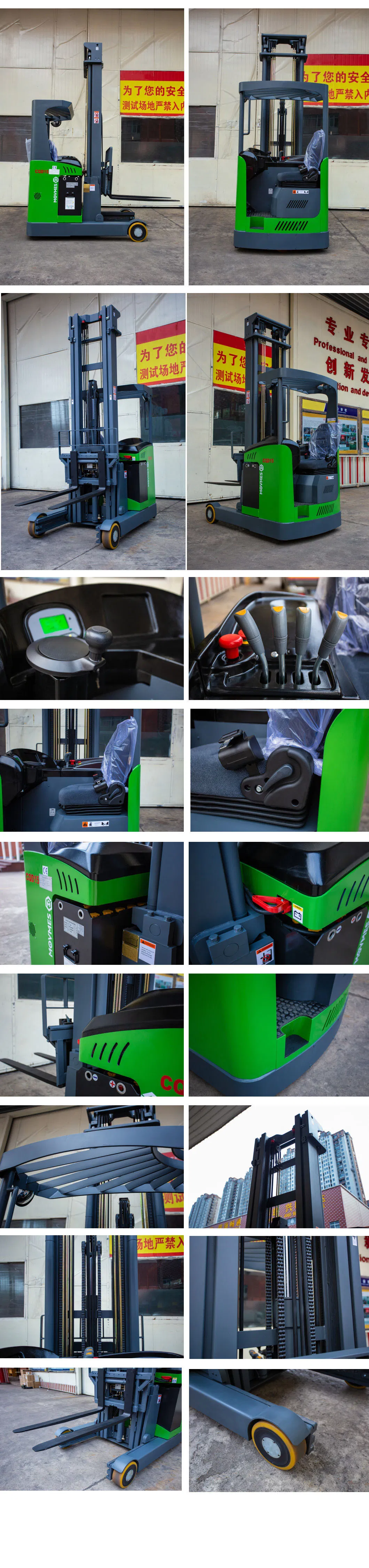

Component Details
Quality & Testing System

Every truck undergoes a total of five rigorous test items before delivery:

  1. Strengthening test detection
  2. Stability detection
  3. Climbing performance and current detection
  4. Braking performance debugging and testing
  5. Technical parameters verification
Certification
Other Popular Models
Rider Electric Pallet Truck

CBD20R-II 2.0T Rider Pallet Truck

Electric Stacker

CDD10R-E 1.0T Electric Stacker

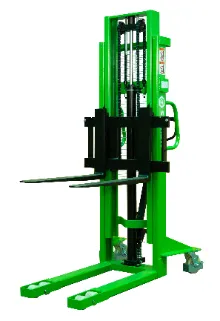

Manual Stacker

SDJA 1000 Manual Stacker

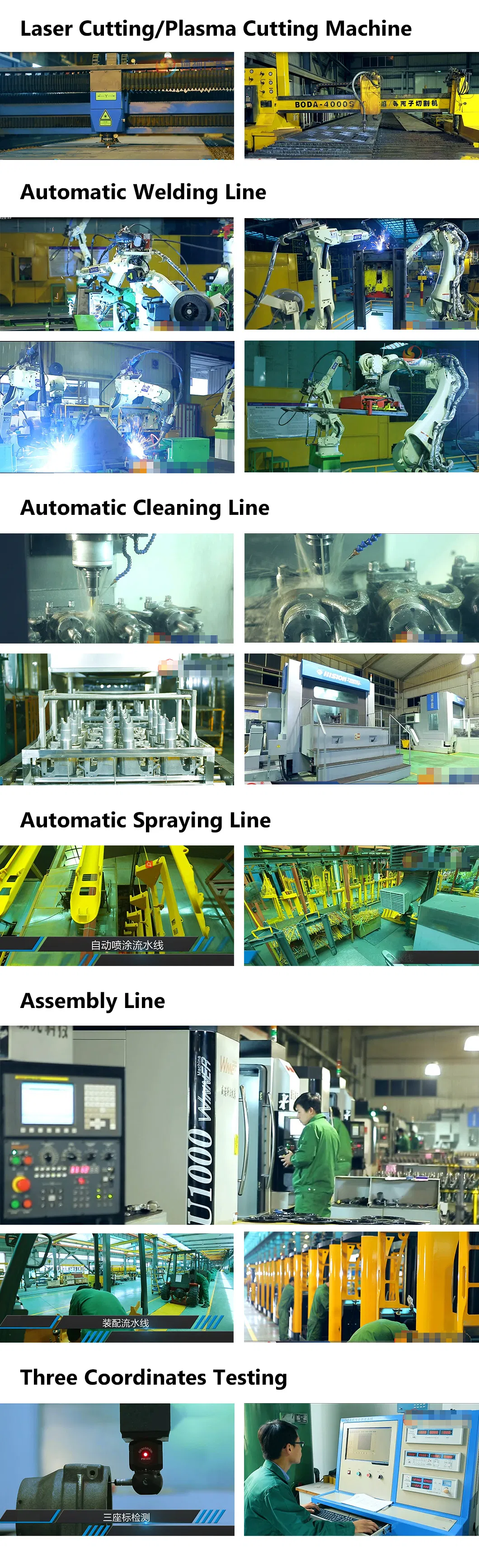

Factory Overview
Frequently Asked Questions
How long is the continuous working time for the electric truck?
The continuous working time is approximately 3-6 hours, depending on the battery volume and intensity of use.
How long does it take to charge the battery fully?
Typically, it takes between 3 to 6 hours to achieve a full charge for the 48V/400Ah battery system.
What are the specifications for the battery chargers?
We provide 24V/48V chargers with power plugs compatible with USA, UK, Australia, or European standards. The side-way battery system allows for easy replacement.
Can you provide customized, OEM, or ODM products?
Yes, we have extensive experience in developing and producing customized warehouse equipment and have provided OEM services for many major global brands since 1985.
What is the warranty period for this reach forklift?
We provide a one-year warranty. During this period, wearing parts damaged by non-human factors are provided free of charge.
What are the available lifting height options for the CQD15?
The CQD15 model supports multiple mast configurations with maximum lift heights of 3000mm, 5000mm, 6200mm, 7400mm, and up to 8000mm.
